Symbologies

284 Gryphon™ I GD4100/GM4100

Code IATA

The following options apply to the IATA symbology.

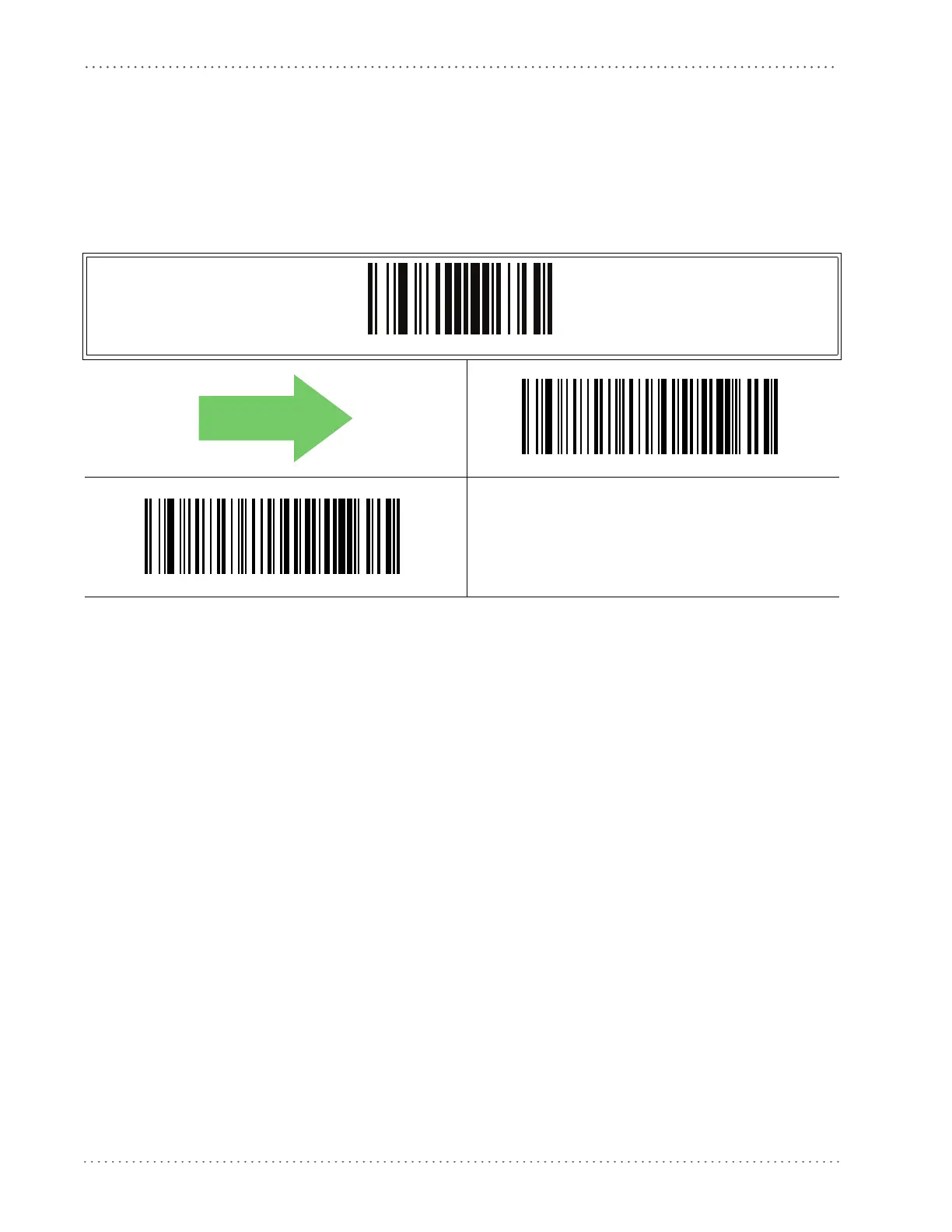

IATA Enable/Disable

Enables/Disables the ability of the reader to decode IATA labels.

ENTER/EXIT PROGRAMMING MODE

IATA = Disable

IATA = Enable

DEFAULT
