EAN 8 (Jan 8)

Product Reference Guide 191

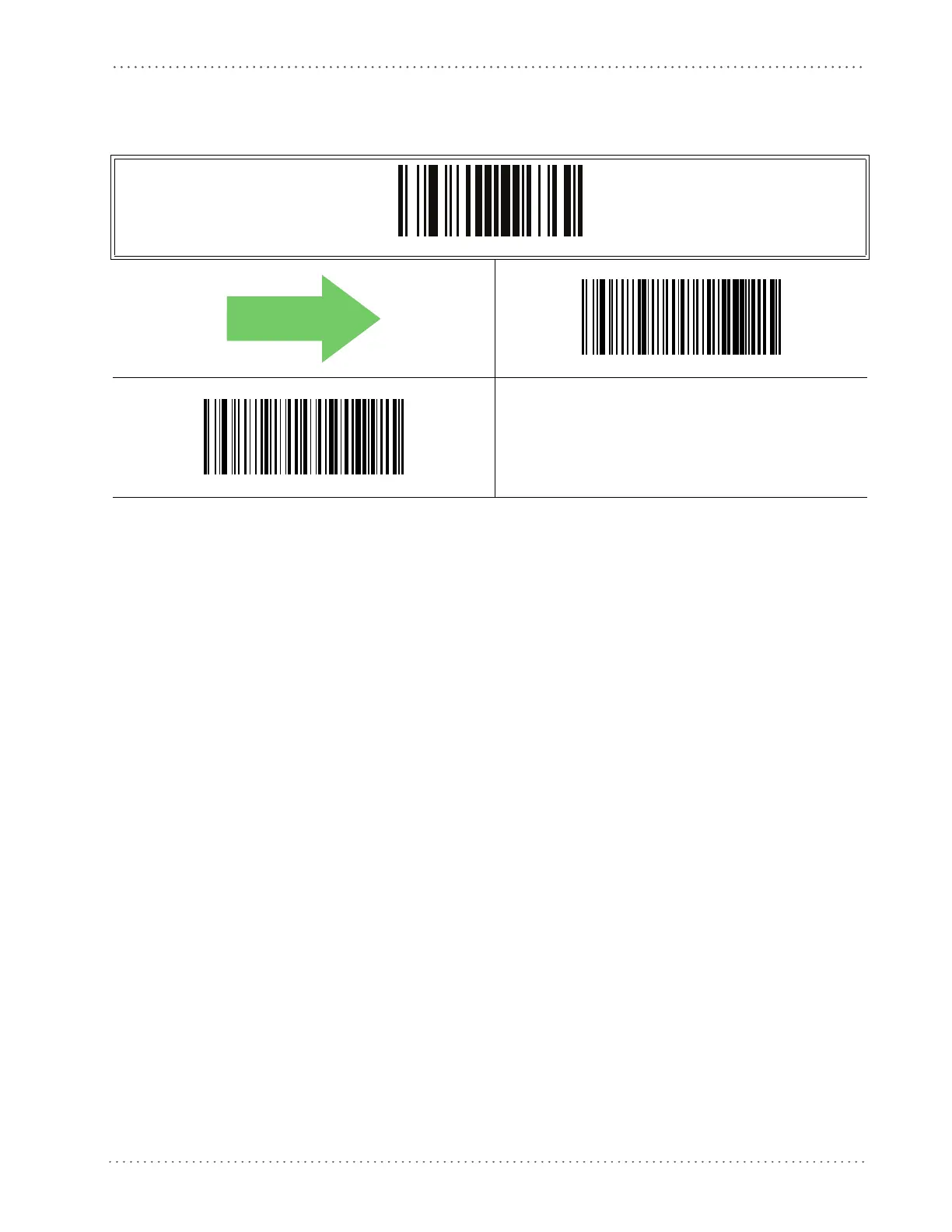

Expand EAN 8 to EAN 13

Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13.

ENTER/EXIT PROGRAMMING MODE

Expand EAN 8 to EAN 13 = Disable

Expand EAN 8 to EAN 13 = Enable

DEFAULT
