Symbologies

294 Gryphon™ I GD4100/GM4100

Codabar

The following options apply to the Codabar symbology.

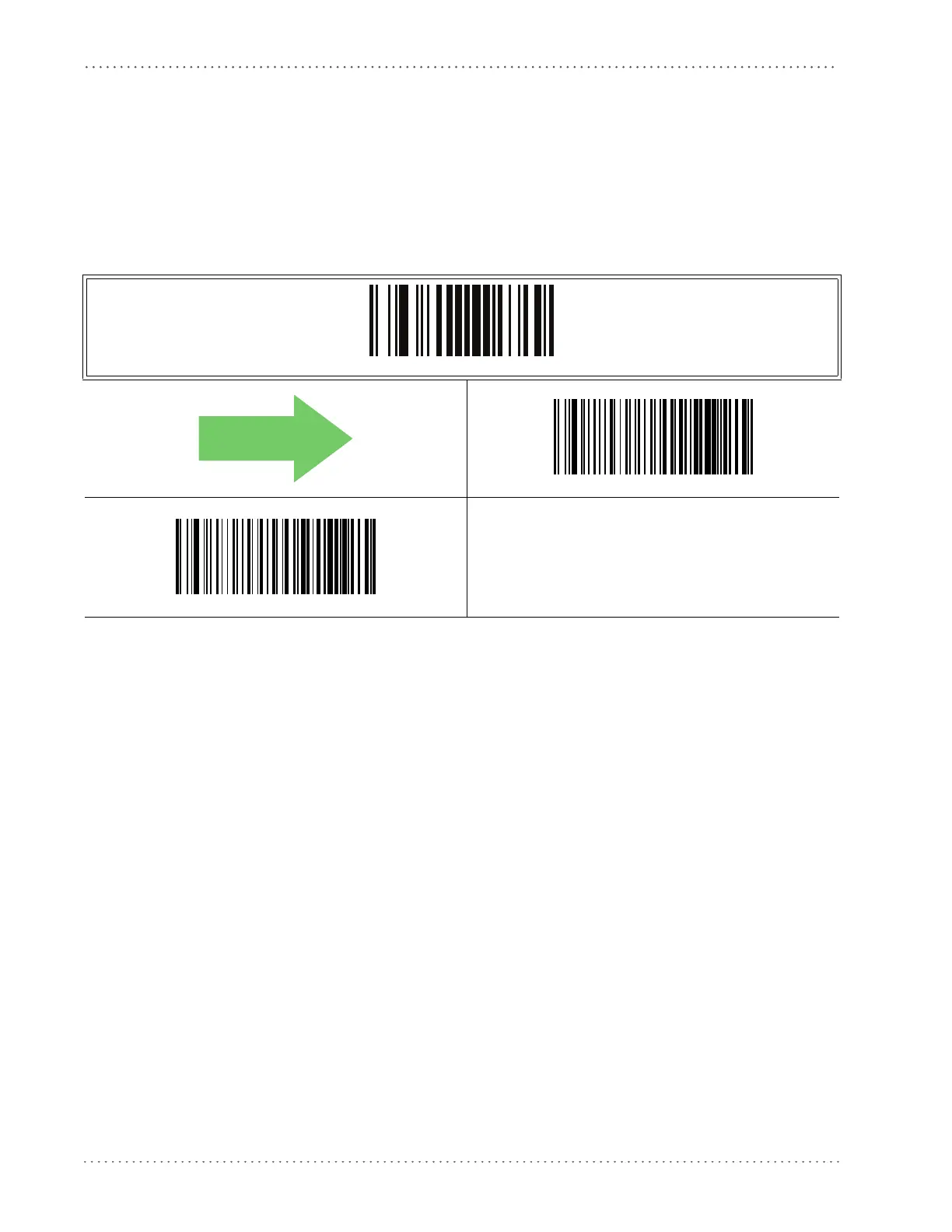

Codabar Enable/Disable

When disabled, the reader will not read Codabar barcodes.

ENTER/EXIT PROGRAMMING MODE

Codabar = Disable

Codabar = Enable

DEFAULT
