Install the Interface Cable
Product Reference Guide 17
6. Insert the cover in the handle and screw it back into place.
Install the Interface Cable
For Corded versions, connect the reader cable by inserting the cable into the handle as shown in
Figure 1. To remove it, insert a paper clip into the rele
ase aperture, then unplug the cable.

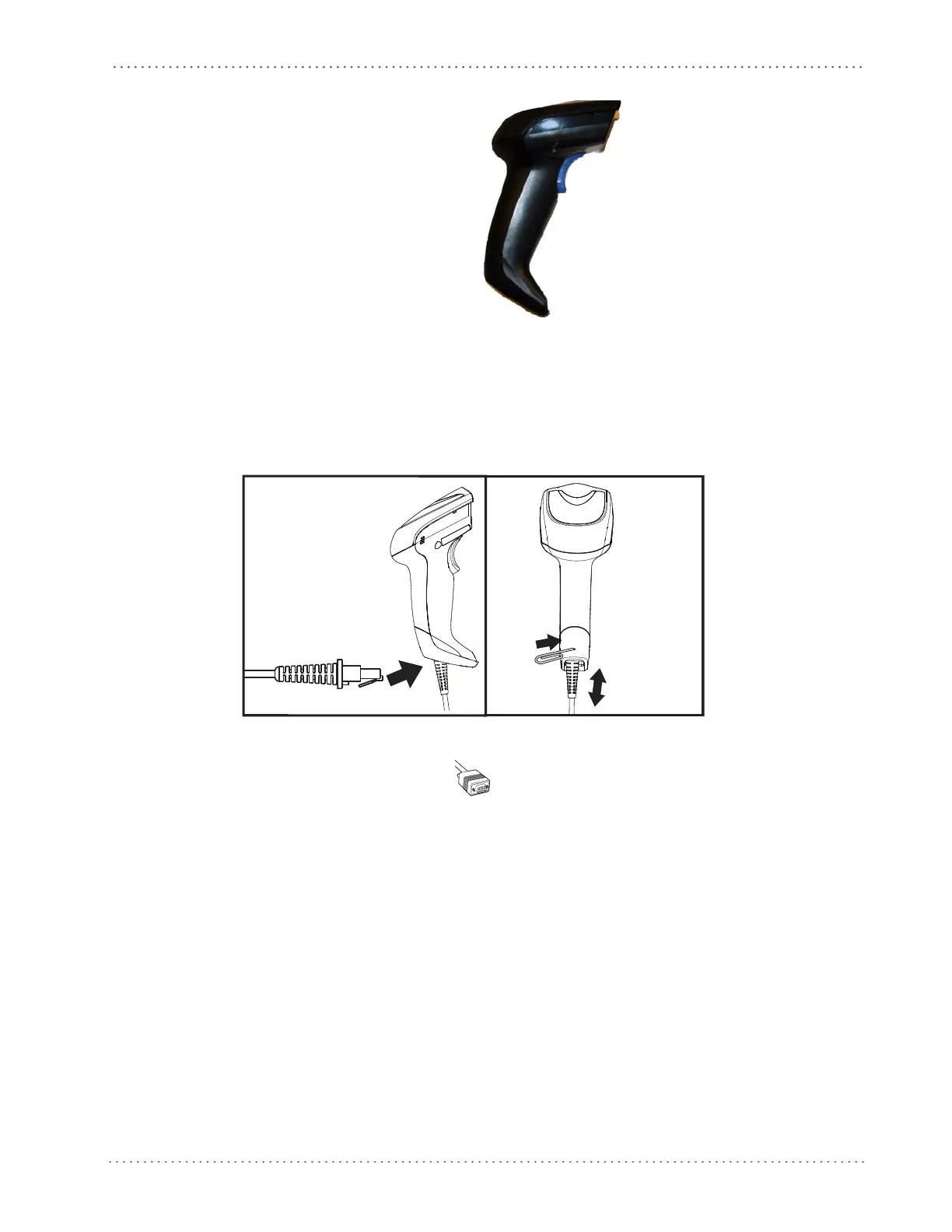

Figure 1. Connect/disconnect the cable
RS-232 Serial Connection
Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the
RS-232 cable as shown in Figure 2. If the terminal will not support POT (Power Off the
Terminal) to supply reader power, use the approved power supply (AC Adapter). Plug the AC
Adapter barrel connector into th
e socket on the RS-232 cable connector and the AC Adapter
plug into a standard power outlet.
