Label ID
Product Reference Guide 135
Label ID
A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-
0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following
the transmitted barcode data depending upon how this option is enabled. This feature provides
options for configuring custom Label IDs as a pre-loaded set (see "Label ID: Pre-loaded Sets"
below) or individually per symbology (see "Label ID: Set Individually Per Symbology"on
page 137). If you wish to program the reader to always include an industry standard label
identifier
for ALL symbology types, see the previous feature "Global AIM ID"on page 132.

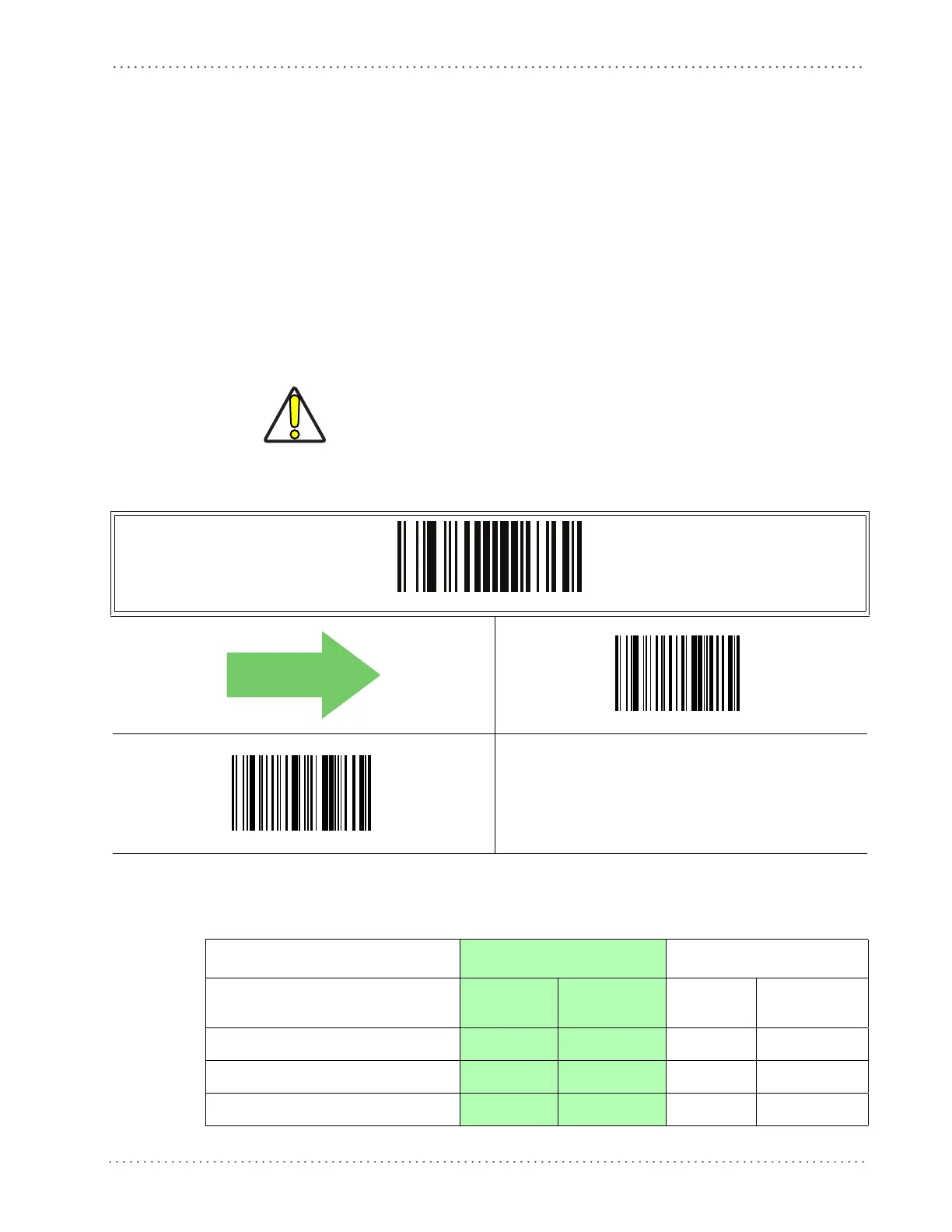

Label ID: Pre-loaded Sets
The reader supports two pre-loaded sets of Label IDs. Table 17 shows the USA set and the EU
set.
CAUTION
ENTER/EXIT PROGRAMMING MODE
Label ID Pre-loaded Set = USA Set
Label ID Pre-loaded Set = EU Set
Table 17. Label ID Pre-loaded Sets
When changing from one Label ID set to another, all other reader
configuration settings, including the host interface type, will be
erased and set to the standard factory defaults. Any custom config-
uration or custom defaults will be lost.
DEFAULT
Symbology USA Label ID set EU Label ID set
ASCII
character
Hexidecimal
value
ASCII
character
Hexidecimal
value
ABC Codabar
S 530000 S 530000
Anker Plessey
o 6F0000 o 6F0000
CODABAR
% 250000 R 520000
