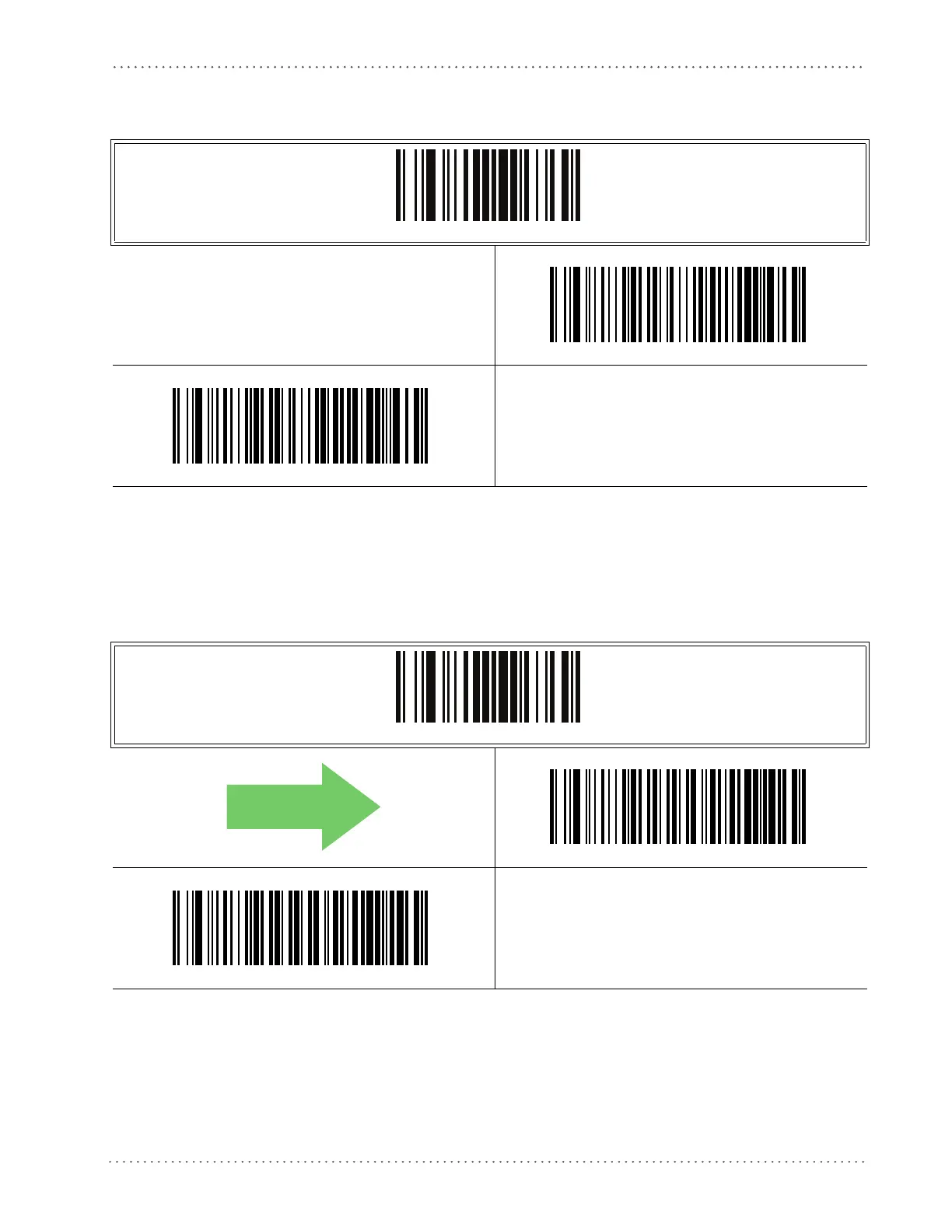

MSI

Product Reference Guide 359

MSI Stitching

Enables/disables fixed length stitching for MSI.

ENTER/EXIT PROGRAMMING MODE

MSI Stitching = Disable

MSI Stitching = Enable

MSI Decoding Level — cont.



ENTER/EXIT PROGRAMMING MODE

MSI Decoding Level = 4

MSI Decoding Level = 5

DEFAULT

Default Chapter3
