Code 4

Product Reference Guide 373

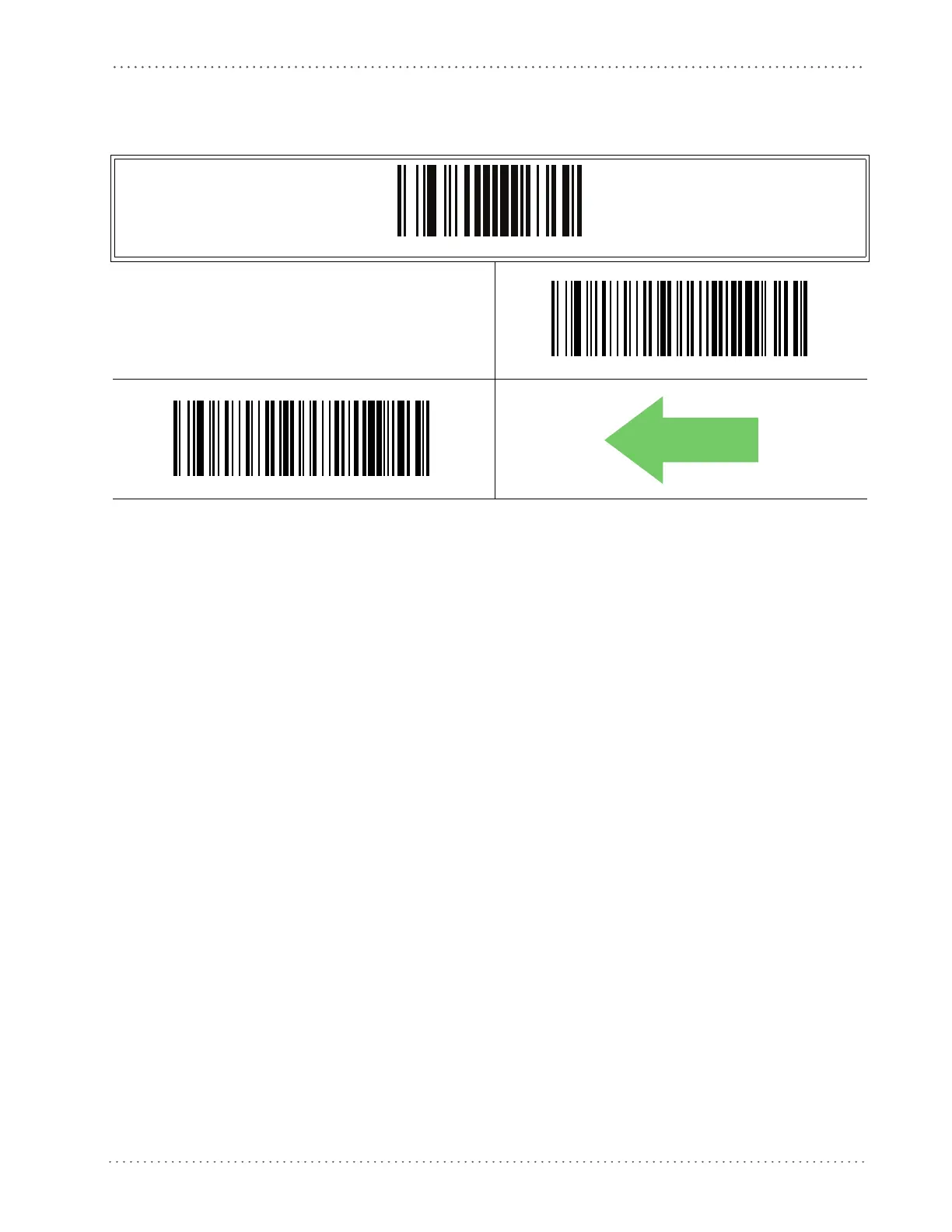

Code 4 Hex to Decimal Conversion

This feature enables/disables the conversion of hexidecimal label data to decimal label data.

ENTER/EXIT PROGRAMMING MODE

Code 4 Hex to Decimal Conversion = Disable

Code 4 Hex to Decimal Conversion = Enable

DEFAULT
