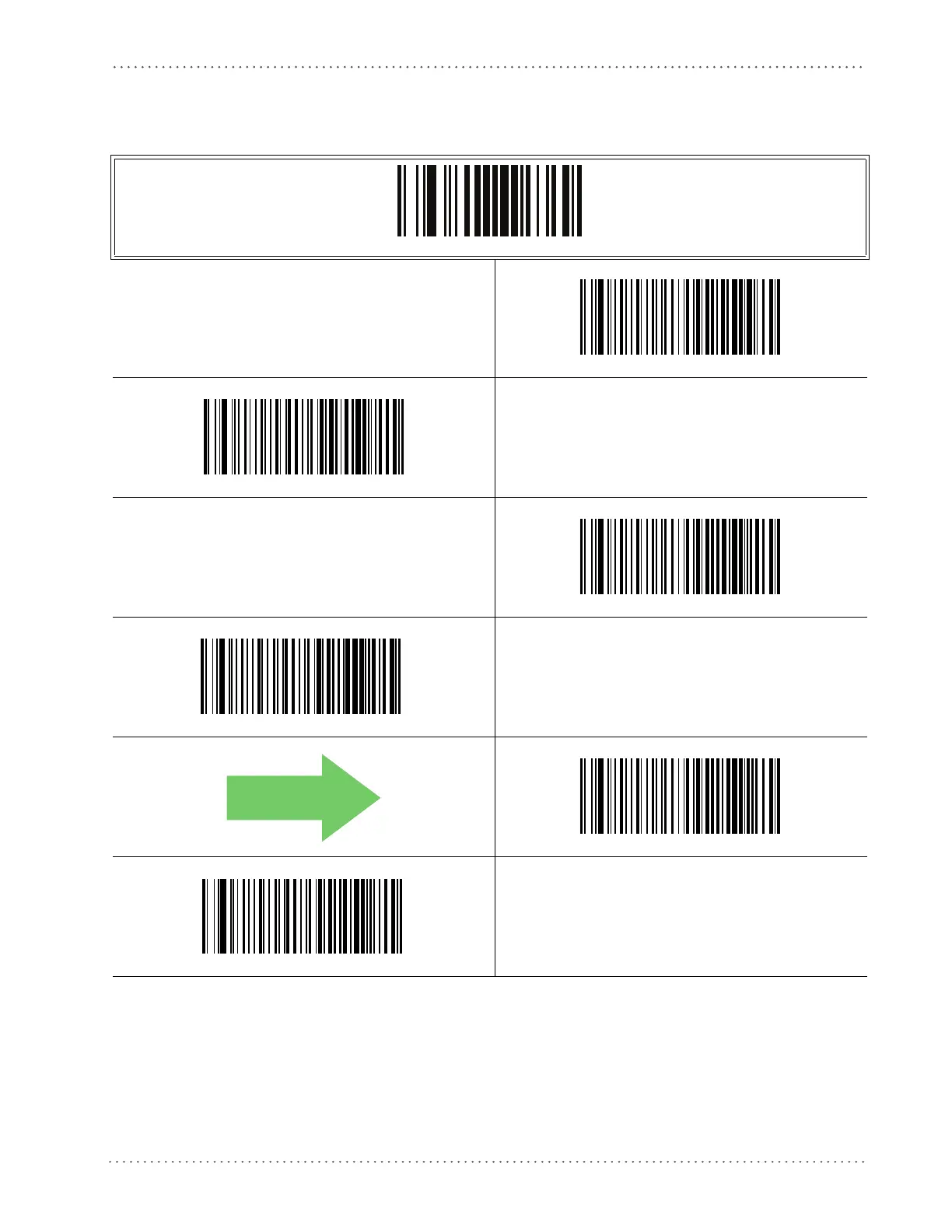

Codabar

Product Reference Guide 307

Codabar Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for Codabar labels.

ENTER/EXIT PROGRAMMING MODE

Codabar Interdigit Ratio = Disable

Codabar Interdigit Ratio = 1

Codabar Interdigit Ratio = 2

Codabar Interdigit Ratio = 3

Codabar Interdigit Ratio = 4

Codabar Interdigit Ratio = 5

DEFAULT
