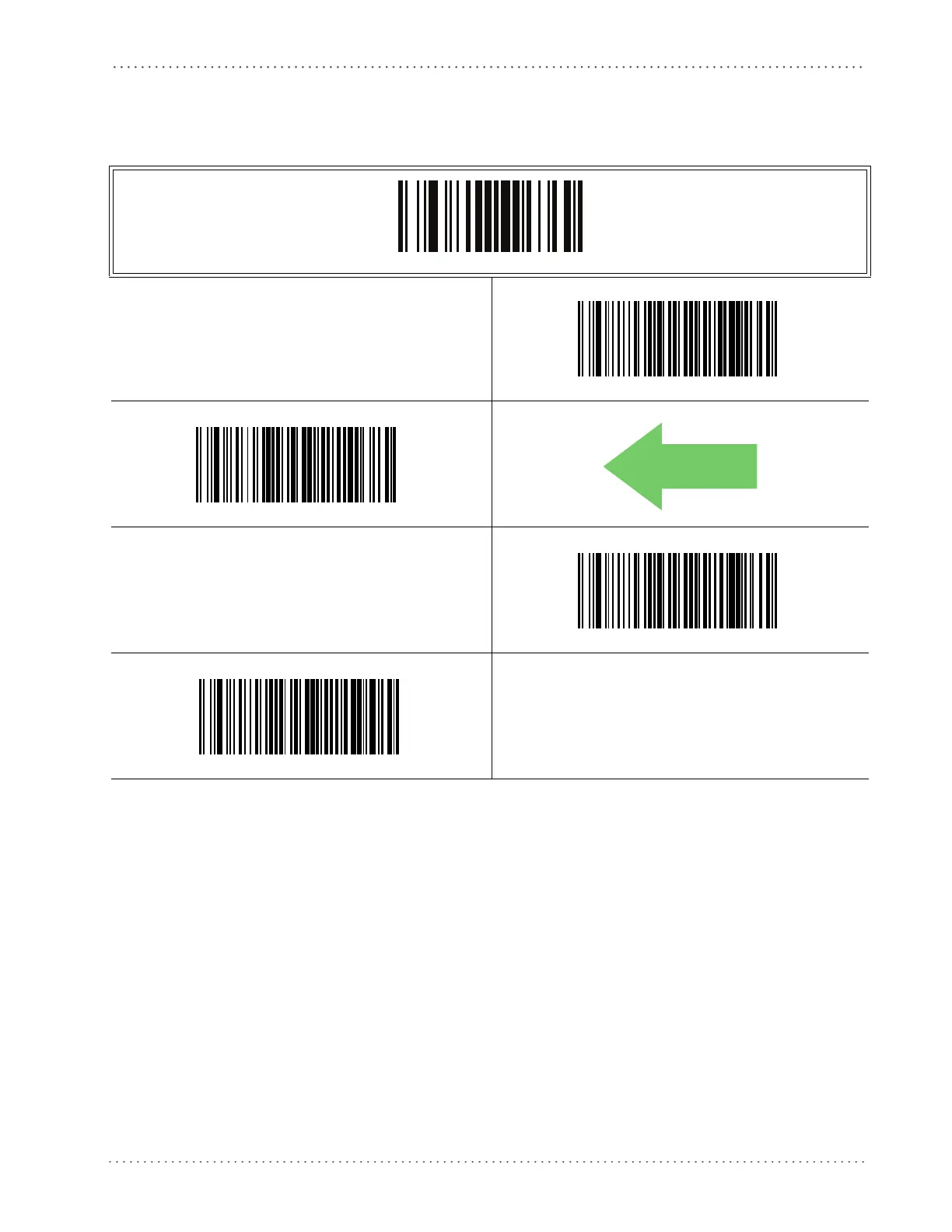

Green Spot Duration

Product Reference Guide 59

Green Spot Duration

Specifies the duration of the good read pointer beam after a good read.

ENTER/EXIT PROGRAMMING MODE

Green Spot Duration = Disable (Green Spot is Off)

Green Spot Duration = Short (300 msec)

Green Spot Duration = Medium (500 msec)

Green Spot Duration = Long (800 msec)

DEFAULT
