Symbologies

178 Gryphon™ I GD4100/GM4100

UPC-A

The following options apply to the UPC-A symbology.

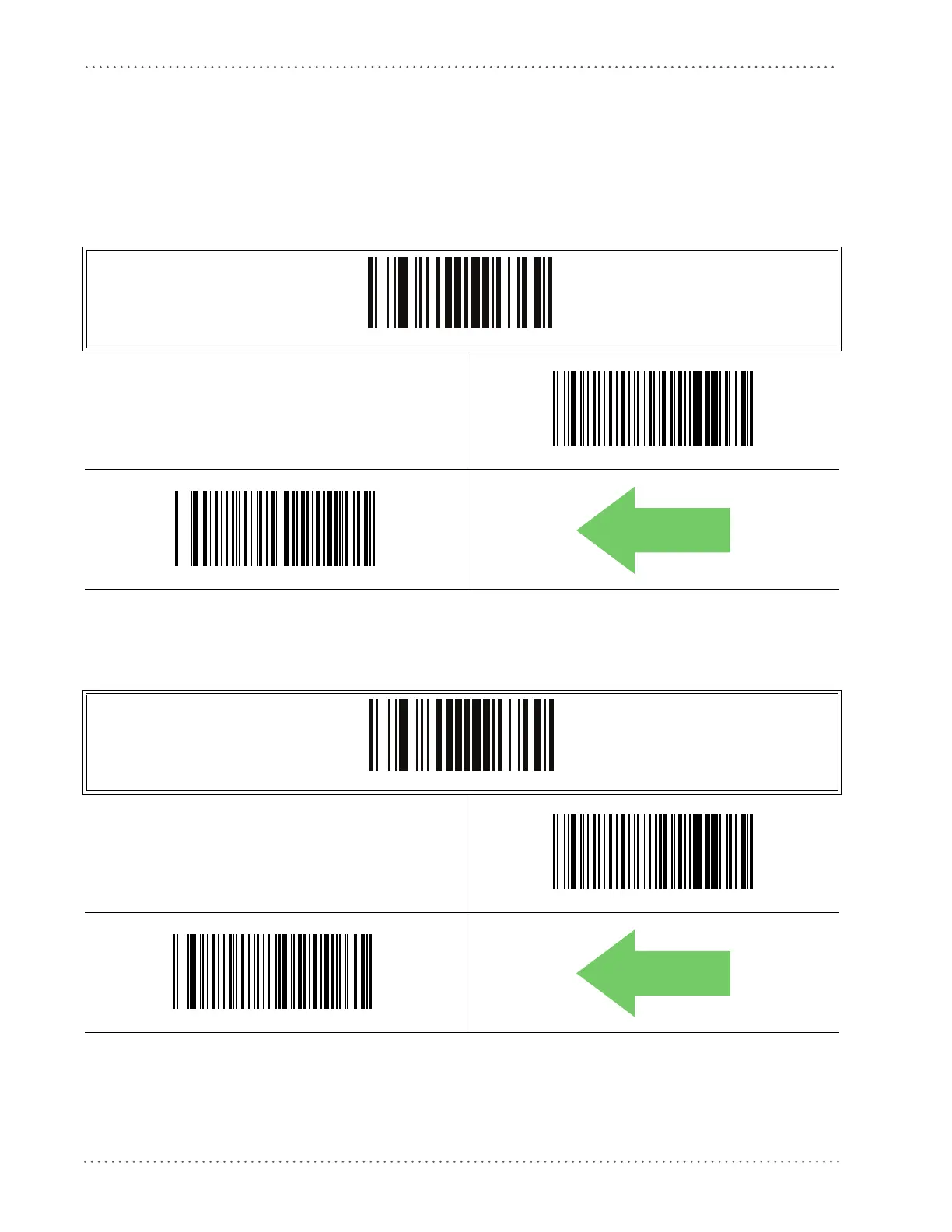

UPC-A Enable/Disable

When disabled, the reader will not read UPC-A barcodes.

ENTER/EXIT PROGRAMMING MODE

UPC-A = Disable

UPC-A = Enable

UPC-A Check Character Transmission

Enable this option to transmit the check character along with UPC-A barcode data.

ENTER/EXIT PROGRAMMING MODE

UPC-A Check Character Transmission = Don’t Send

UPC-A Check Character Transmission = Send

DEFAULT

Default Chapter3
