Getting Started
22 Gryphon™ I GD4100/GM4100
Connect the Base Station
Figure 6 shows how to connect the Base Station to a terminal, PC or other host device. Turn off
the host before connection and consult the manual for that equipment (if necessary) before
proceeding.
Connect the interface cable before applying power to the Base Station.
NOTE
Base Station Connection and Routing.
Fully insert the Power Cable and Interface (I/F) Cable
connectors into their respective ports in the underside of the Base Station (see Figure 6). Then
connect to an AC Adapter, and plug the AC power cord into the (wall) outlet.

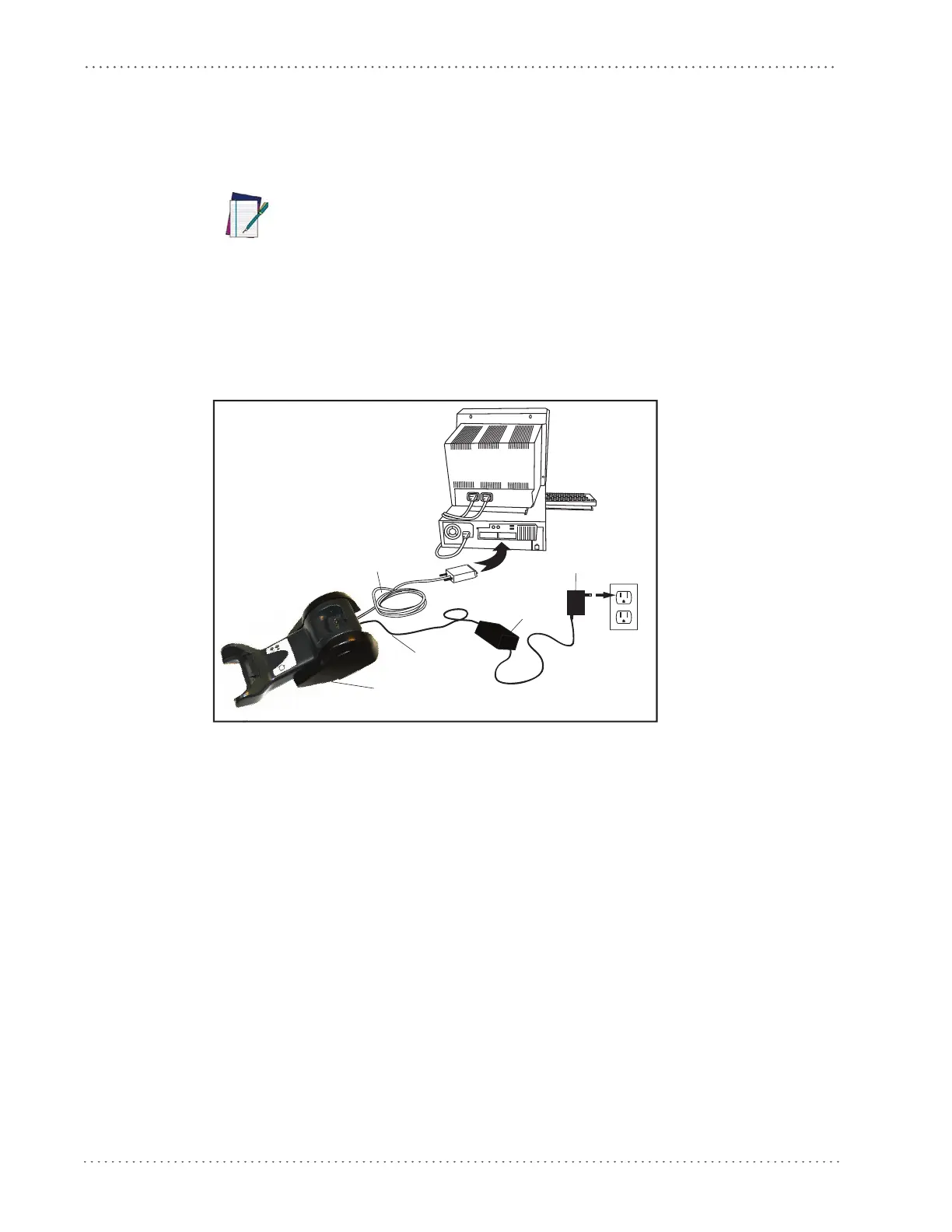

Figure 6. Connecting the Base Station
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bottom of the base in order to
maximize the mechanical retention of the cable itself. The routing of the power cord can be
changed to accommodate the base station positioning: horizontal, stand or wall mounting. The
cables can be looped around to the front of the Base Station, or fed directly out the back of the
Base Station, as shown in Figure 7 on page 23.
Gryphon Mobile can also be Powered by the Terminal. The external power supply is
recommended but not necessary. When powered by the Terminal, the battery char-
ger is automatically set as Slow charge.
