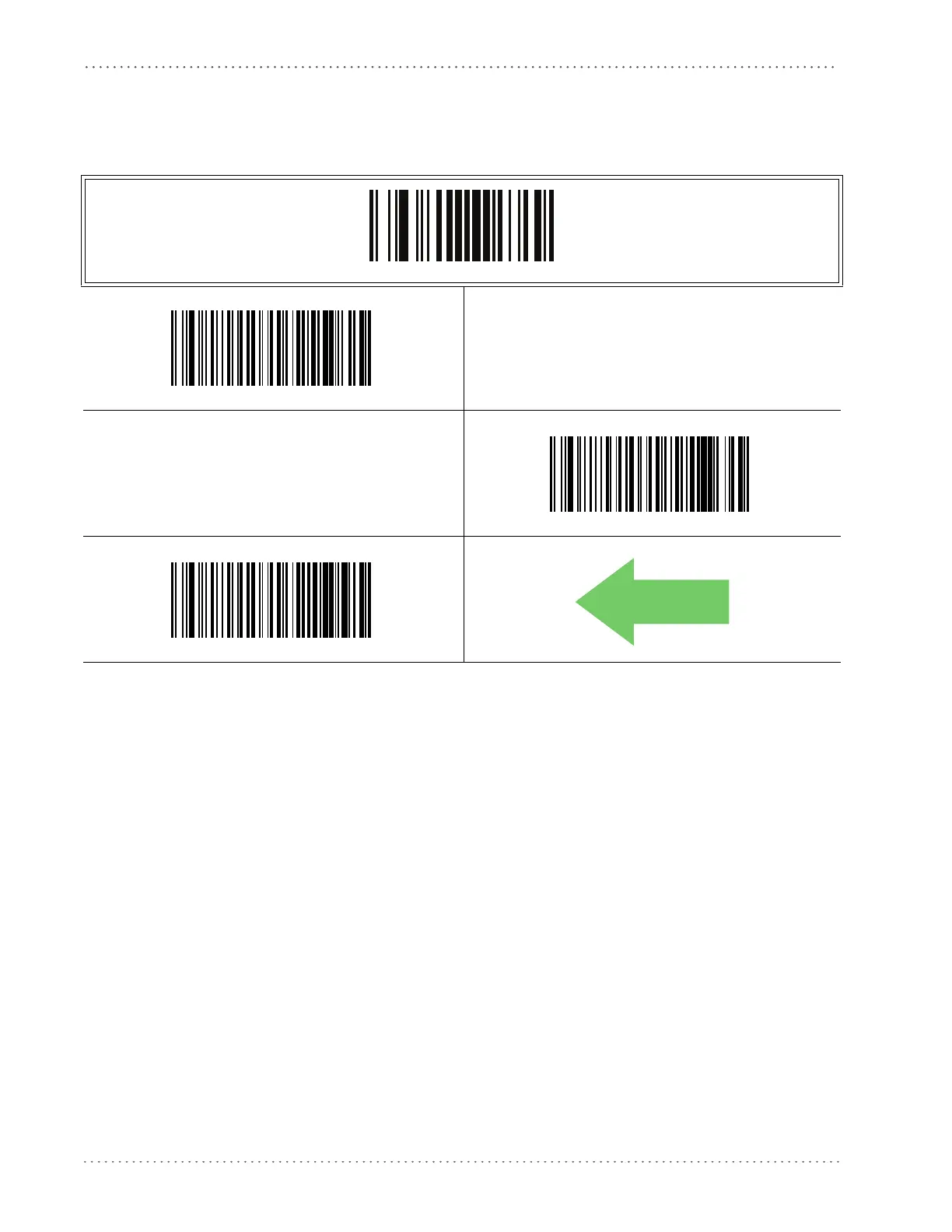

RF Features

158 Gryphon™ I GD4100/GM4100

Beep Volume

Selects the beeper volume (loudness) of radio-specific beep indications. There are three

selectable volume levels.

ENTER/EXIT PROGRAMMING MODE

Beep Volume = Low

Beep Volume = Medium

Beep Volume = High

DEFAULT

Table of Contents

Default Chapter3
- Table of Contents3
Introduction11
- About this Guide11
- Manual Overview11
- Manual Conventions12
- References12
- Technical Support13
Getting Started15
- About the Reader15
- Unpacking15
- Setting up the Reader15
  - Battery Safety16
  - Install the Batteries18
- Install the Interface Cable19
- Configuring the Base Station22
- GRYPHON™ I System and Network Layouts27
  - Stand Alone Layouts27
- Using the Bc40Xx™ Radio Base29
  - Base Leds29
  - Base Button29
- Display30
- Programming30
General Features35
- Double Read Timeout35
- Label Gone Timeout37
- Sleep Mode Timeout39
- LED and Beeper Indicators41
- Scanning Features49
- Flash on Time57
- Flash off Time59
- Green Spot Duration61
- Display62
- Keypad Select67
Interfaces69
- Interface Selection69
- Configuring the Interface69
- Global Interface Features73
  - Host Commands - Obey/Ignore73
  - USB Suspend Mode74
RS-232 ONLY Interface75
- Introduction75
- RS-232 Standard Factory Settings75
- Baud Rate75
- Data Bits77
- Stop Bits77
- Parity78
- Handshaking Control79
RS-232/USB-Com Interfaces81
- Introduction81
- Standard Factory Settings81
- Intercharacter Delay82
- Beep on ASCII BEL84
- Beep on Not on File84
- ACK NAK Options85
- Indicate Transmission Failure95
- Disable Character96
- Enable Character98
Keyboard Interface101
- Introduction101
- Standard Factory Settings101
- Scancode Tables101
- Country Mode102
- Caps Lock State105
- Numlock105
- Send Control Characters106
- Wedge Quiet Interval107
- Intercharacter Delay109
- Intercode Delay111
- USB Keyboard Speed113
USB-OEM Interface115
- Introduction115
- Standard Factory Settings115
- USB-OEM Device Usage116
- Interface Options117
IBM 46XX Interface119
- Introduction119
- IBM Standard Factory Settings119
- 46Xx Number of Host Resets120
- Transmit Labels in Code 39 Format123
- Interface Options124
Wand Emulation Interface125
- Introduction125
- Wand Emulation Standard Factory Settings125
- Wand Signal Speed125
- Wand Polarity126
- Wand Idle State127
- Transmit Noise128
- Label Symbology Conversion129
Data Editing131
- Data Editing Overview131
- Please Keep in Mind132
- Global Prefix/Suffix132
  - Example: Setting a Prefix132
- Global AIM ID134
- Gs1-128 Aim ID136
- Label ID137
- Case Conversion151
- Character Conversion152
RF Features155
- Introduction155
- Standard Factory Settings155
- RF Beeper Features156
- Configuration Update164
- Powerdown Timeout166
- Batch Features168
- RF Address Stamping169
  - Source Radio Address Transmission169
  - Source Radio Address Delimiter Character171
- Radio Protocol Timeout173
- Radio Transmit Mode175
- RF Batch Mode Transmit Delay176
Symbologies177
- Introduction177
- Standard Factory Settings for Symbologies178
- Disable All Symbologies178
- Code EAN/UPC179
- Coupon Control179
- Upc-A180
- Upc-E183
- GTIN Formatting187
- EAN 13 (Jan 13)188
- Issn191
  - ISSN Enable/Disable191
- EAN 8 (Jan 8)192
- UPC/EAN Global Settings195
- Add-Ons200
  - Optional Add-Ons200
  - Optional Add-On Timer202
- Product Reference Guide203
Message Formatting381
- Cursor Control382
- Font Selection382
- Clearing Display383
- LED and Beeper Control383
- Messages from Scanner Command Keys384
Technical Specifications385
- Standard Cable Pinouts388
LED and Beeper Indications389
- Error Codes390
- Base Station Indications391
Standard Defaults393
Sample Barcodes405
Keypad409
Scancode Tables413
- Control Character Emulation413
  - Single Press and Release Keys413
- Interface Type PC at PS/2 or USB-Keyboard414
  - Index425
  - Ascii Chart427
