Configuring the Base Station
Product Reference Guide 23

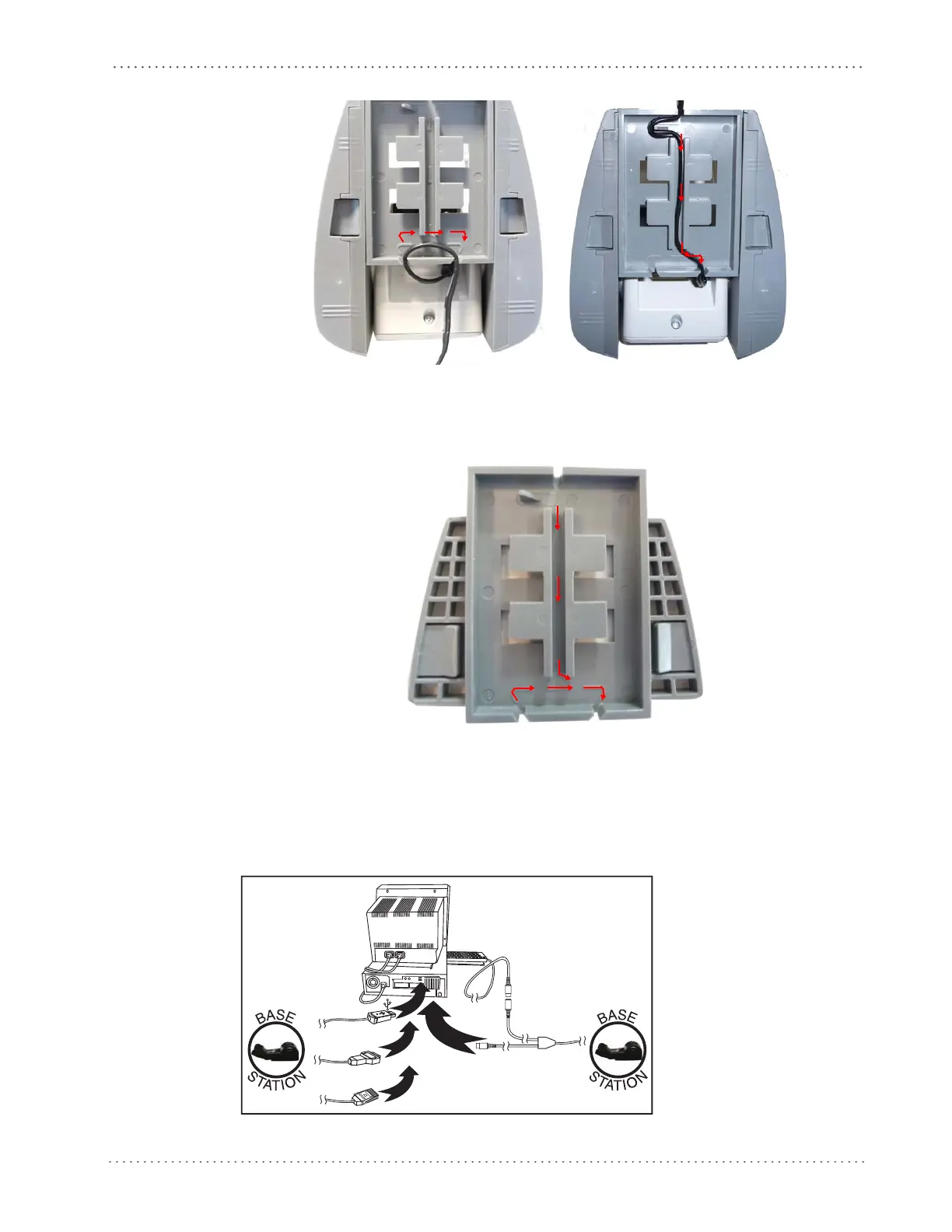

Figure 7. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base when placing the cables, detailed in
Figure 8.
Figure 8. Arrows showing routing
Host Connection.
Verify before connection that the reader’s cable type is compatible with your
host equipment. Most connections plug directly into the host device as shown below. Keyboard
Wedge interface cables have a ‘Y’ connection where its female end mates with the male end of
the cable from the keyboard and the remaining end at the keyboard port on the terminal/PC.
Figure 9. Connecting to the Host
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
