Data Editing
138 Gryphon™ I GD4100/GM4100

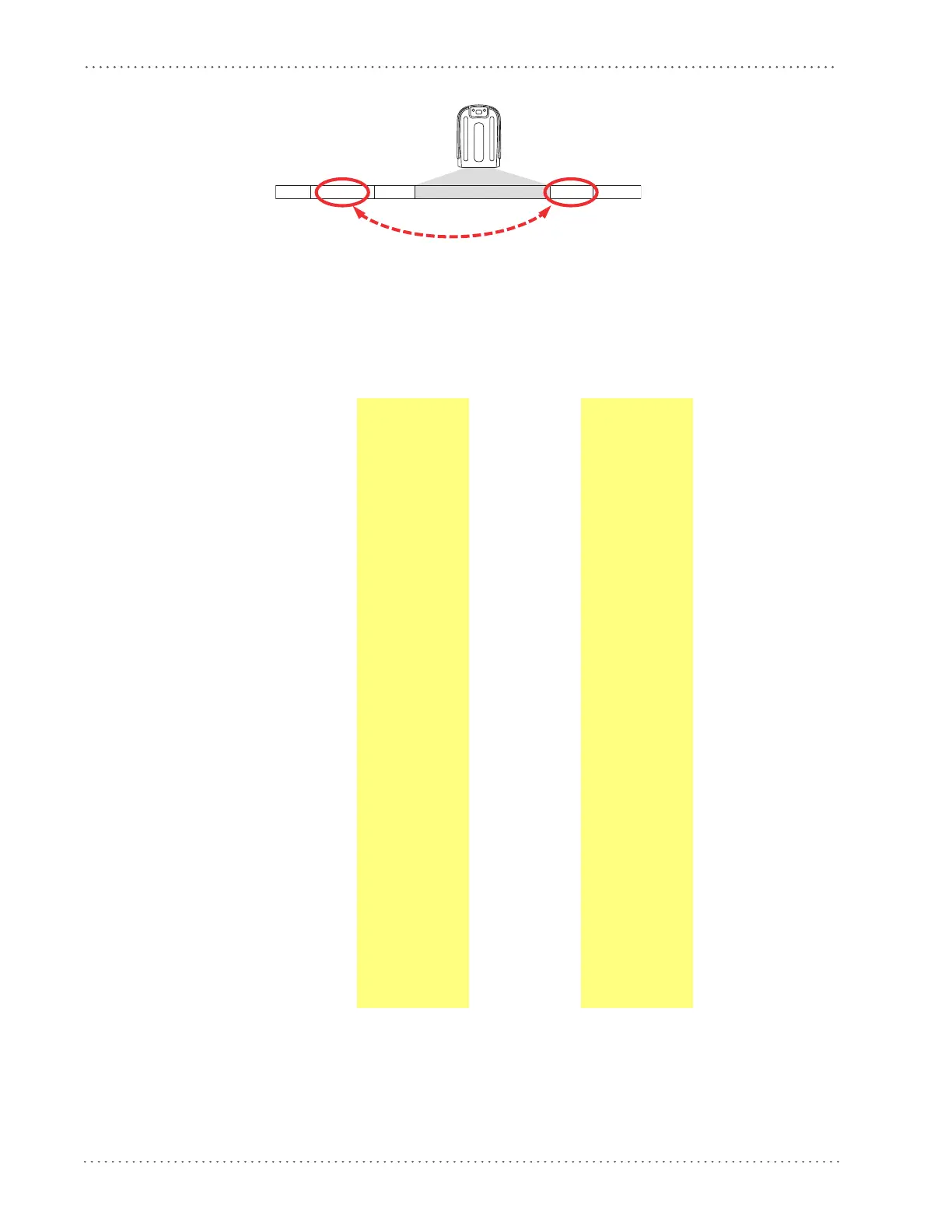

Figure 19. Label ID Position Options
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
Table 18. Label ID Examples
STEP ACTION EXAMPLES
1.
Scan the ENTER/EXIT
barcode
(Scanner enters Programming Mode)
2.
Determine placement of
the Label ID charac
ters
BEFORE or AFTER with
regard to scanned data
using Label ID
Control, starting on page 140
Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix
3.
Scan the barcode selecting
the symbology type y
ou
wish to designate label ID
characters for using Label
ID Symbology
Selection, starting on page 141
.
DataBar
Omnidirectional
Code 39
Interleaved 2 of
5
Code 32
4.
Custom Label ID example
(desired characters):
D B * = C 3 + P H
5.
Find hex equivalents from
the ASCII table (inside back
co
ver), then scan in these
digits/characters using the
barcodes in the section:
Keypad, starting on page 407.
If you make a mistake
before the last character,
scan the CANCEL barcode
to abort and not save the
entry string. You can then
start again at the
beginning.
44 42 2A 3D 43 33 2B 50 48
6.
Scan the ENTER/EXIT
barcode
(Scanner exits Label ID entry)
7.
Scan the ENTER/EXIT
barcode
once again
(Scanner exits Programming Mode)
