Symbologies
280 Gryphon™ I GD4100/GM4100
Industrial 2 of 5 Set Length 2 — cont.
4. Scan the appropriate two digits from the keypad in the Keypad Appendix that represent
the length setting which was determined in the steps above. You will hear a two-beep indi-
cation after the last character.
NOTE
5. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Programming
Mode.
This completes the procedure. See the table below for some examples of h
ow to set this feature.

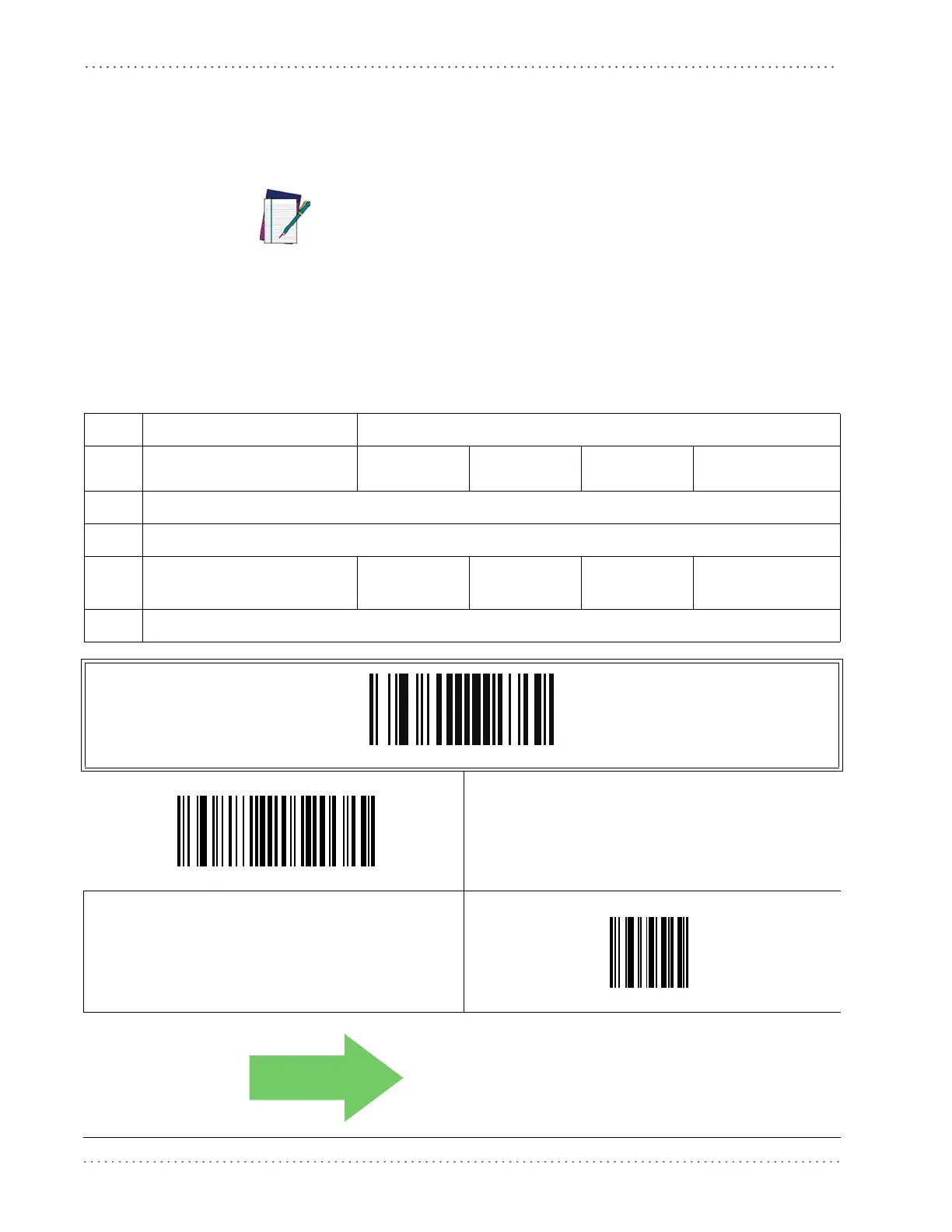

Table 32. Industrial 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Leng
th)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From the
Keypad Appendix
‘0’ a
nd ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
ENTER/EXIT PROGRAMMING MODE
Select Industrial 2 of5 Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the entr
y string. You can then start again at the beginning.
CANCEL
If you make a mistake, before the last character scan the
CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.
DEFAULT
50 = Length 2 is 50 Characters
