Setting Up the Reader
Product Reference Guide
5
connector into the socket on the RS-232 cable connector and the AC Adapter
plug into a standard power outlet.
USB Connection:
Connect the reader to a USB port on the terminal/PC using the
correct USB cable for the interface type you ordered.
Keyboard Wedge Connection :
The Keyboard Wedge cable has a ‘Y’ connection
from the reader. Connect the female to the male end from the keyboard and the
remaining end at the keyboard port at the terminal/PC.

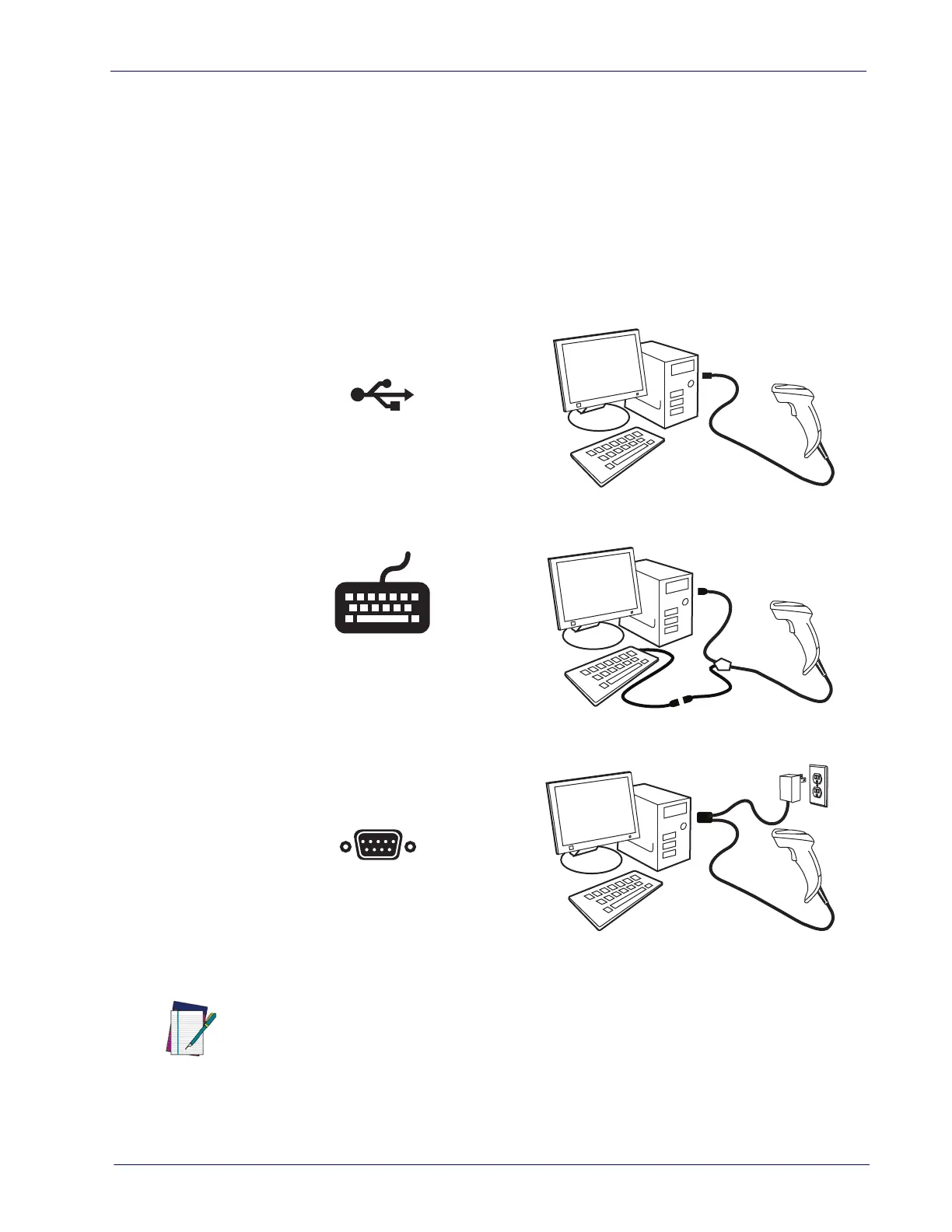

Figure 2. Connection Types
NOTE
Specific cables are required for connection to different hosts. The connectors illustrated
above are examples only. Actual connectors may vary from those illustrated, but the steps
to connect the reader remain the same.
