6 QuickScan™ I QD21X1 / QM21X1 / QBT21X1
Connecting the Base Station
Figure 3 on page 7
shows how to connect the Base Station to a terminal, PC or
other host device. Turn off the host before connection and consult the manual
for that equipment (if necessary) before proceeding. Connect the interface
cable before applying power to the Base Station.

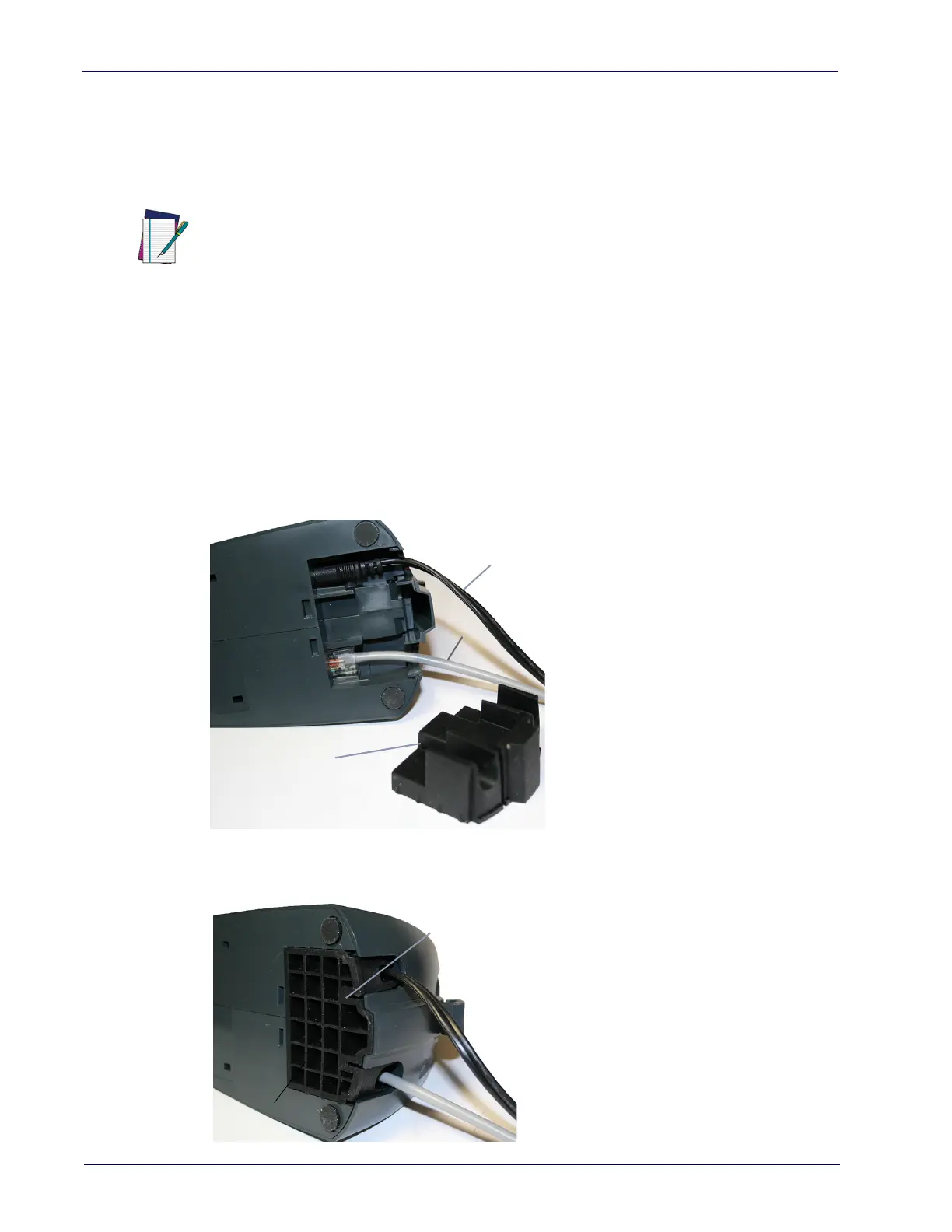

Base Station Connection and Routing
1. Remove the rubber Cable Stopper from the bottom of the Base Station.
2. Securely plug the Power Cable (if used) and Interface
(I/F) Cable connectors into their respective ports in the underside of the
Base Station.
3. After the cables are plugged in, reinsert the Cable Stopper.
NOTE
The Q21X1 can also be Powered by the Terminal. When powered by the Terminal, the battery
charger is automatically set as Slow charge.
For some specific interfaces, hosts, or lengths of cable, the use of an external power supply
may be recommended for full recharging capability (see
"Technical
Specifications," starting on page 311
for more details).
Cable Stopper
Power Cable
I/F Cable
To Next Page
