250 QuickScan™ I QD21X1 / QM21X1 / QBT21X1

Plessey Set Length 2

This feature specifies one of the barcode lengths for Plessey Length Control on

page 248. Length 2 is the maximum label length if in Variable Length on page

248 Mode, or the second fixed length if in Fixed Length on page 248 Mode.

Length includes the barcode’s check, data

, and full-ASCII shift characters. The

length does not include start/stop characters.

The length can be set from 1 to 50 characte

rs. A setting of 0 specifies to ignore

this length (only one fixed length).

Table 4 provides examples for setting Length 2. See page 307 for detailed

instructions on setting this feature.

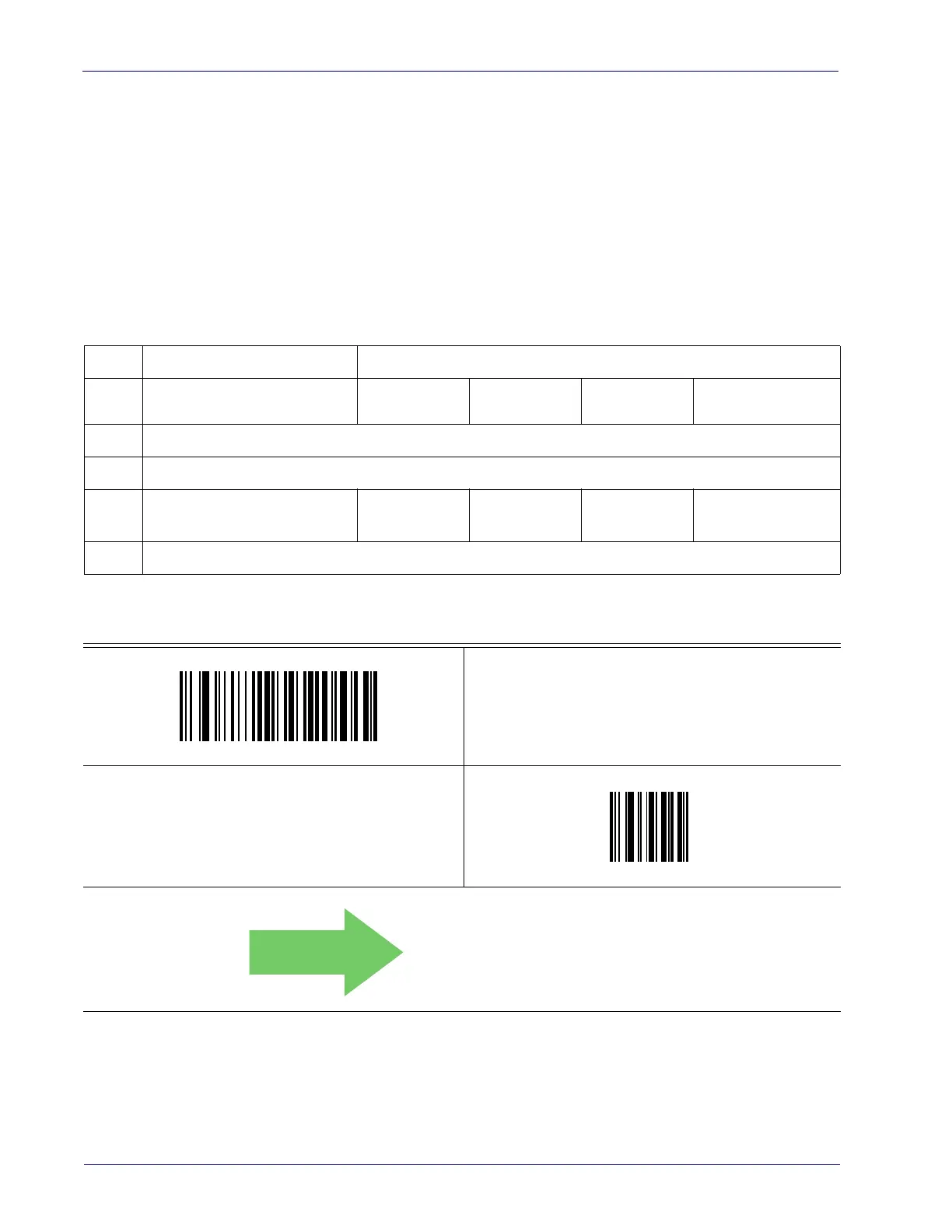

Table 4. Plessey Length 2 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

00 (Ignore This

Length)

07 Characters 15 Characters 50 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT PLESSEY LE

NGTH 2 SETTING

Scan Two Characters From

Appendix D, Keypad

‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Plessey Length 2 Setting

Make a mistake? Scan the CANCEL barcode to abort and not

save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

50 = Length 2 is 50 Characters

Datalogic QuickScan I QD21 1 Series User Manual
