Standard Cable Pinouts (corded models)
Figure 13 and Table 26 provide standard pinout information for the reader’s
cable.

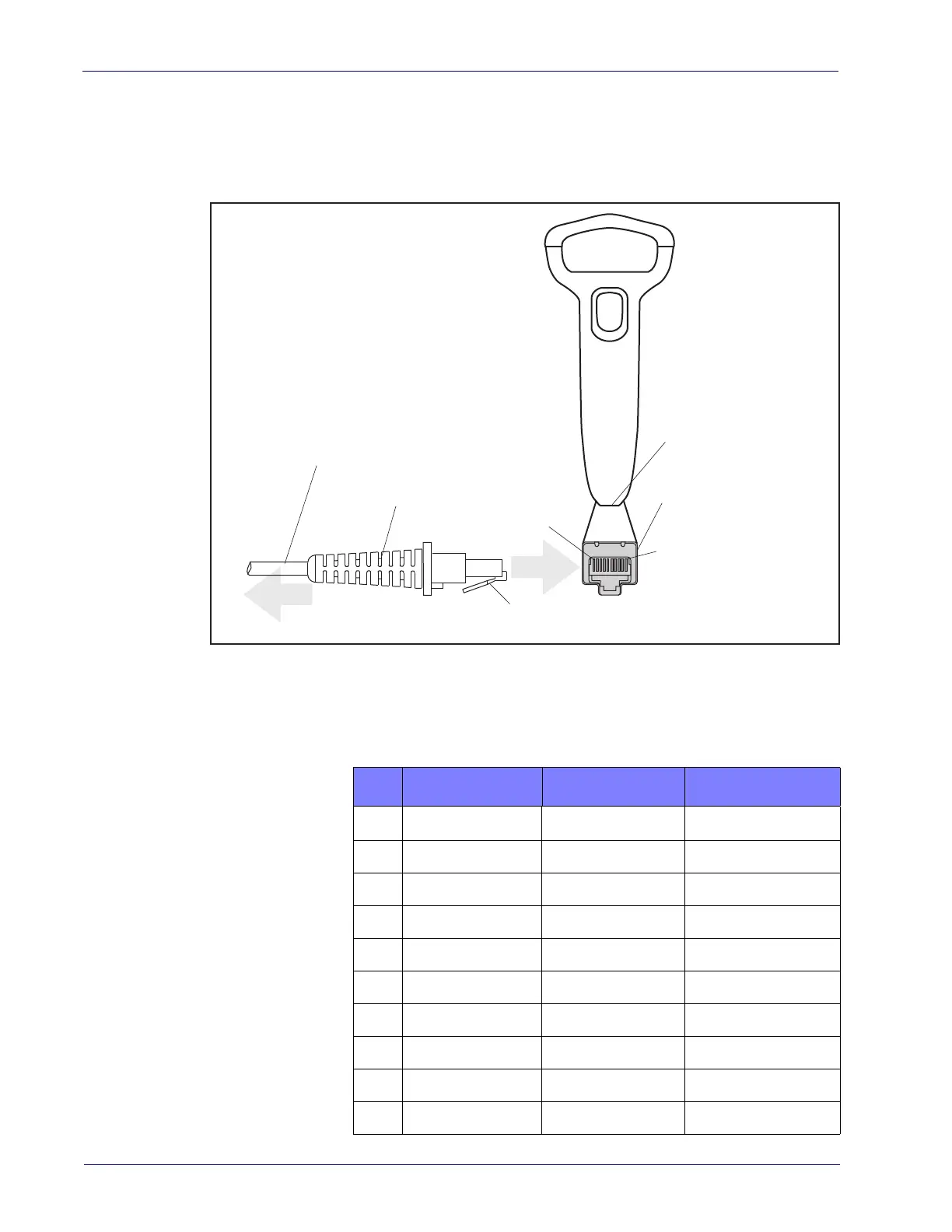

Figure 13. Standard Cable Pinouts
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Imager
Interface Cable Port
Pin 1
Pin 10
The signal descriptions in Table 27 apply to the connector on the reader and
are for reference only.
Table 27. Standard Cable Pinouts - Reader Side
Pin RS-232 USB Keyboard Wedge
1
RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)
