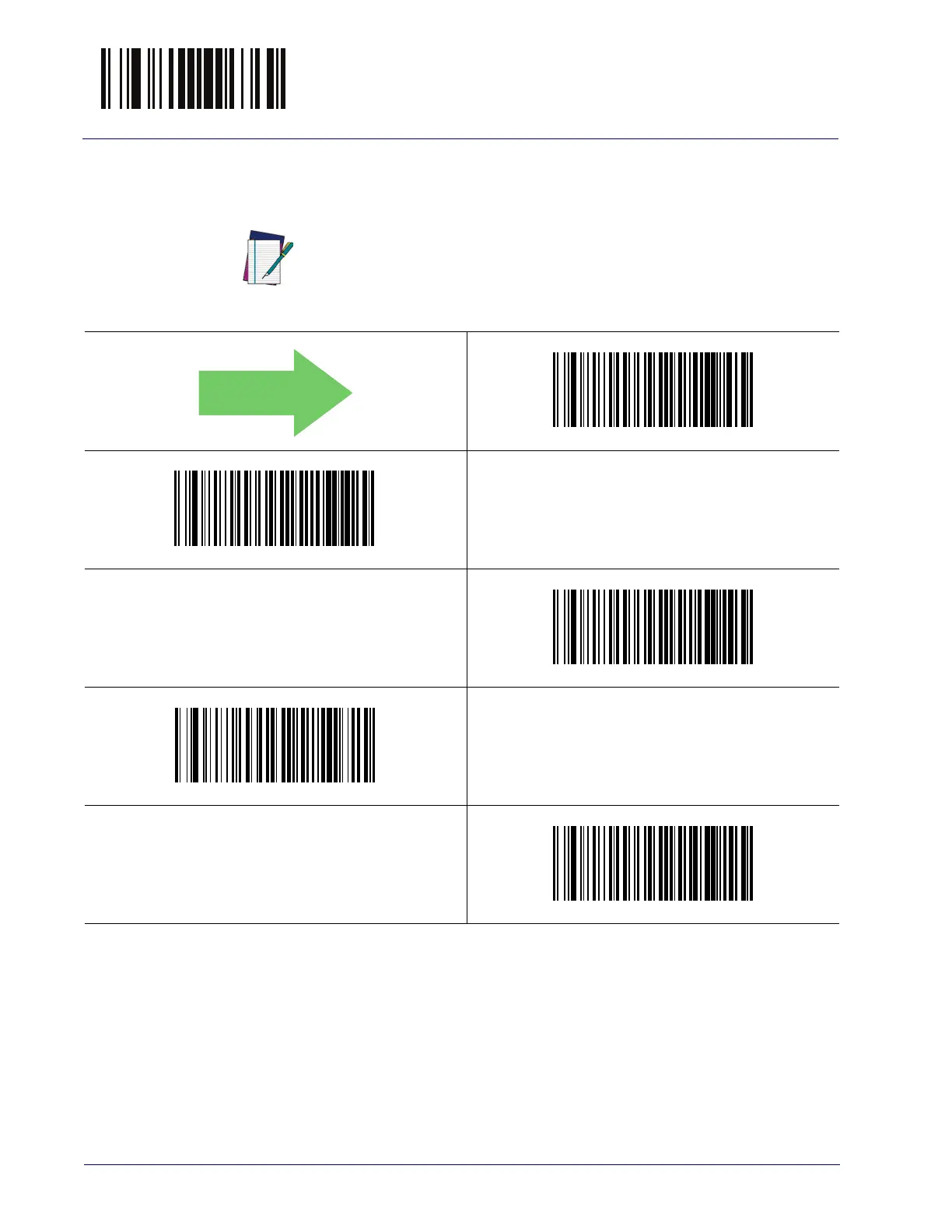

Enter/Exit Programming Mode USB Keyboard Speed

54 QuickScan™ I QD21X1 / QM21X1 / QBT21X1

USB Keyboard Speed

This option specifies the USB poll rate for a USB Keyboard.

NOTE

USB Keyboard Speed = 1ms

USB Keyboard Speed = 2ms

USB Keyboard Speed = 3ms

USB Keyboard Speed = 4ms

USB Keyboard Speed = 5ms

This feature applies ONLY to the USB Keyboard interface.

$CKBSP01

$CKBSP02

$CKBSP03

$CKBSP04

$CKBSP05

DEFAULT
