RS-232 ONLY Interface
34 QuickScan™ I QD21X1 / QM21X1 / QBT21X1
Handshaking Control
The data interface consists of an RS-232 port designed to operate either with
or without the hardware handshaking lines,
Request to Send
(RTS), and
Clear to
Send
(CTS). Handshaking Control includes the following options:
• RTS — RTS is asserted during trans
missions. CTS is ignored.
• RTS/CTS — RTS is asserted during t
ransmissions. CTS gates transmis-
sions.
• RTS/XON/XOFF — RTS is asserted during
transmissions. CTS is ignored.
XON and XOFF gate transmissions.
• RTS On/CTS — RTS is always asserted. CTS gates transmissions.
• RTS/CTS Scan Control — RTS is assert
ed during transmissions. CTS gates
transmissions and controls enable and disable state of reader.

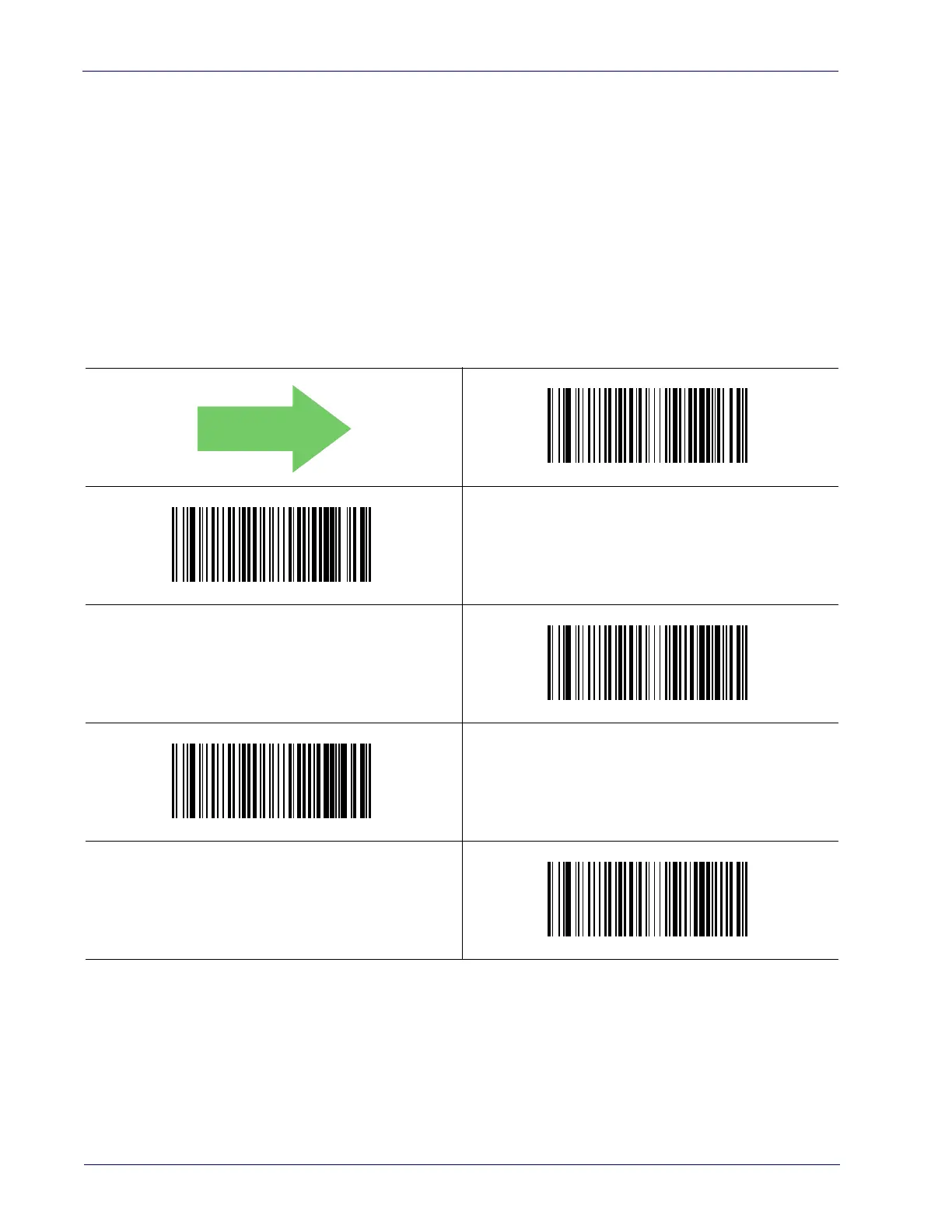

Handshaking Control = RTS
Handshaking Control = RTS/CTS
Handshaking Control = RTS/XON/XOFF
Handshaking Control = RTS On/CTS
Handshaking Control = RTS/CTS Scan Control
$CR2HC00
$CR2HC01
$CR2HC02
$CR2HC03
$CR2HC04
DEFAULT
To Next Page
