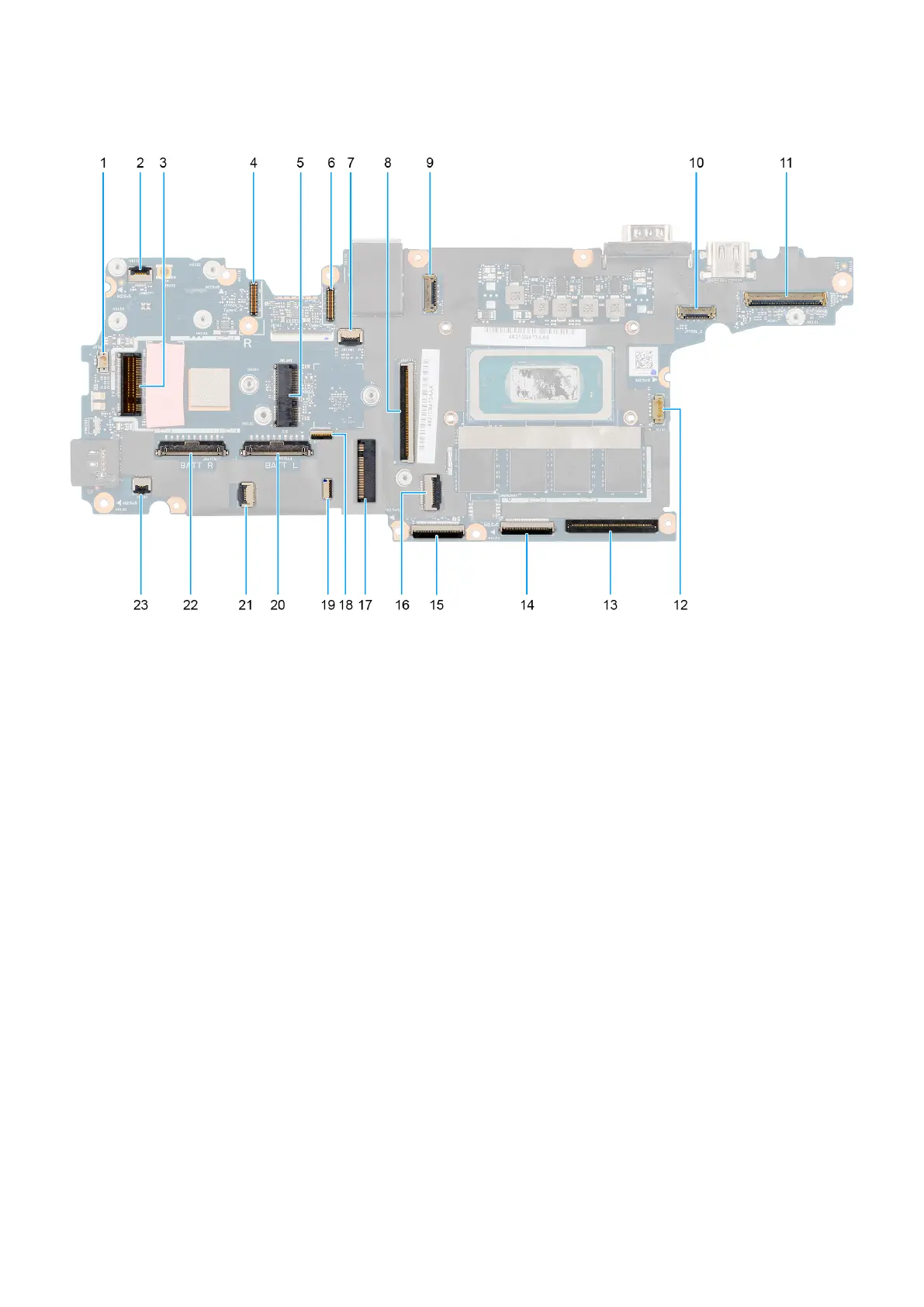

Figure 88. System board connectors
1. Coin-cell battery connector
2. Power button board cable connector
3. WWAN card connector
4. Right Type-C cable connector
5. WLAN card connector
6. Left Type-C cable connector
7. RF switch board connector
8. Dock I/O flat printed cable connector
9. Right Type-C flat printed cable connector
10. Left Type-C flat printed cable connector
11. eDP cable connector
12. Fan cable connector
13. Left I/O-board flat printed cable connector
14. Express card reader board connector
15. USH board connector
16. GPS connector
17. M.2 2230/2280 solid state drive connector
18. Smart card reader connector
19. NFC connector
20. Left battery cable connector
21. LED board connector
22. Right battery cable connector
23. Hall sensor
