Delta VP3000 Series User Manual

Chapter 3 Electrical Wiring｜VP3000
137
460V
Model
kW
HP
Rated Current
(Arms)
Without an AC output reactor
With an AC output reactor
Normal Duty
Shielded Cable
(meter)
Non-shielded
Cable (meter)
Shielded Cable
(meter)
Non-shielded
Cable (meter)
VFD150VP43A
75
100
150
150
225
225
325
VFD180VP43A
90
125
180
150
225
225
325
VFD220VP43A
110
150
220
150
225
225
325
VFD260VP43A
132
175
260
150
225
225
325
VFD310VP43A
160
215
310
150
225
225
325
VFD370VP43A
185
250
370
150
225
225
325
VFD395VP43A
200
270
395
150
225
225
325
VFD460VP43A
220
300
460
150
225
225
325
VFD485VP43A
250
340
485
150
225
225
325
VFD530VP43A
280
375
530
150
225
225
325
VFD616VP43A
315
425
616
150
225
225
325
VFD683VP43A
355
475
683
150
225
225
325
VFD770VP43A
400
530
770
150
225
225
325
VFD866VP43A
450
600
866
150
225
225
325
VFD930VP43A
500
665
930
150
225
225
325
VFD1K1VP43A
560
745
1100
150
225
225
325
VFD1K2VP43A
630
840
1212
150
225
225
325
Table 3-31

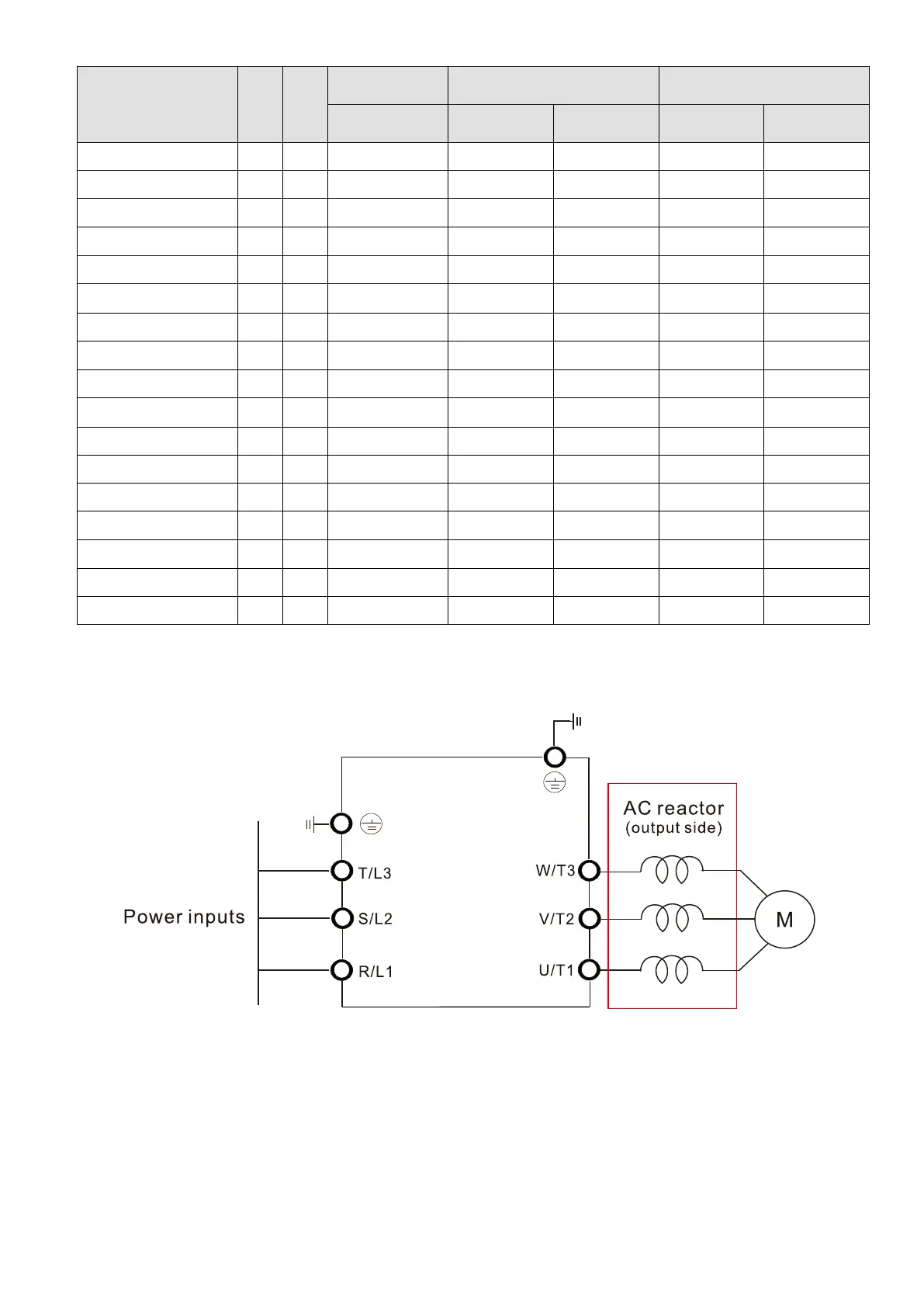

Wiring of AC Output Reactor
Figure 3-106

Delta VP3000 Series Specifications
