Chapter 11 Specification | VP3000
697

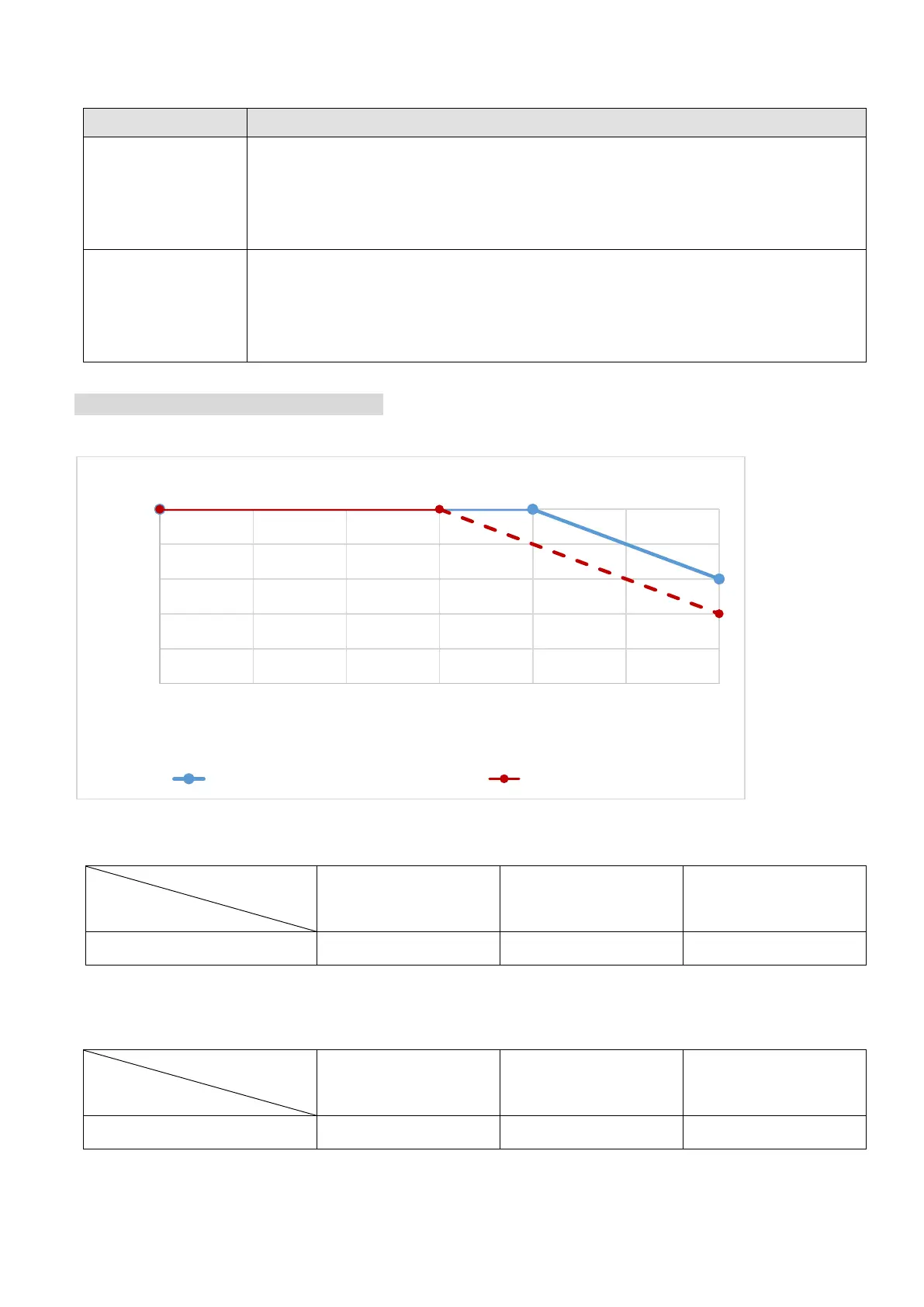

11-4 Derating Curve
Protection Level
Operating Environment
UL Type 1/ IP20
If the AC motor drive operates at the rated current, the ambient temperature needs to
be between -10– +40°C. If the temperature is above 40°C, decrease 2% of the rated
current for every 1°C increase in temperature. The maximum allowable temperature is
60°C.
UL Open Type/ IP20
If the AC motor drive operates at the rated current, the ambient temperature needs to
be between -10– +50°C. If the temperature is above 50°C, decrease 2% of the rated
current for every 1°C increase in temperature. The maximum allowable temperature is
60°C.
Table 9-5
Ambient Temperature Derating Curve
460V
Figure 9-1
IP20 UL Open Type or IP00 Chassis:
The rated output current derating (%) when carrier frequency is the default value:
Ambient Temp. (Ta)/
100% Load
Carrier Frequency (kHz)
30°C
50°C
60°C
Default
100
100
80
Table 9-6
IP20 UL Type 1:
The rated output current derating (%) when carrier frequency is the default value:
Ambient Temp. (Ta)/
100% Load
Carrier Frequency (kHz)
30°C
45°C
60°C
Default
100
100
70
Table 9-7
50
60
70
80
90
100
30 35 40 45 50 55 60
Drive Rated Output Current (%)
Ambient Temperature (°C)
Derating for Ambient Temperature
IP20 UL Open Type/ IP00 Chassis IP20 UL Type 1
