Delta VP3000 Series User Manual

Chapter 10 Accessories | VP3000
646
10-1-4-2 CMC-DN01 -- Communication card, DeviceNet
⚫ Features
1. Based on the high-speed communication interface of Delta HSSP protocol, able to
conduct immediate control to AC motor drive.
2. Supports Group 2 only slave device connection and polling I/O data exchange.
3. For I/O mapping, supports Max. 32 words of input and 32 words of output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125 Kbps, 250 Kbps, 500 Kbps and
extendable serial transmission speed mode.
6. Node address and serial transmission speed can be set up on AC motor drive.
7. Power supplied from AC motor drive.

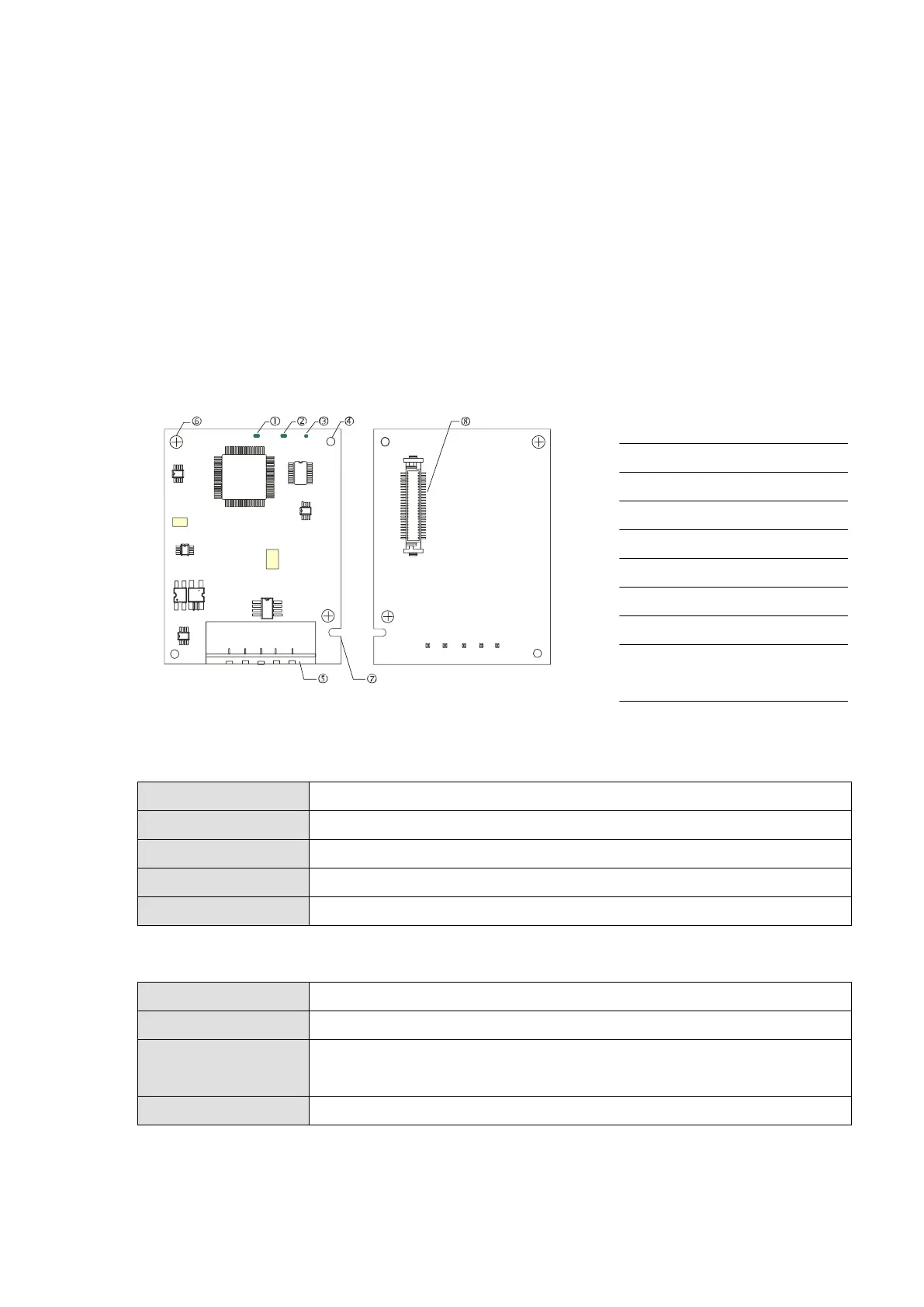

⚫ Product File
Figure 10-30
1. NS indicator
2. MS indicator
3. POWER indicator
4. Positioning hole
5. DeviceNet Connection port
6. Screw fixing hole
7. Fool-proof groove
8. AC motor drive connection
port
⚫ Specifications
DeviceNet Connector
Connector
5-PIN open removable connector of 5.08 mm PIN interval
Transmission Method
CAN
Transmission Cable
Shielded twisted pair cable (with 2 power cables)
Transmission Speed
125 Kbps, 250 Kbps, 500 Kbps and extendable serial transmission speed
Network Protocol
DeviceNet Protocol
Table 10-13
AC Motor Drive Connection Port
Connector
50 PIN communication terminal
Transmission Method
SPI communication
Terminal Function
1. Communicating with AC motor drive
2. Transmitting power supply from AC motor drive
Communication
Delta HSSP protocol
Table 10-14
