Chapter 2 Mechanical Installation｜VP3000
17
2-4-3 Weight
See Section 2-5 for the weight of each frame.
2-4-4 Lifting Indication
Frame E–K
1. Use the lifting hook to properly pass through the lifting hole, pay attention to the lifting method to
prevent deformation of the drive lifting hole from improper installation.

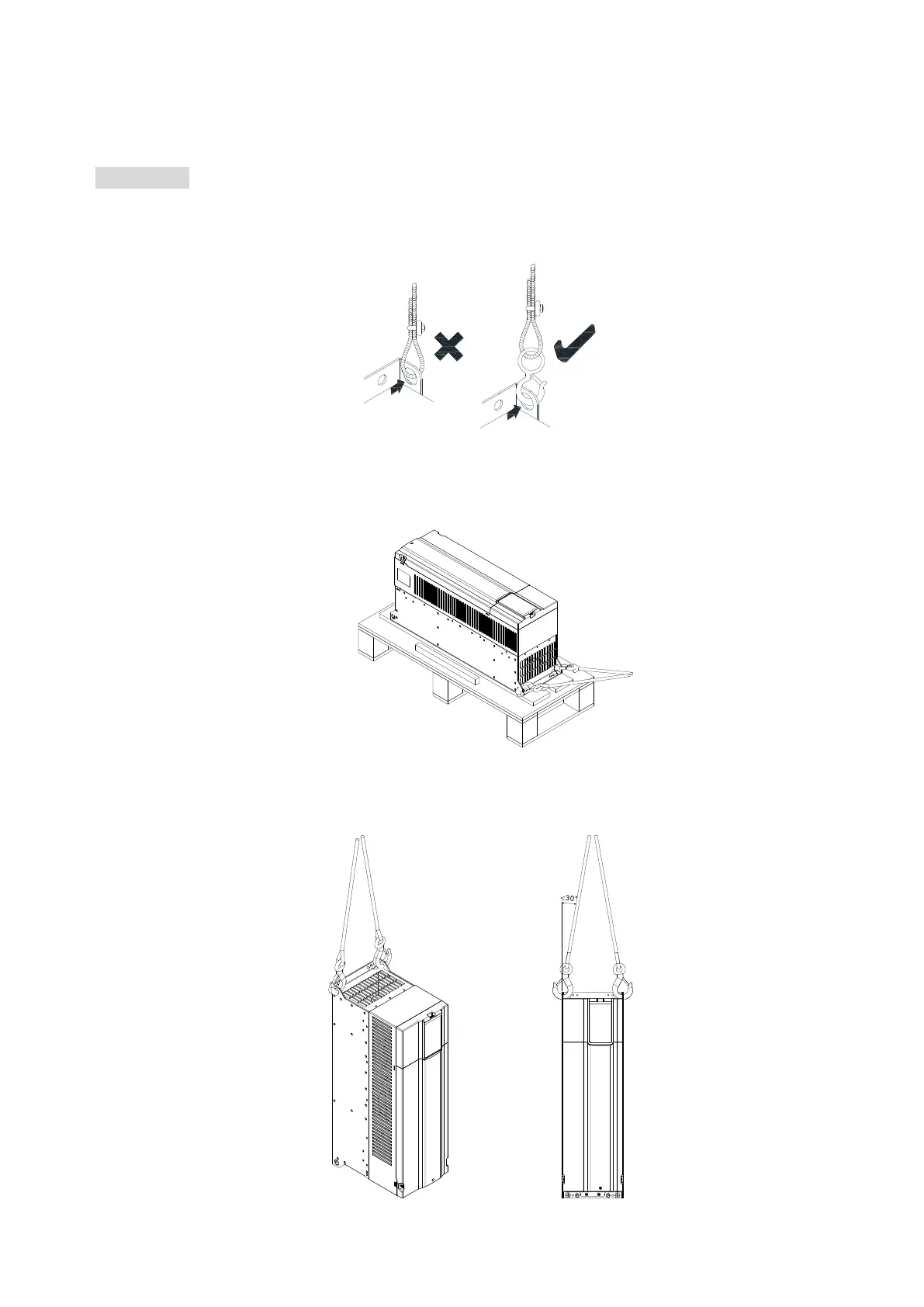

Figure 2-28
2. Make sure the two lifting hooks hook into the lifting holes, and then remove the screws and iron
plates that fix the drive on the crate.
Figure 2-29
3. Note that the angle between the lifting hole of the drive and the hook device must be less than 30
degrees. The drive can be installed after being lifted.
Figure 2-30
