Delta VP3000 Series User Manual

Chapter 10 Accessories | VP3000
643
10-1-4 Extension Card for RS-485
10-1-4-1 CMC-PD01 -- Communication card, PROFIBUS DP
⚫ Features
1. Supports PZD control data exchange.
2. Supports PKW access AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports a Max. 12 Mbps.
⚫ Product File

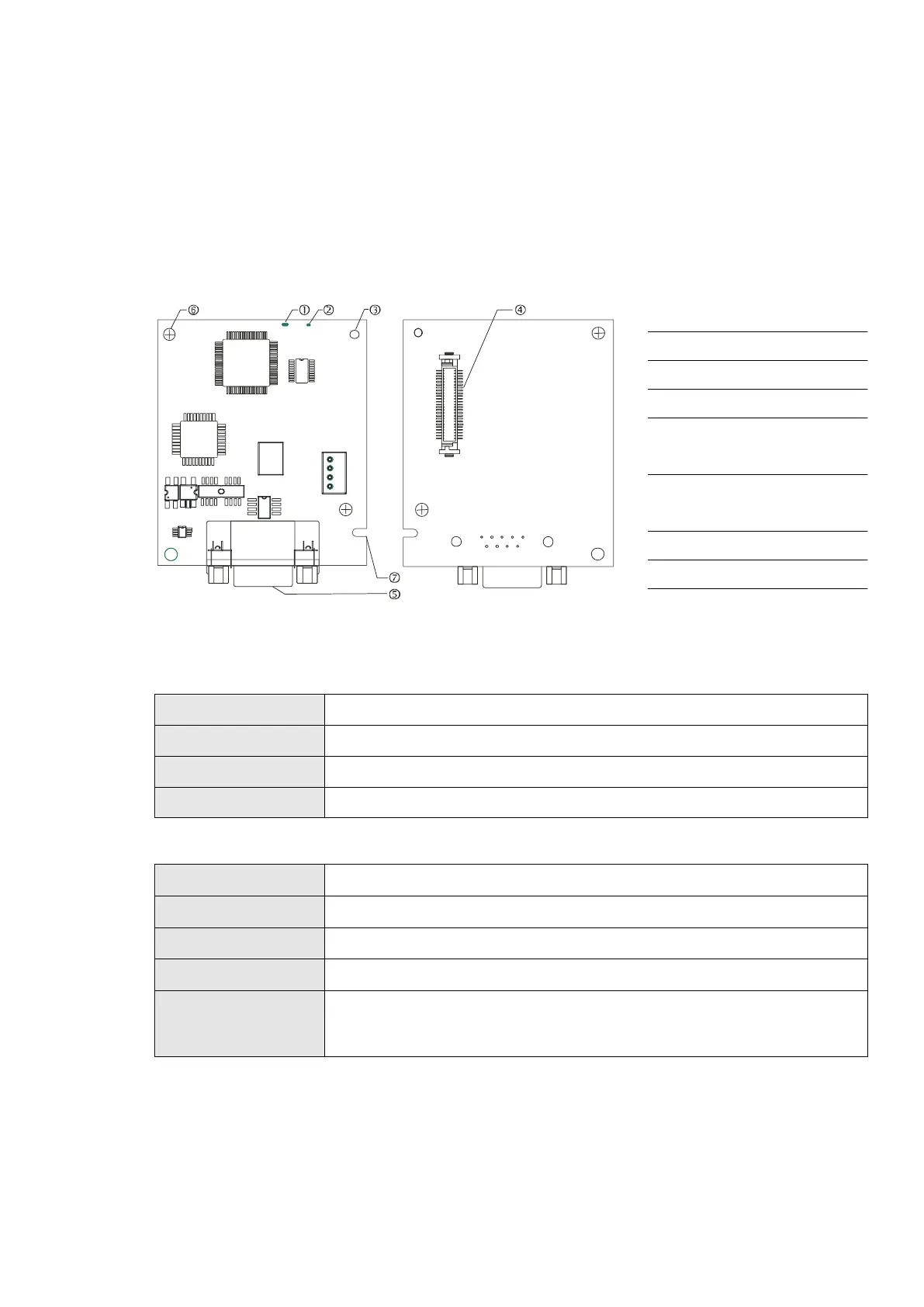

Figure 10-28
1. NET indicator
2. POWER indicator
3. Positioning hole
4. AC motor drive
connection port
5. PROFIBUS DP
connection port
6. Screw fixing hole
7. Fool-proof groove
⚫ Specifications
PROFIBUS DP Connector
Connector
DB9 connector
Transmission Method
High-speed RS-485
Transmission Cable
Shielded twisted pair cable
Electrical Isolation
500 V
DC
Table 10-6
Communication
Message Type
Cyclic data exchange
Module Name
CMC-PD01
GSD Document
DELA08DB.GSD
Company ID
08DB (HEX)
Serial Transmission
Speed Supported
(Auto-detection)
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 500 Kbps; 1.5 Mbps; 3 Mbps;
6 Mbps; 12 Mbps (bit per second)
Table 10-7
