Delta VP3000 Series User Manual

Chapter 3 Electrical Wiring｜VP3000
67
3-3 Main Circuit Terminals
3-3-1 Remove the Cover for Wiring
Remove the top cover before wiring the multi-function input and output terminals (except Frame L and
M).
NOTE: The drive appearances shown in the figures are for reference only, a real drive may look
different.

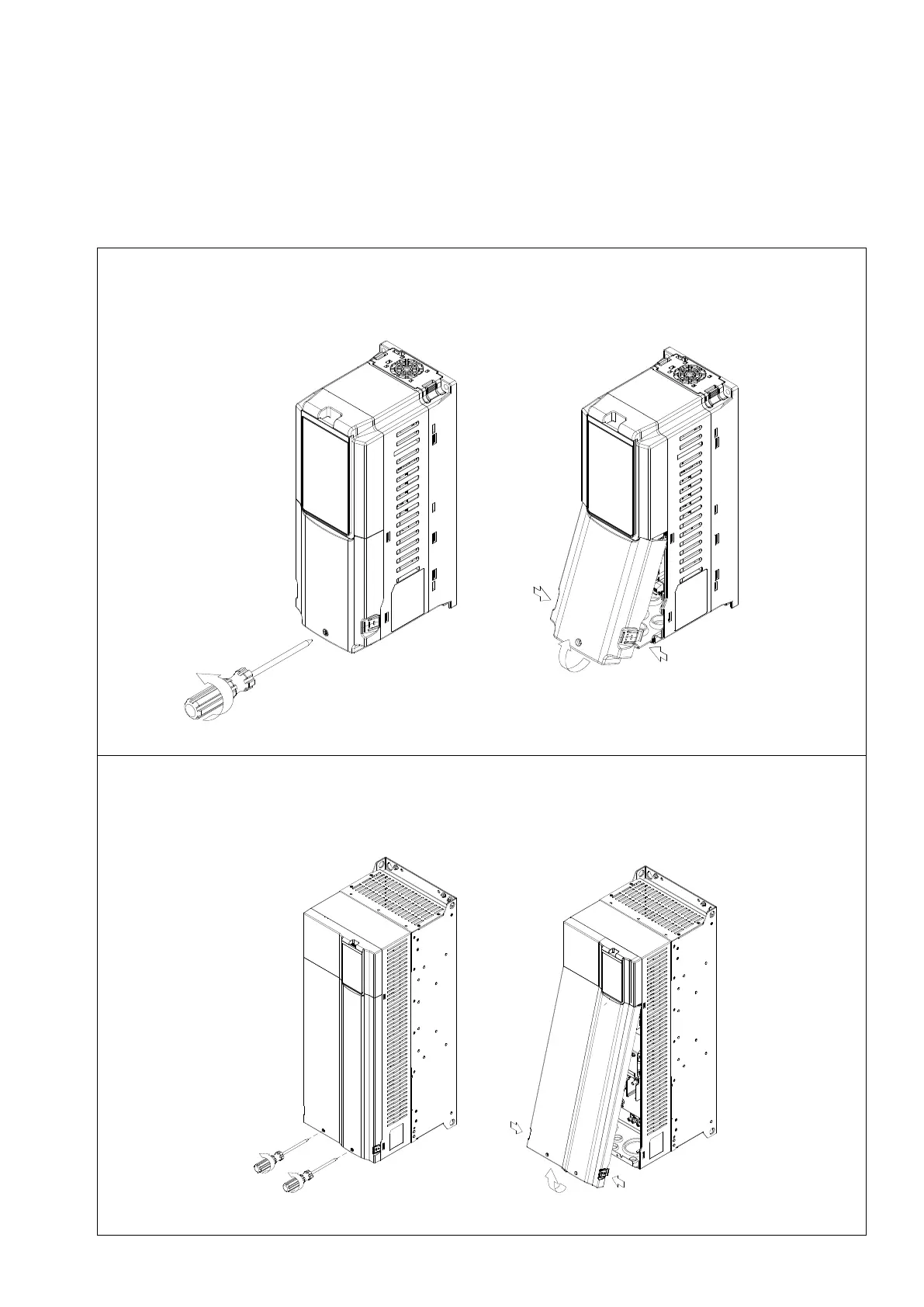

Frame A–G
Screw torque: 12–15 kg-cm / (10.4–13 lb-in.) / (1.2–1.5 Nm)
Loosen the screws and press the tabs on both sides to remove the cover.
Figure 3-4
Frame H–I
Screw torque: 12–15 kg-cm / (10.4–13 lb-in.) / (1.2–1.5 Nm)
Loosen the screws and press the tabs on both sides to remove the cover.
Figure 3-5
