Delta VP3000 Series - 3-3-2 Wiring

Chapter 3 Electrical Wiring｜VP3000
69
3-3-2 Wiring
Applicable for all frame models
Input: three-phase power

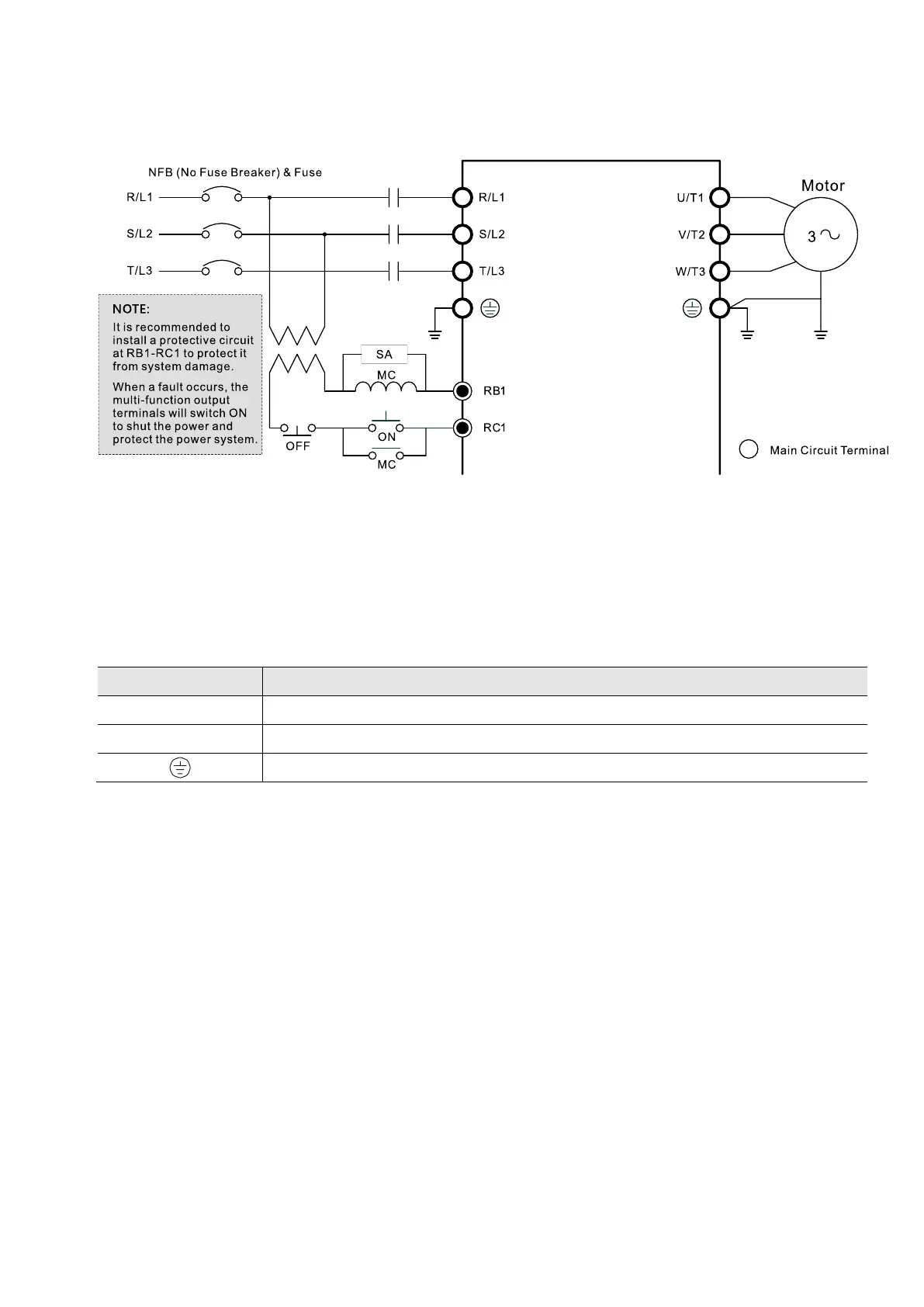

Figure 3-8
NOTE: When the wiring between the motor and the drive exceeds 75m, refer to Section 10-3-2
Motor Wiring Length for the cable length specification.
Terminal
Description
R/L1, S/L2, T/L3
Power input terminal (three-phase)
U/T1, V/T2, W/T3
AC motor drive output terminals for connecting three-phase induction motor
Ground connection, comply with local regulations.
Table 3-3
