Delta VP3000 Series - 10-3-5 Panel Mounting (MKV-KPPK)

Chapter 10 Accessories | VP3000
681

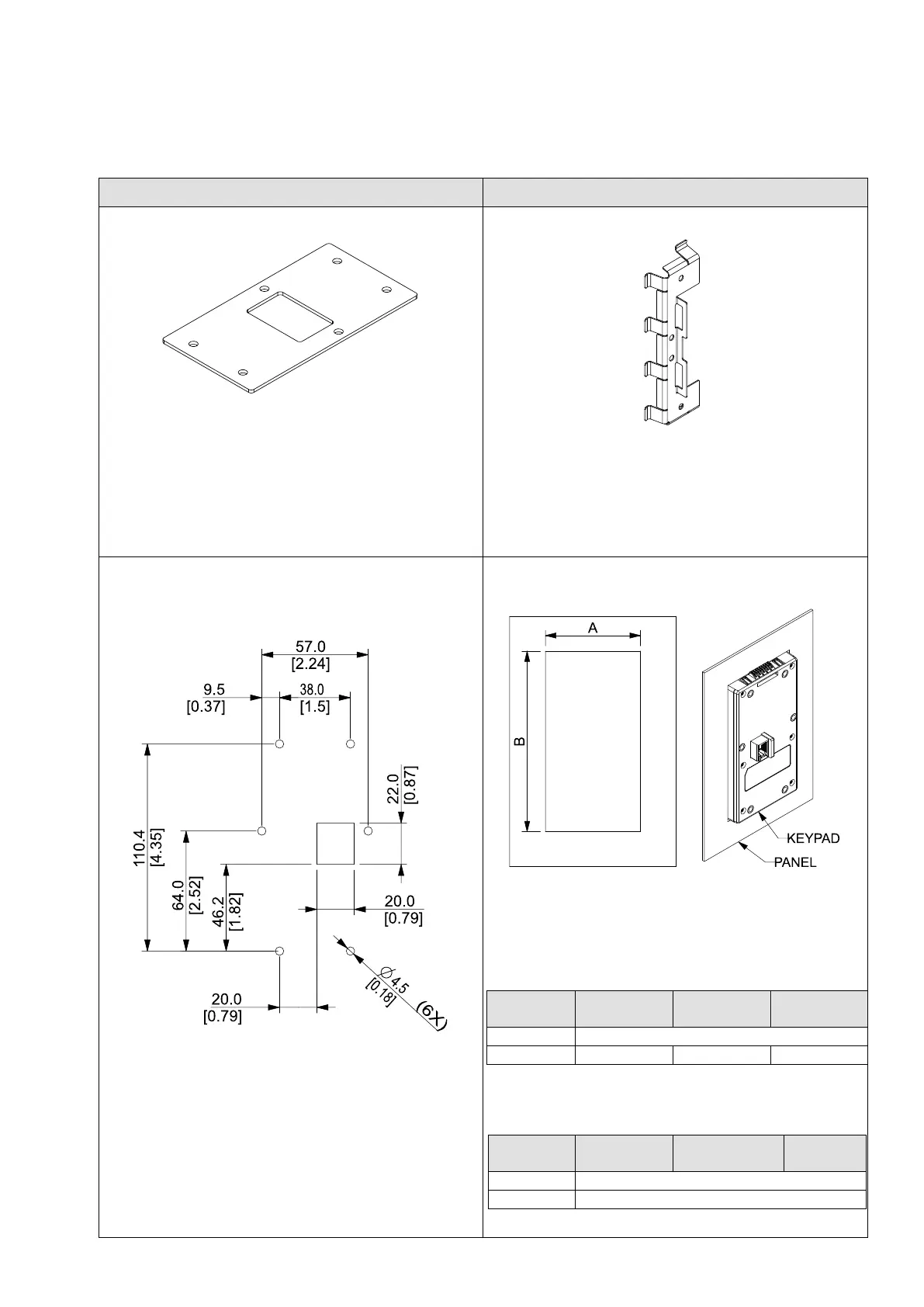

10-3-5 Panel Mounting (MKV-KPPK)
For MKV-KPPK model, user can choose wall mounting or embedded mounting, protection level is
IP56.
Applicable to the digital keypad KPV-CC01 & KPV-CE02.
Wall Mounting
Embedded Mounting
Accessory*1
Figure 10-65
Screw*6 - M4*p0.7*L8mm*6
Screw torque: 10–12 kg-cm / (8.7–10.4 lb-in.) /
(1.0–1.2 Nm)
Accessory*2
Figure 10-66
Screw*6 - M4*p0.7*L8mm*6
Screw torque: 10–12 kg-cm / (8.7–10.4 lb-in.) /
(1.0–1.2 Nm)
Panel cutout dimension Unit: mm (inch)
Figure 10-67
Panel cutout dimension Unit: mm (inch)
Figure 10-68
Normal cutout dimension
Unit: mm (inch)
Panel
Thickness
1.2 mm
1.6 mm
2.0 mm
A
68.3 (2.69)
B
127.3 (5.01)
128.5 (5.06)
129.9 (5.11)
Deviation: ±0.15 mm / ±0.0059 inch
Table 10-53
Cutout dimension (Waterproof level: IP56)
Panel
Thickness
1.2 mm
1.6 mm
2.0 mm
A
68.3 (2.69)
B
127.9 (5.07)
Deviation: ±0.15 mm / ±0.0059 inch
Table 10-54
