Chapter 11 Specification | VP3000
703

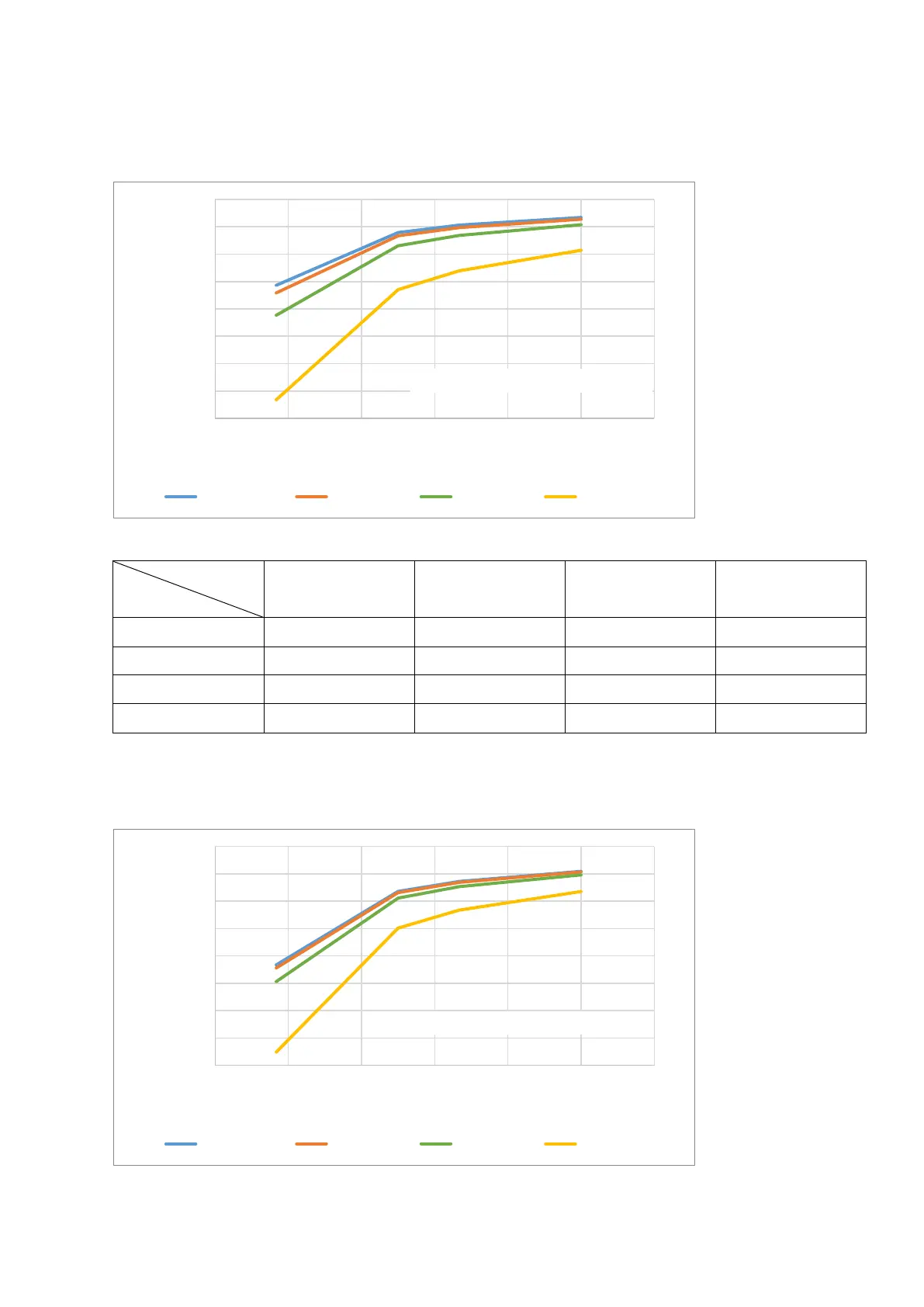

11-5 Efficiency Curve
⚫ Models:
VFD3A0VP43A–VFD011VP43A
Figure 9-9
Efficiency (%) under different loads:
Speed (%)
Load (%)
16.7
50.0
66.7
100.0
100% Load
84.3
93.9
95.3
96.7
75% Load
82.9
93.3
94.8
96.4
50% Load
78.8
91.5
93.4
95.4
25% Load
63.4
83.5
87.0
90.7
Table 9-13
⚫ Models:
VFD013VP43A–VFD220VP43A
Figure 9-10
60.0%
65.0%
70.0%
75.0%
80.0%
85.0%
90.0%
95.0%
100.0%
0.0% 20.0% 40.0% 60.0% 80.0% 100.0% 120.0%
Efficiency (%)
Speed (%)
VFD3A0VP43A~VFD011VP43A
FULL LOAD 75% LOAD 50% LOAD 25% LOAD
80.0%
82.5%
85.0%
87.5%
90.0%
92.5%
95.0%
97.5%
100.0%
0.0% 20.0% 40.0% 60.0% 80.0% 100.0% 120.0%
Efficiency (%)
Speed (%)
VFD013VP43A~VFD220VP43A
FULL LOAD 75% LOAD 50% LOAD 25% LOAD
