Delta VP3000 Series - 2-6 EMC Plate Installation; 2-6-1 Installation Method

Chapter 2 Mechanical Installation｜VP3000
49
2-6 EMC Plate Installation
2-6-1 Installation Method
Frame A–C
Applicable models: VFD3A0–038VP43ANTAA

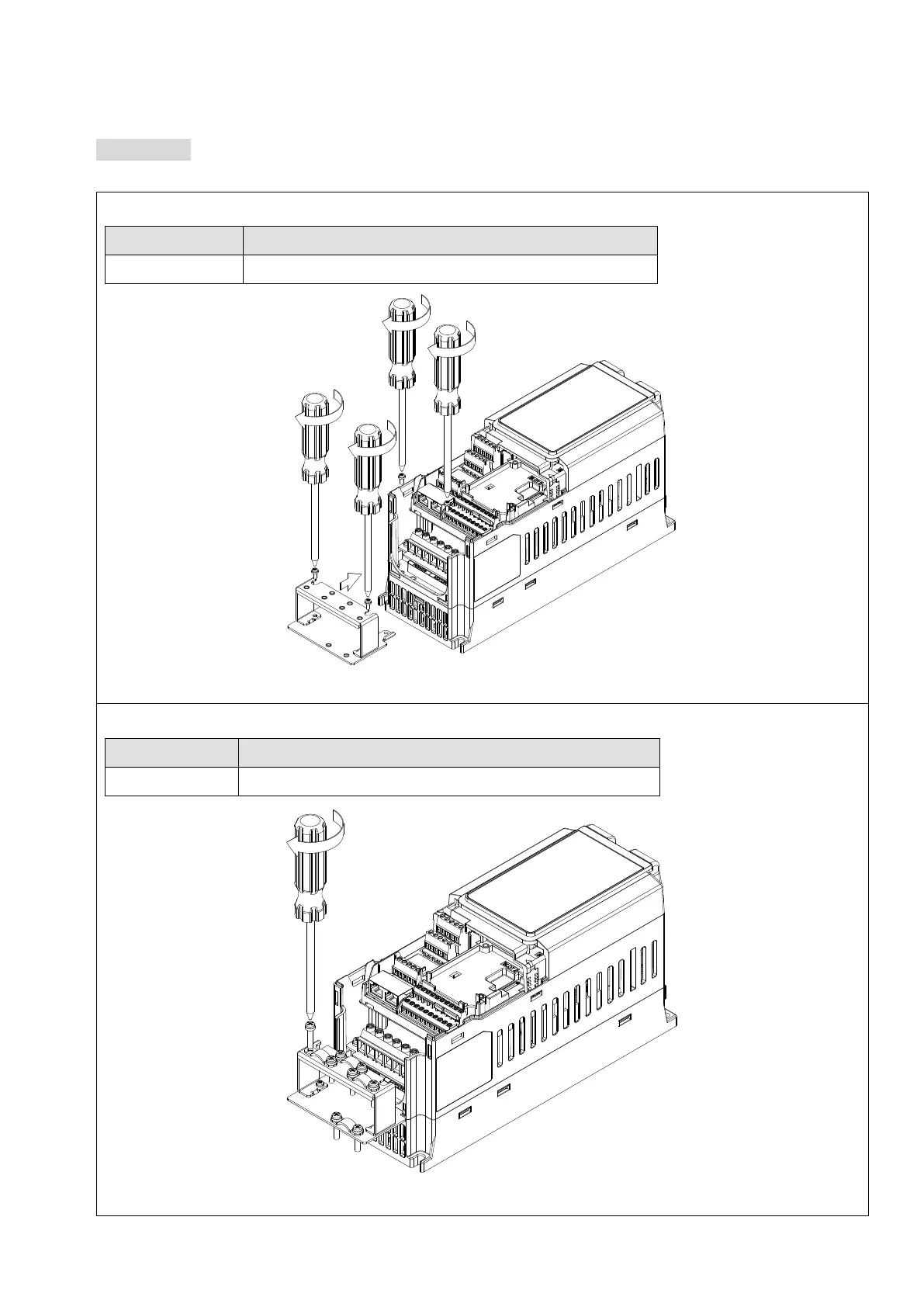

1. Fasten the metal plate on the AC motor drive, as shown in the figure below.
Frame
Screw Spec. and Torque
A–C
M3 6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
Figure 2-65
2. Choose the applicable Ohm clips according to the wire gauge and fasten it on the metal plate.
Frame
Screw Spec. and Torque
A–C
M4 14–16 kg-cm / (12.2–13.9 lb-in.) / (1.37–1.57 Nm)
Figure 2-66
