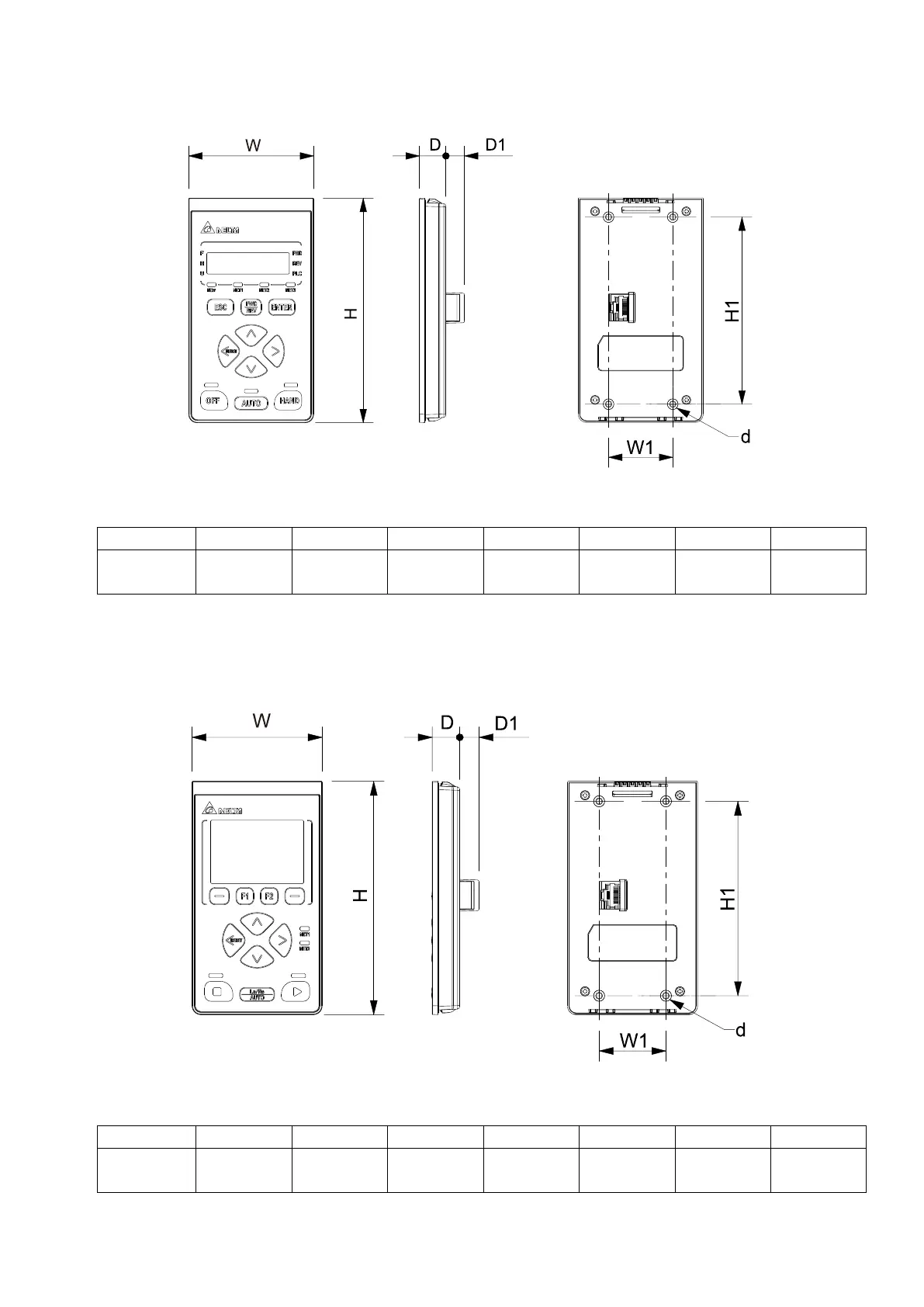

4-1-1 Dimensions
KPV-CE02
Figure 4-6
Unit: mm (inch)
W
W1
H
H1
D
D1
d
KPV-CE02
74
(2.91)
38
(1.50)
132.5
(5.22)
110.4
(4.35)
15.7
(0.62)
11
(0.43)
M4xP0.7
Table 4-1
KPV-CC01/ KPV-CC02
Figure 4-7
Unit: mm (inch)
W
W1
H
H1
D
D1
d
KPV-CC01
KPV-CC02
74
(2.91)
38
(1.50)
132.5
(5.22)
110.4
(4.35)
15.7
(0.62)
11
(0.43)
M4xP0.7
Table 4-2
