Chapter 10 Accessories | VP3000
642
AO10, AO11
Refer to Parameter group G7 for analog output terminal and output mode
selection.
There are two sets of AO port, SSW1 (AO10) and SSW2 (AO11), which
can be switched to Voltage or Current mode.
Voltage mode: Output 0–10 V
Current mode: Output 0–20 mA / 4–20 mA
Multi-function analog
voltage output

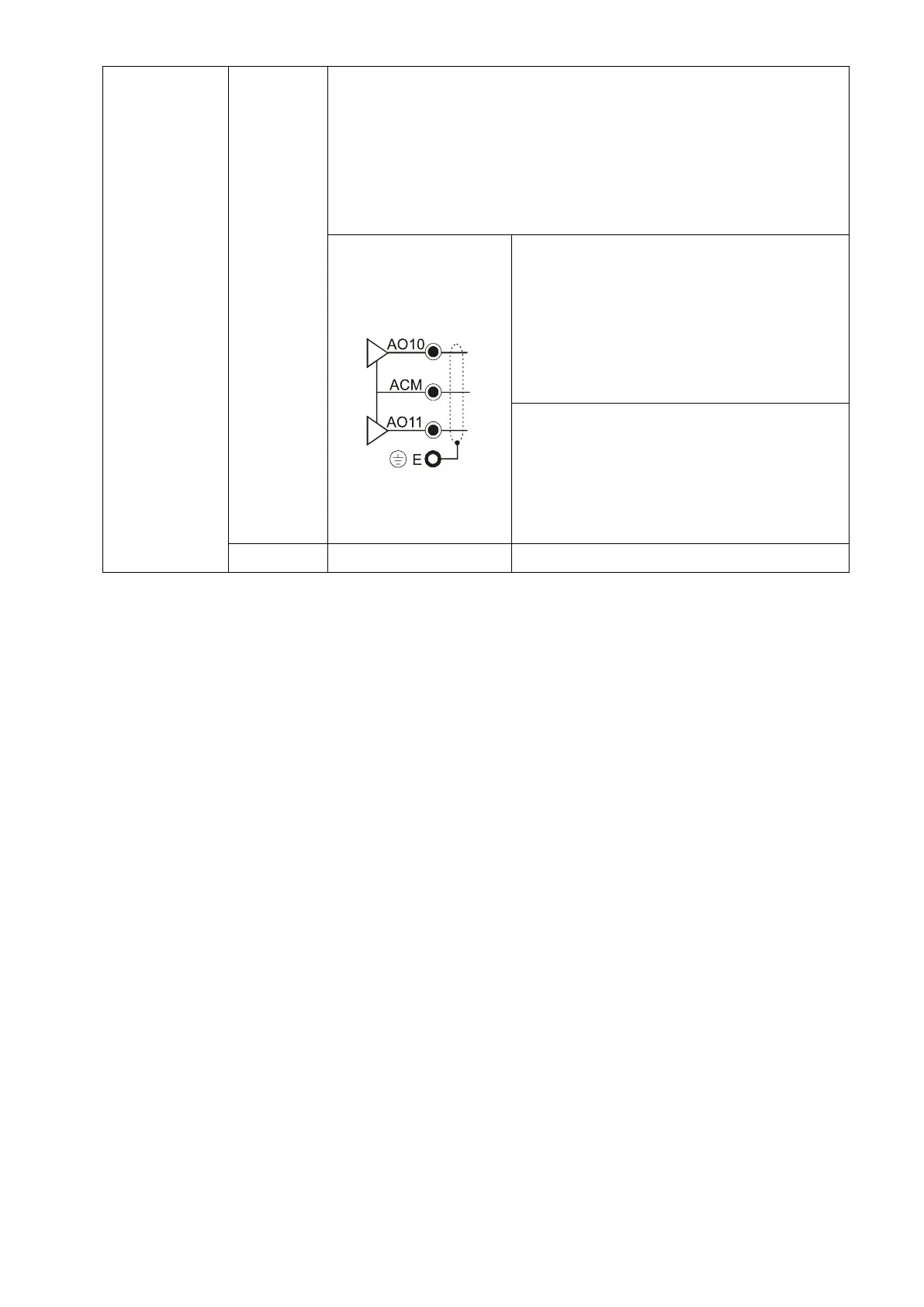

Figure 10-27
AVO:
0–10 V Max. output current 2 mA, Max. load 5
kΩ
Output current: 2mA max
Resolution: 10 mV (10V/1000)
Switch: AI10 / AI11 Switch, default is 0–10 V
ACO:
0–20 mA, Max. load 500 kΩ
Output current: 20 mA max
Resolution: 20 uA (20 mA/1000)
Switch: AI10 / AI11 Switch, default is 0–10 V
ACM
Analog Signal Common
Analog signal common terminal
Table 10-5
