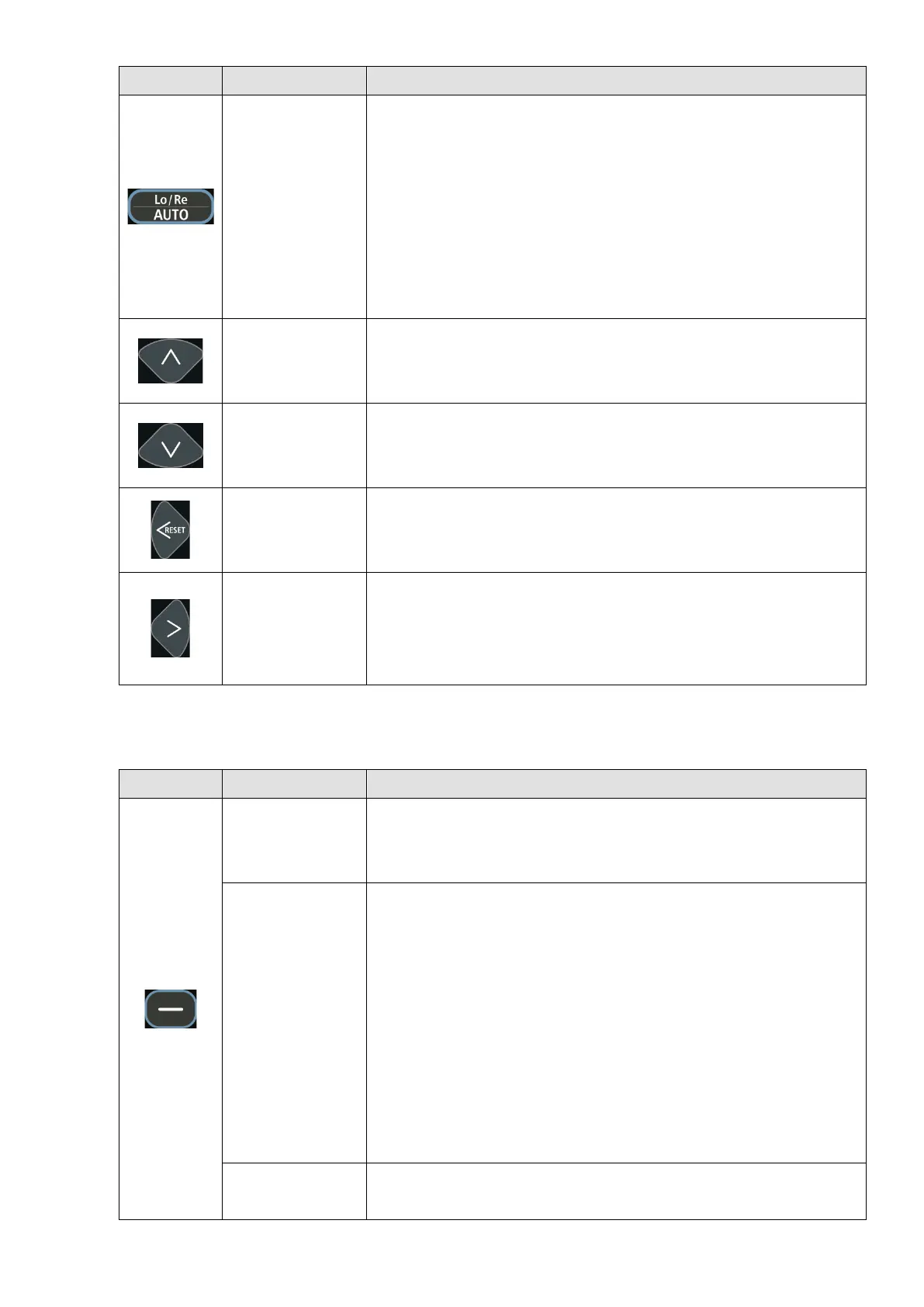

Key
Name
Function Description
Lo/Re Switch
and AUTO key
1. The default function of this key is Local / Remote switching
function.
2. Use parameter to change this key to AUTO mode switching
key.
3. Press the AUTO key at STOP, then the setting switches to
AUTO frequency source and AUTO operation source.
4. Successful mode switching for the KPV-CC01 displays
Local, Remote or AUTO mode on the screen.
Up key
1. In the numeric value setting mode, use the UP/DOWN key to
add and subtract the values.
2. In the menu/text selection mode, selects an item.
Down key
1. In the numeric value setting mode, use the UP/DOWN key to
add and subtract the values.
2. In the menu/text selection mode, selects an item.
Left key
1. In the numeric value setting mode, use the Left key to move
the cursor.
2. When a fault occurs, use the Left key to reset the fault.
Right key
1. In the numeric value setting mode, use the Right key to
move the cursor.
2. When the keypad is locked, press ESC and the Right key for
3 seconds to unlock the keypad.
Function Key
The following functions of each key display in the bottom of the screen and vary with the displayed
content.
Key
Functions
Descriptions
ESC
Delete Key
When the function list displays “ESC” on the screen, this key is
defined as “Delete and return to previous page”.
Func
Function selection key
When the function list displays “Func” on the screen, press this
key to go to the function selection page.
Menu:
1. Pr Management
7. PLC Function
2. I/O monitor
8. Copy function
3. Keypad lock
9. Drive Information
4. App Macros and Quick Setting
10. Start Wizard
5. Option cards
11. Keypad settings
6. Fault record
12. PC link
Back
When the function list displays “Back” on the screen, this key is
defined as “Return to previous page”.
