Chapter 9 Maintenance and Inspections | VP3000
611
Frame C
Heat Sink Fan Model: MKVP-CFKM
1. Use a flathead screwdriver to insert to the groove of the middle cover, and open the fan hook
(only for VFD025VP43BFTAA, VFD032VP43BFTAA and VFD038VP43BFTAA).

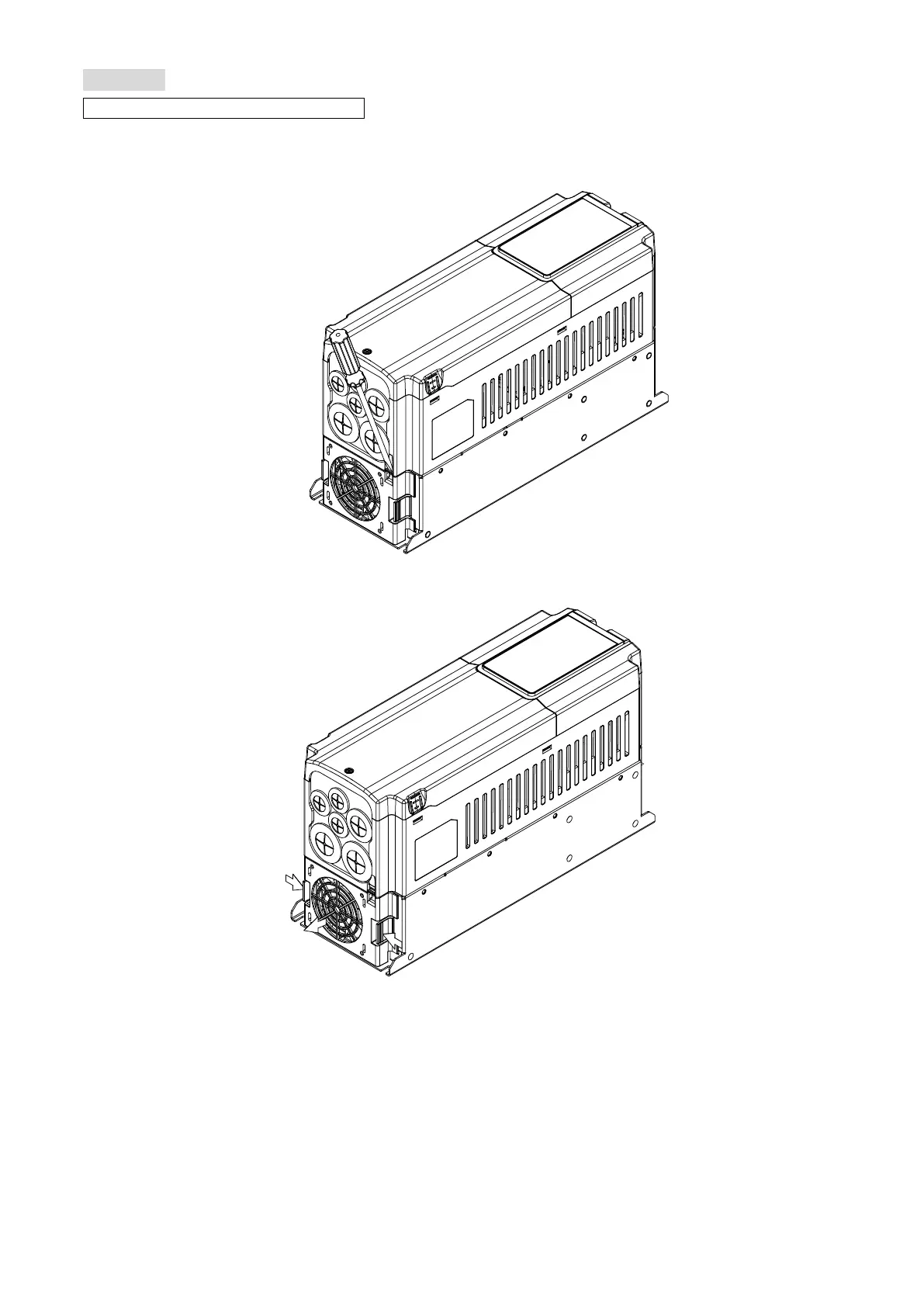

2. As shown in the figure below, press the tab on both sides of the fan to remove it.
Figure 9-3
