Chapter 10 Accessories | VP3000
637
⚫ Communication Card: EMC-COP01, CMC-EIP01, CMC-DN01, CMC-PD01, CMC-PN01

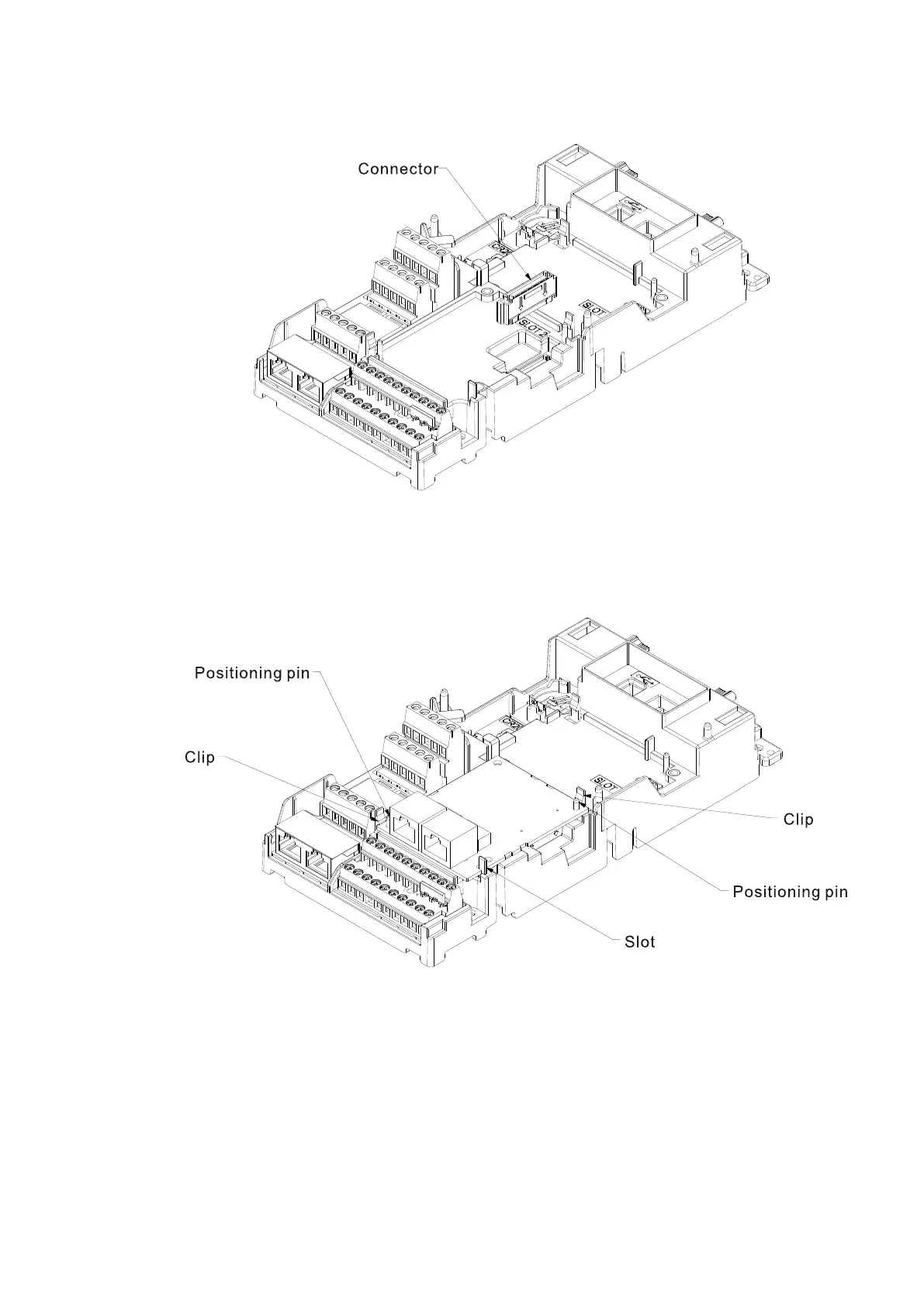

1. Aim the connection card at the connector on the control board and insert the card.
Figure 10-17
2. Put the terminals of the communication card facing up, aim the two holes on the card at
the positioning pins and press down to make the clips catch the option card.
Figure 10-18
