Chapter 1 An Overview before Use｜VP3000
4

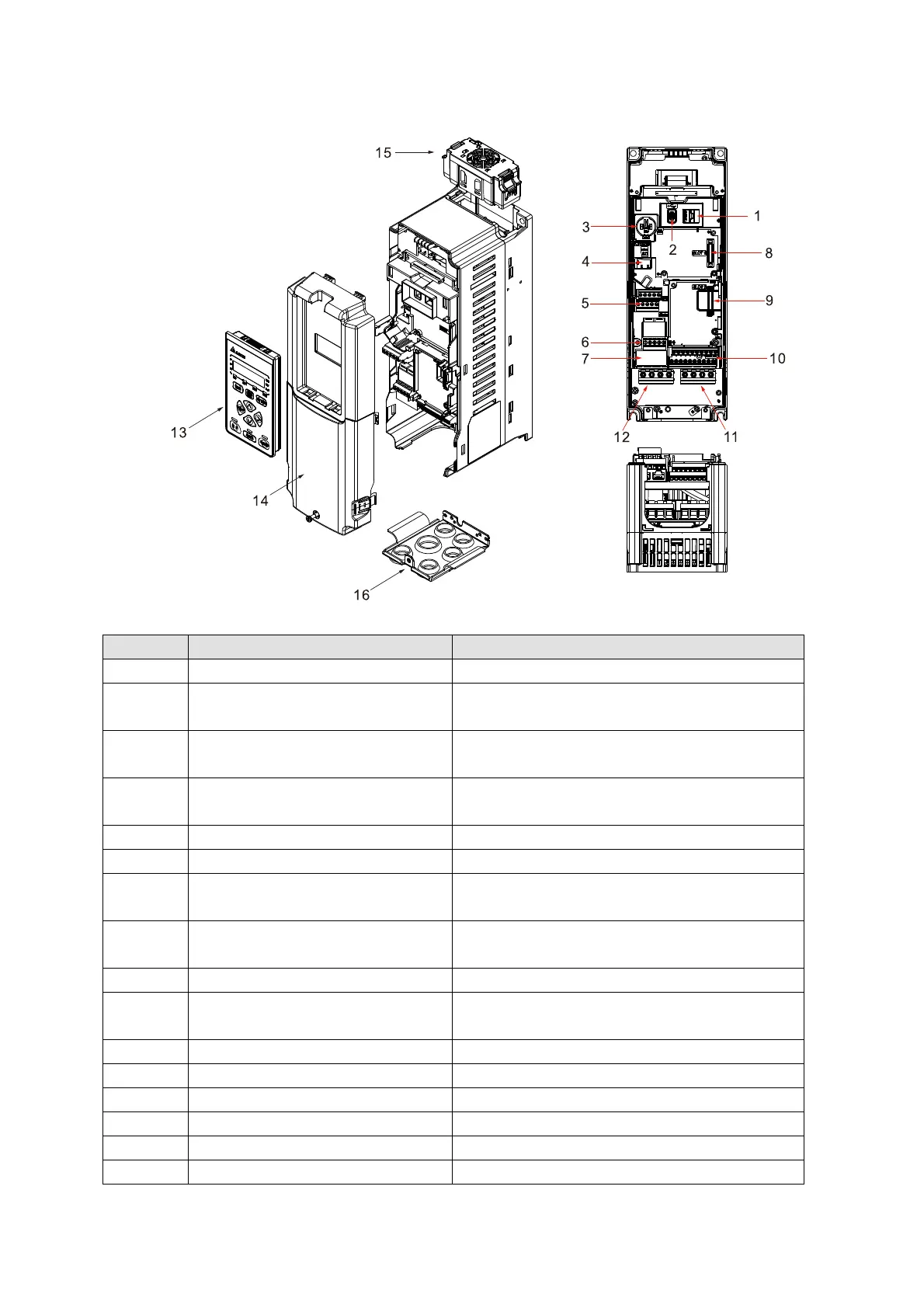

1-2 Part Names of the AC Motor Drive
Take frame A as an example.
Figure 1-2
Number Name Description
1 Digital keypad connection port To connect with digital keypad
2 USB-C port
To connect with operating software for
monitoring the AC motor drive
3 CR2032 battery holder
Need to install the battery first for using RTC
function
4 Micro SD slot
To install a memory card for storing historical
records of the AC motor drive
5 Control circuit terminals A Analog signal input / output terminals
6 Control circuit terminals B Relay output terminals
7 RJ45 port
To connect with operating software for
monitoring the AC motor drive
8 Extension card slot (SLOT 1)
A slot for digital input / digital output, analog
input / analog output extension card
9 Extension card slot (SLOT 2) A slot for communication extension card
10 Control circuit terminals C
Terminals of digital signals, communication
and STO function
11 Motor output terminals -
12 Main power input terminals -
13 Digital keypad To do the settings for the AC motor drive
14 Top cover -
15 Cooling fan -
16 Bottom cover -
Table 1-3
