Manuale operativo
CHORUS
Rev. 0 del 06/2012 23

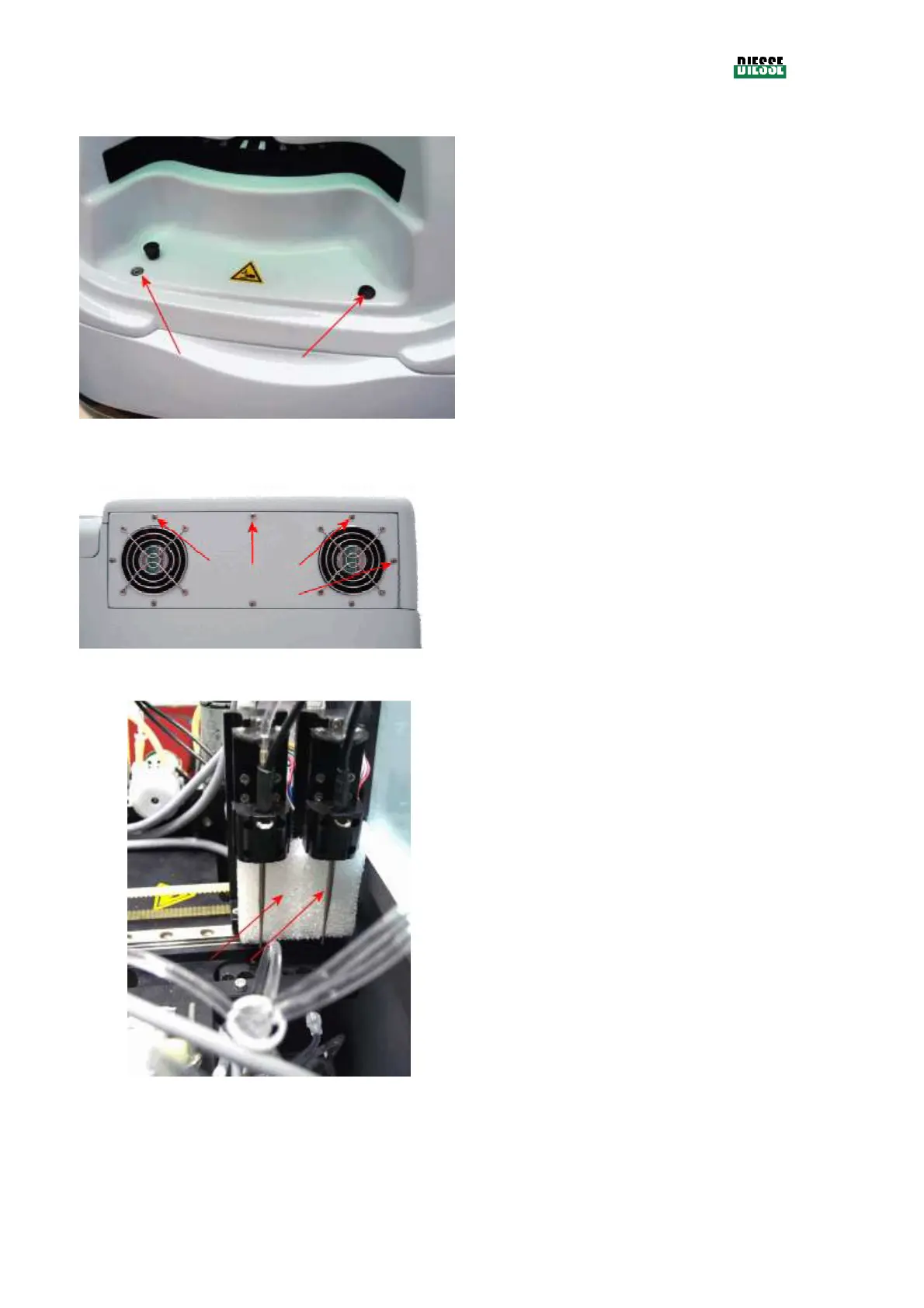

fig. 14
Before turning on the instrument, it is necessary
to remove the internal protections blocking the
mechanical movements of the washers, of the X
trolley and of the dispensers.
For this purpose, remove the superior part of the
cover and proceed as follows:
Remove the caps closing the anterior screws,
positioned under the loading strips area.
Unscrew the two socket heads (as indicated in
the figure) using the 3mm key.
Pay attention to the connector of the lid closure
sensor and disconnect it.
fig. 15
Remove the four allen screws positioned on the
back side of the cover around the cooling fans
(see the 4 red arrows) using the 2,5 mm key.
Lift the top part of the cover to reach the internal
part of the instrument.
Keep all the packing material for later use, in case the instrument has to be moved.
fig. 16
At this point remove the material which vertically
blocks the two dispensers.
