Stereo Monitoring Connections
The following diagram shows a basic stereo monitoring configuration with main and alternate speak-
ers, as well as a cue mix connection.

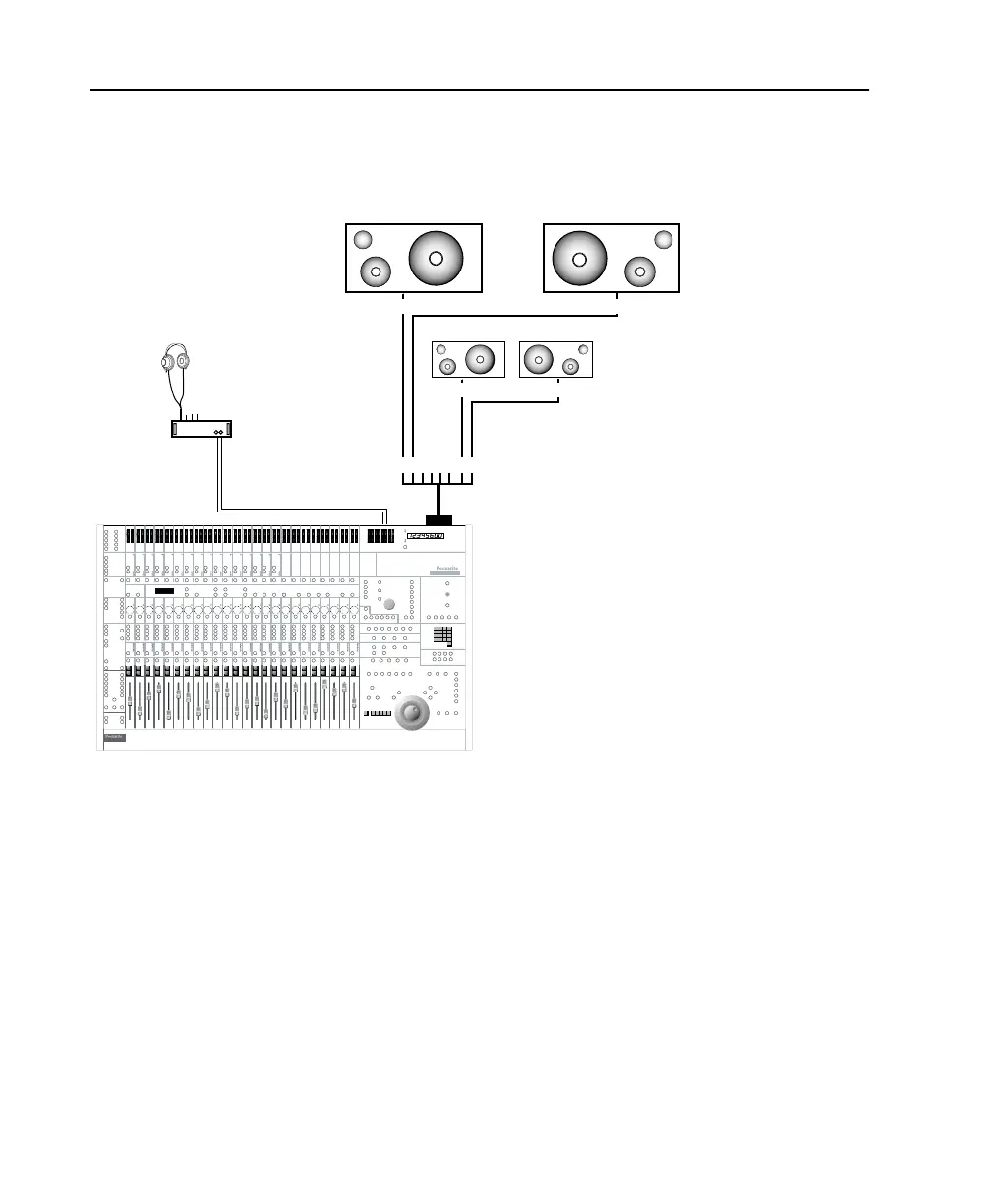

Figure 1. Control 24 monitor output connections for stereo mixing
digidesign
digidesign
Control24
SPEAKER OUT
LR
123456 78
Alternate stereo monitors
from AUX OUT L R
Cue mix
LR
