Chapter 6: Control Room Monitor Section 45
Chapter 6: Control Room Monitor
Section
Using the Control Room
Monitor Section
Control 24’s Control Room Monitor section
routes input from Pro Tools and other sources to
multiple sets and configurations of speakers and
headphones. This analog section provides mon-
itoring capabilities for multiple sources and des-
tinations.
Three adjustable sets of stereo outputs (MAIN,
ALT, and AUX outputs) are controlled from the
Control Room Monitor section.
Three stereo pairs of each Pro Tools audio inter-
face inputs and external source inputs can be se-
lected—in any combination—with dedicated
switches.
Other controls include ALT, MUTE, DIM and
MONO speaker select switches, built-in Talk-
back mic, and level controls for Talkback, Lis-
tenback, headphone and AUX outs.
Global monitoring modes are selectable—be-
tween stereo, LCRS Surround, and 5.1 Sur-
round—with dedicated switches.
Stereo Monitor Mode
Overview
In stereo mode, the Control Room Monitor sec-
tion lets you monitor in stereo, with the follow-
ing features:
• Source switching between six stereo sound
sources (Pro Tools Sources 1&2, 3&4, and
5&6; External Sources 1–3).
• Switching between MAIN or ALT monitors,
each with independently-adjustable levels.
• DIM, MUTE, and MONO monitoring modes.
• Talkback and Listenback controls.

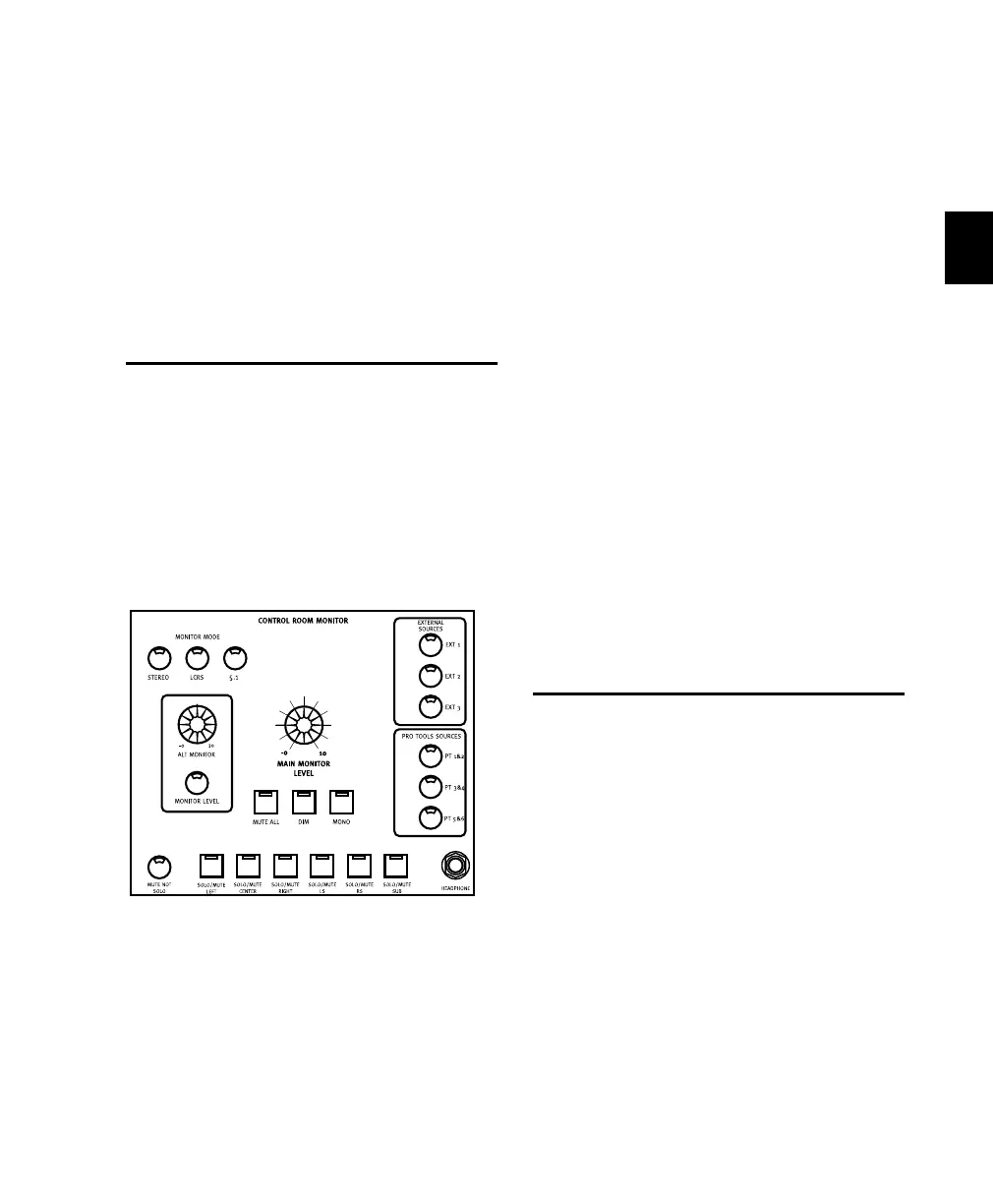

Figure 5. Control Room Monitor
