Chapter 6: Control Room Monitor Section 47
To engage an Input Source:
■ Press the switch in the Control Room Monitor
section that corresponds to the desired input
source.
If in “Single” source monitoring mode, only one
input source can be engaged at a time. To be
able to monitor more than one source input,
Control 24 must be in either “Multi” mode, or
Surround mode.
To select Source Monitoring Mode:
1 Press the Utility button.
2 Select “Monitor.”
3 Select “Stereo.”
4 Select either “Single” or “Multi” mode.
5 Select “Exit” or press the Utility button again
to return to normal operation.

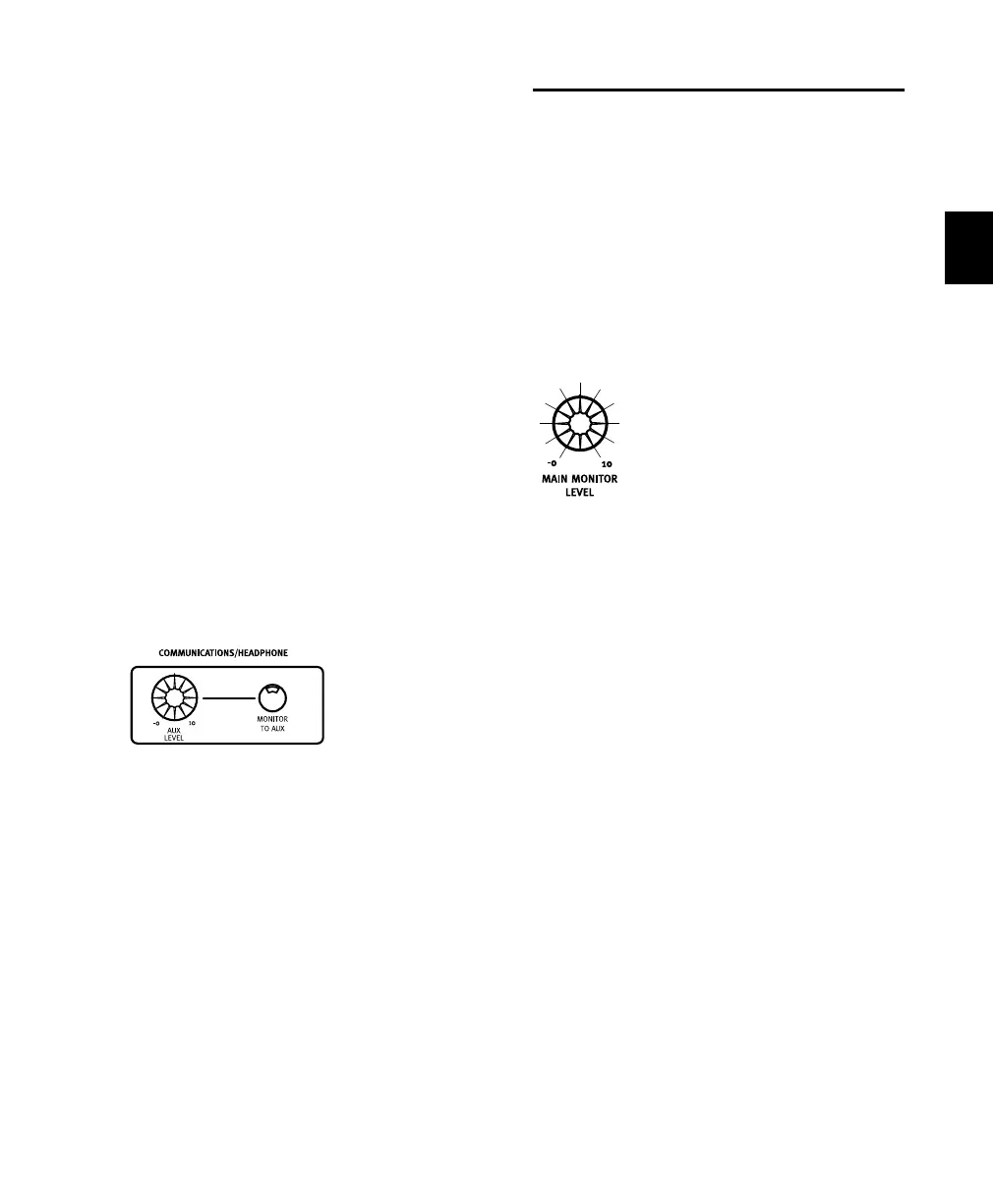

MONITOR TO AUX and AUX LEVEL
When enabled in stereo monitor mode, the
MONITOR TO AUX switch sends the current
Control Room Monitor mix to the AUX mix
outputs. This mix can be any combination of
sources as selected in the Control Room Moni-
tor section, and is adjusted with the AUX LEVEL
control.
Control Room Monitor Level
Controls
The Control Room Monitor section’s level con-
trols adjust the volume of your outputs.
Main Monitor Level Control
In Stereo Monitor mode, this rotary control ad-
justs the level of the main stereo Control Room
Monitor level
.
In Surround Monitor modes, this rotary control
acts as a level master for the entire Surround ma-
trix (outputs 1 through 6).
ALT Monitor Level Control
Control 24 can route output ALT Monitor for
Stereo and Surround.
About the Monitor Level Controls
The Main and Alt level control circuits are digi-
tally-controlled to insure that perfect accuracy is
achieved between all sides of multichannel pro-
gram material. When turning the Main or Alt
monitor pots quickly, it is possible to jump from
one level setting to another.
To maintain perfect level accuracy from channel
to channel, the digitally controlled circuit takes
a moment to adjust itself, so use caution when
moving the level control quickly. You may also
hear steps when adjusting the monitor level as
the circuit is changing the gain in fixed incre-
ments. This will be more noticeable with pro-
Monitor To Aux
Control_24.book Page 47 Wednesday, January 17, 2001 2:51 AM
