DigiDesign Control 24 - 5.1 Monitoring Example

Control 24 Reference Guide 24
5.1 Monitoring Example

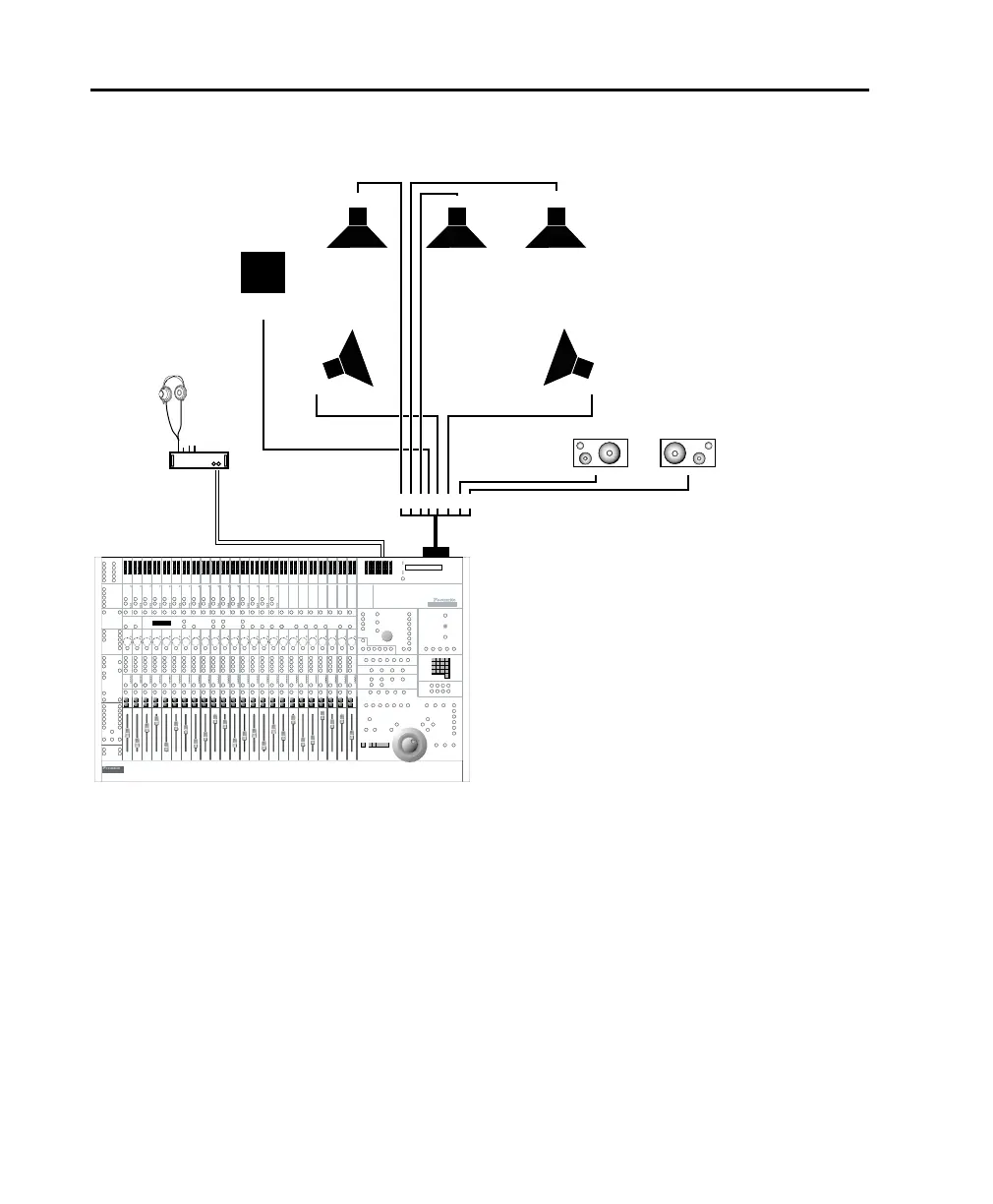

Figure 3. Control 24 monitoring output connections for 5.1 mixing, SMPTE/ITU format
digidesign
digidesign
digidesign
Control24
Control24
SPEAKER OUT
LR
C
S
Ls Rs
123456 78
Alternate stereo monitors
from AUX OUT L R
Cue mix
