DigiDesign Control 24 - Chapter 5: Surround Setups; Surround Monitoring Mode Connections

Chapter 2: Installing Control 24 25
LCRS Monitoring Example

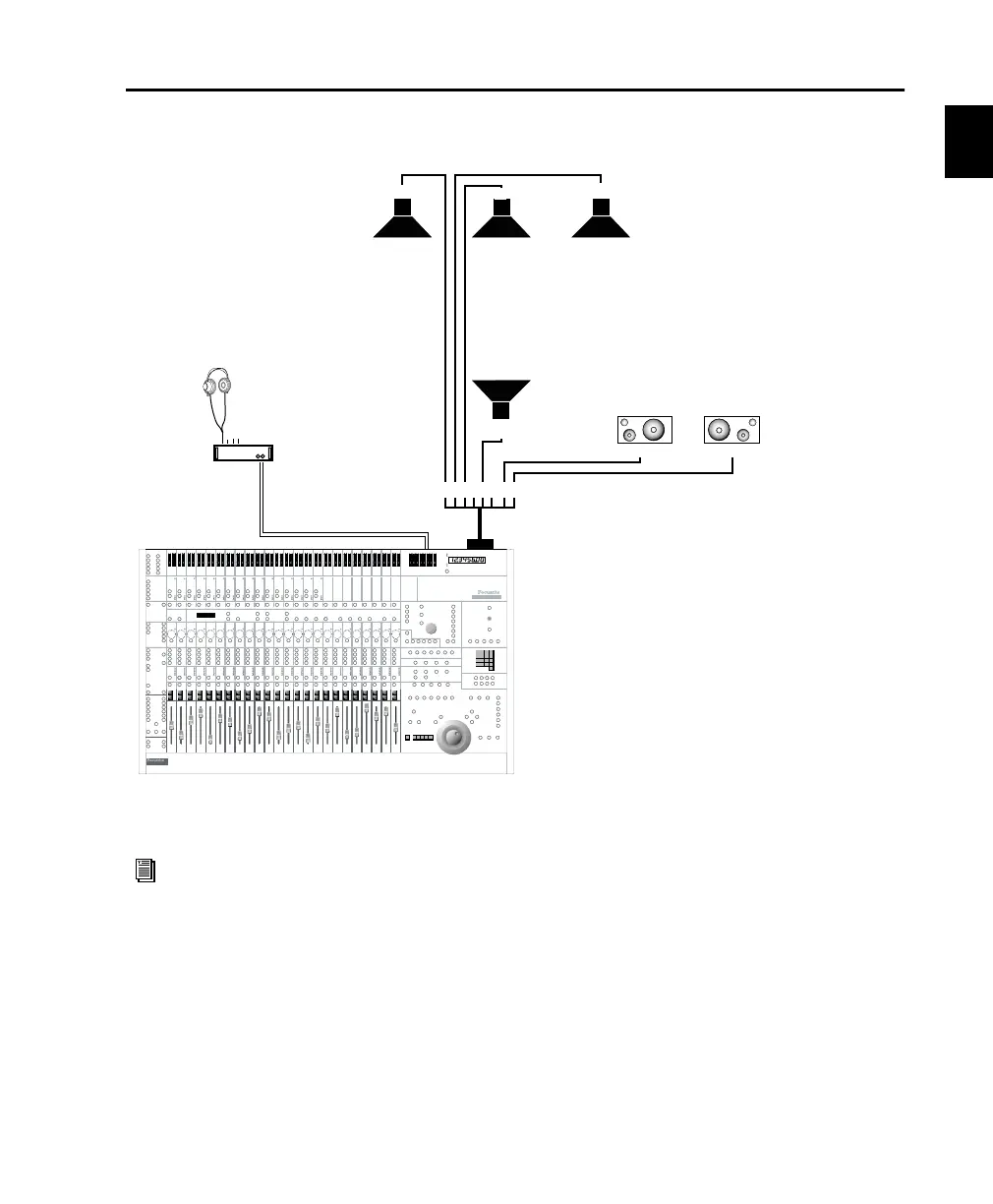

Figure 4. Control 24 monitor output connections for LCRS mixing
digidesign
digidesign
digidesign
Control24
Control24
SPEAKER OUT
LR
C
123456 78
Alternate stereo monitors
from AUX OUT L R
Cue mix
S (often split to
two speakers)
LR
See also “5.1 Track Layouts, Routing, and Metering” on page 52.
