Dräger Perseus A500 - Volume-Controlled Ventilation

Instructions for use Perseus A500 SW 2.0n 265
Principles of operation
Volume-controlled ventilation
Compliance correction
The applied VT is corrected by the determined
breathing hose compliance, i.e., an additional
volume is delivered in order to ensure the
application of the volume to the patient. The
applied VT is also corrected by the sampling flow
of the built-in patient-gas measurement module as
soon as CO
2 respiratory phases are detected.

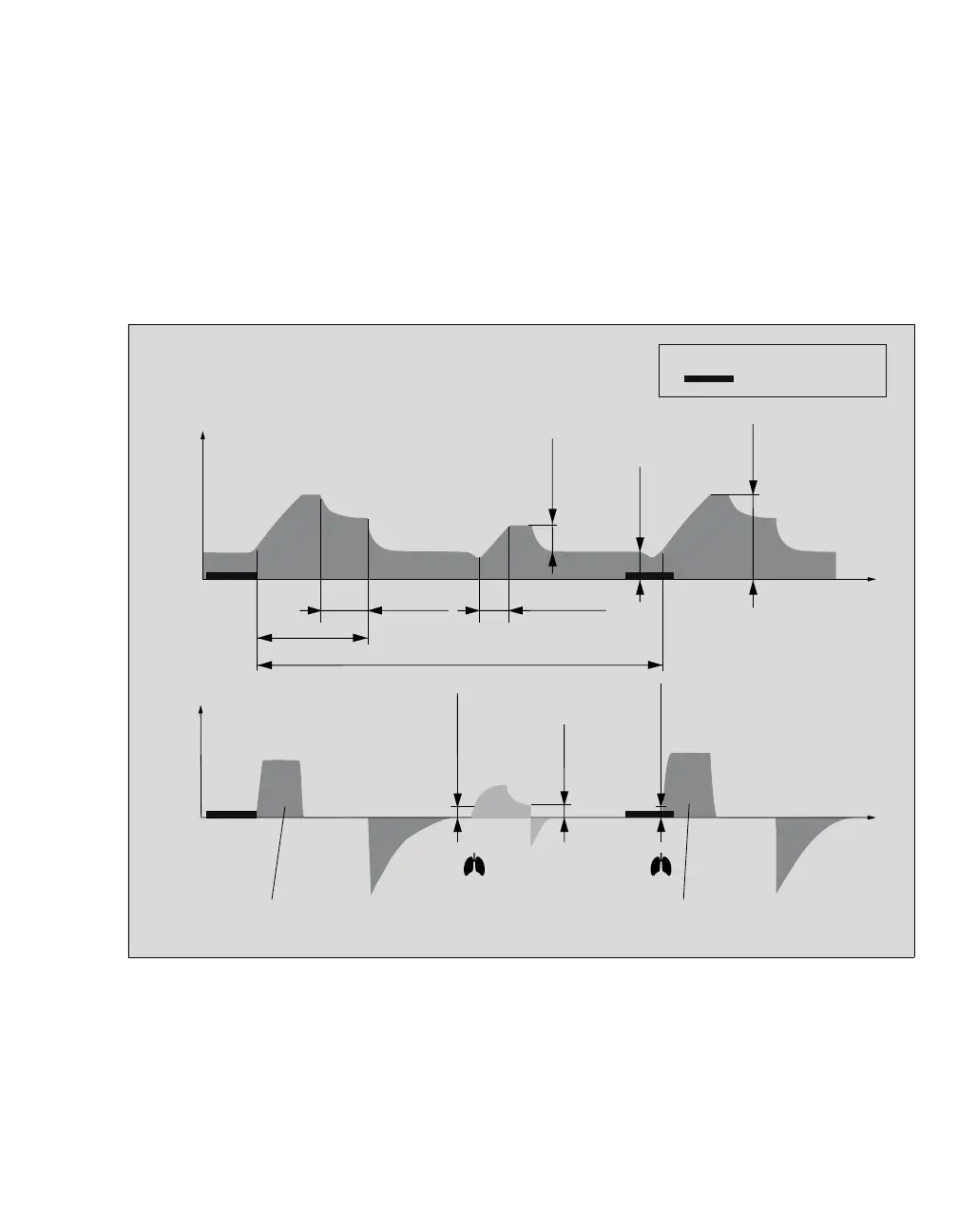

VC
VC - CMV
– Volume-controlled
– Pressure-limited
– Time-controlled
– Machine-triggered
– Constant inspiratory flow
10558
7LPH
7LPH
7ULJJHUZLQGRZ
LQVS
PDFKLQHWULJJHUHGEUHDWK SDWLHQWWULJJHUHGEUHDWK
Flow
Paw
Pmax
PEEP
%Tplat
Ti
1/RR
Trigger Trigger
Insp. term.
Slope
∆Psupp
