2-12
Connecting Current Probes, continued
PR (B Series)
current probes

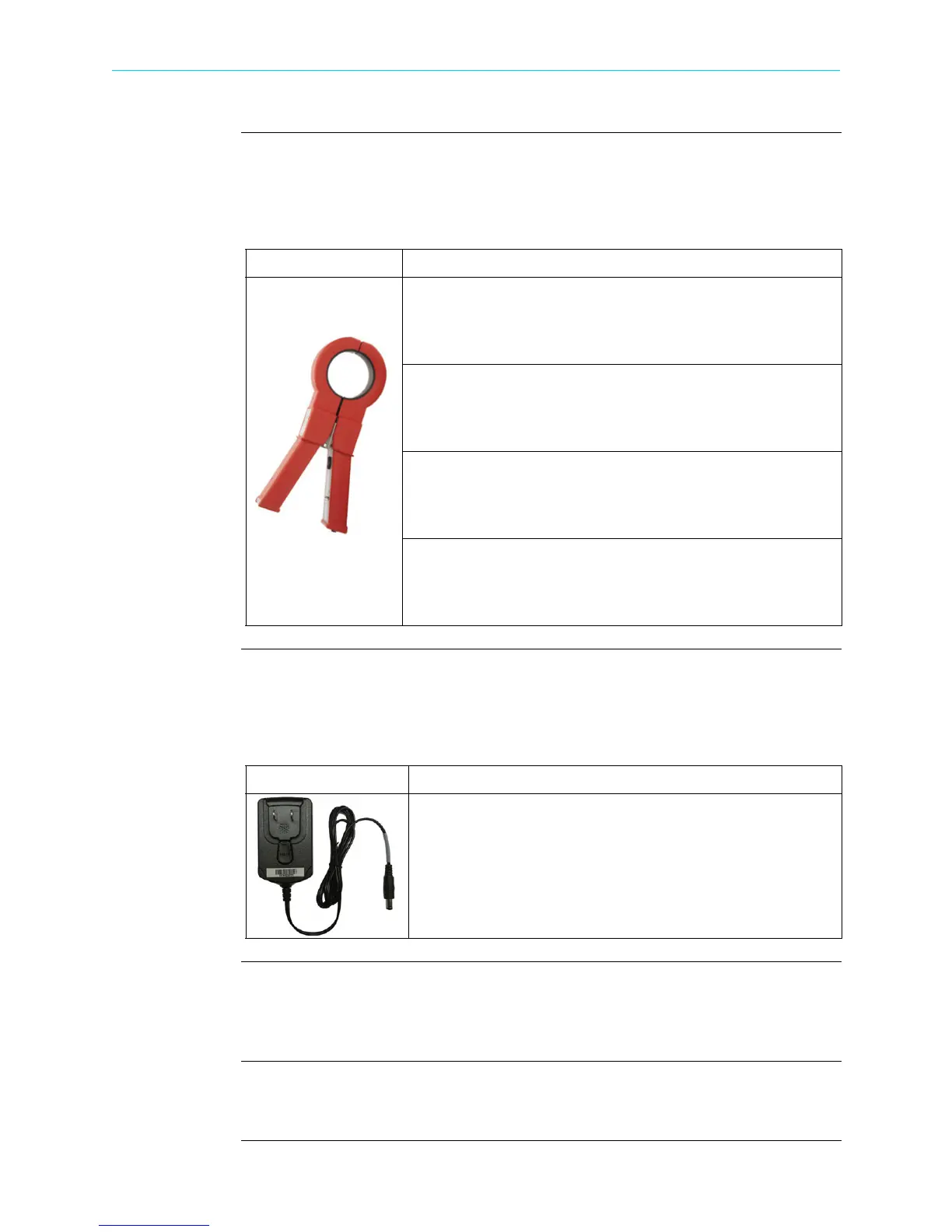

Actual photo of PR (B Series) probe is shown below as aid in probe identification.
PR150/SP1B and PR1500/SP7B require an external power supply while PR150/SP2B
and PR1500/SP8B are battery powered. Contact Dranetz Customer Service Department
for information on pricing and availability.
External power
supply for
PR150/SP1B &
PR1500/SP7B
The PR150/SP1B and PR1500/SP7B current probes require an external 9V power
supply, actual photo shown below. Each probe can be powered by a separate adapter or
by one adapter and an optional RR/PS/4A adapter cable which allows the connection of
4 PR series probes to a single 9VDC source.
Battery supply
for PR150/SP2B
& PR1500/SP8B
The PR150/SP2B and PR1500/SP8B current probes are supplied with a 9V battery and
will operate on battery power typically for approximately 75 hours of continuous
operation.
Reference
material
Refer to Dranetz User Instructions titled PR150/SP1, PR150/SP2, PR1500/SP7,
PR1500/SP8 AC/DC Current Probes, P/N 899216.
PR (B Series) Probe Description
Model No.
Current Range
Dranetz Part No.
Installation Category
: PR150/SP1B (requires 9V adapter)
: 15A to 150A AC/DC
: 118290-G1
: 600V, CAT III
Model No.
Current Range
Dranetz Part No.
Installation Category
: PR150/SP2B (9V battery powered)
: 15A to 150A AC/DC
: 118291-G1
: 600V, CAT III
Model No.
Current Range
Dranetz Part No.
Installation Category
: PR1500/SP7B (requires 9V adapter)
: 150A to 1500A AC/DC
: 118292-G1
: 600V, CAT III
Model No.
Current Range
Dranetz Part No.
Installation Category
: PR1500/SP8B (9V battery powered)
: 150A to 1500A AC/DC
: 118293-G1
: 600V, CAT III
9VDC Adapter Description
Model No.
Dranetz Part No.
Input Voltage
Input Plug Type
Output
: PR9VUA
: 118073-G1
: 100-240 VAC, 50/60 Hz
: US, Euro, UK, Australia
: +9VDC, 1.11A
