CH 2/ Voltage Measurement Cables and Current Probe Connections
DRANFLEX
XLB & MHB
current probes

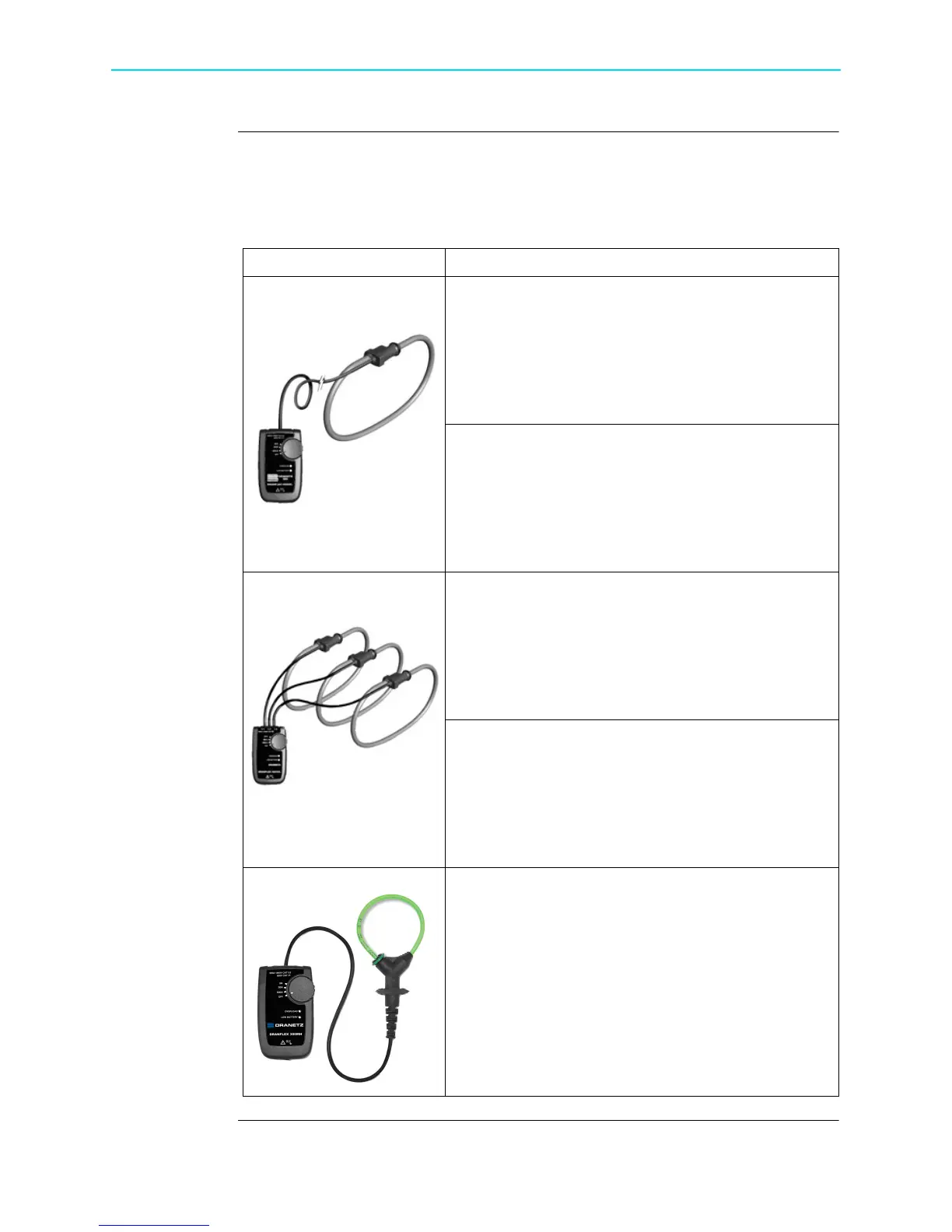

Actual photos of DRANFLEX XLB and MHB Series probes are shown below as aid in
probe identification. These probes are available in different sizes, allowing current
measurements in Single Phase or 3 Phase circuits. Contact Dranetz Customer Service
Department for information on pricing and availability.
DRANFLEX Probe Description
Single Phase Probe
Model No.
Current Range
Dranetz Part No.
Installation Category
: DRANFLEX3000XLB
: 30/300/3000A
: 118433-G1 (24 inches)
: 118434-G1 (36 inches)
: 118435-G1 (48 inches)
: 1000V, CAT III
: (600V, CAT IV)
Model No.
Current Range
Dranetz Part No.
Installation Category
: DRANFLEX6000XLB
: 60/600/6000A
: 118439-G1 (24 inches)
: 118440-G1 (36 inches)
: 118441-G1 (48 inches)
: 1000V, CAT III
: (600V, CAT IV)
3 Phase Probe
Model No.
Current Range
Dranetz Part No.
Installation Category
: DRANFLEX3003XLB
: 30/300/3000A
: 118436-G1 (24 inches)
: 118437-G1 (36 inches)
: 118438-G1 (48 inches)
: 1000V, CAT III
: (600V, CAT IV)
Model No.
Current Range
Dranetz Part No.
Installation Category
: DRANFLEX6003XLB
: 60/600/6000A
: 118442-G1 (24 inches)
: 118443-G1 (36 inches)
: 118444-G1 (48 inches)
: 1000V, CAT III
: (600V, CAT IV)
Single Phase Probe
Model No.
Current Range
Dranetz Part No.
Installation Category
: DRANFLEX300MHB
: 3/30/300A
: 118430-G1 (6 inches)
: 118431-G1 (8 inches)
: 118432-G1 (12 inches)
: 1000V, CAT III
: (600V, CAT IV)
