Example:
S1 = 3 = 3 x 10 = 30 and
S2 = 4 = 4 x 1 = 4
→CANbusaddress=S1+S2=30+4=34
6.2.2 Setting the controller type and other functions
Setting of the controller type

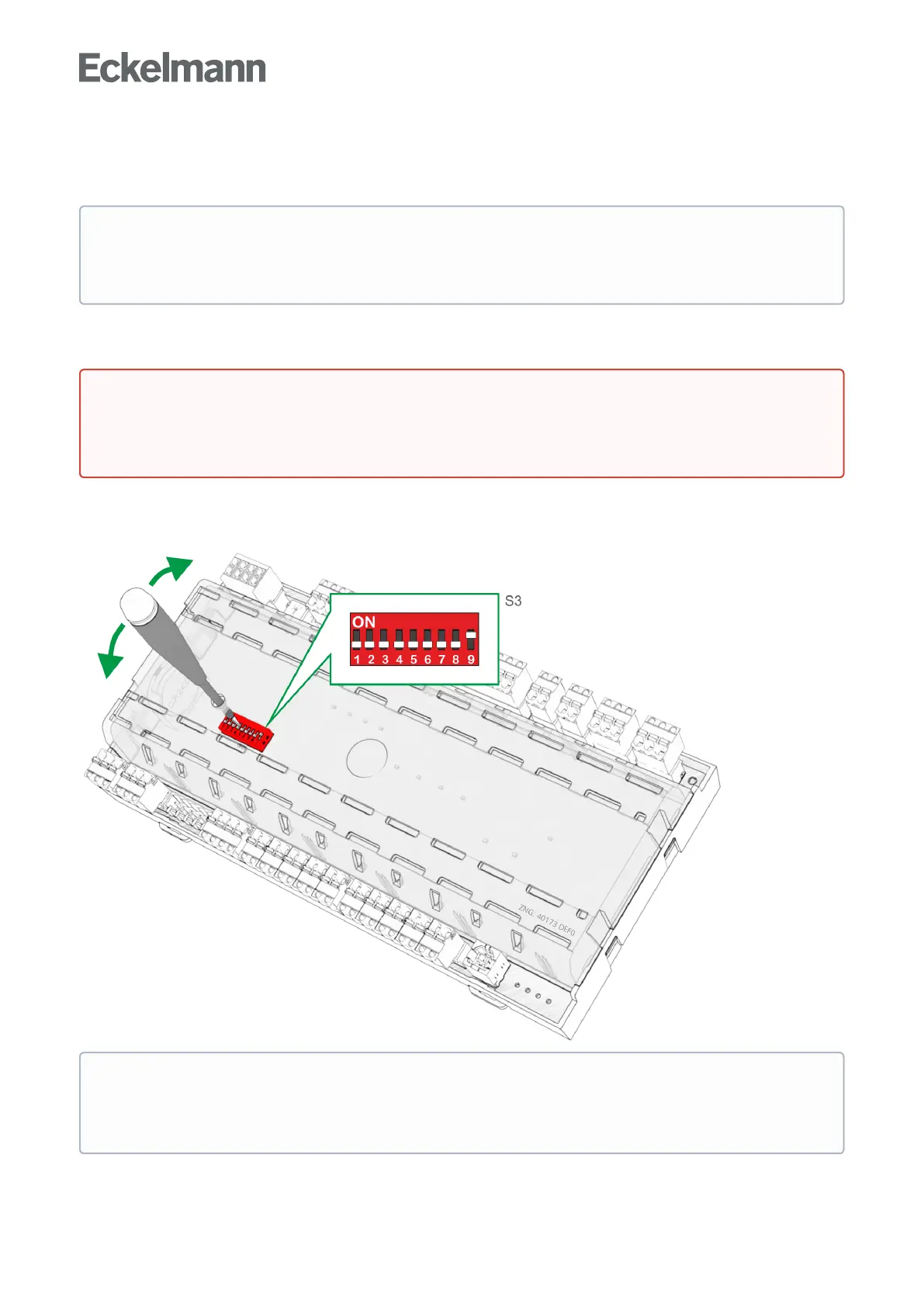

The required controller type can be set via the DIP switch S3 by adjusting the coding switches 1..9 with a thin
screwdriver(D=2mm)throughaholeinthecasecover:
The case controller does not accept the settings on the decade switches S1andS2 until after the
controller has been briefly disconnected from the power supply! In the case of case controllers that are
installed in a switch cabinet, the CAN bus address has been set by the manufacturer. However, it can
be subsequently adjusted.

DANGER
Warning about dangerous electrical voltage!
Danger of electric shock!TheDIPswitchS3mayonlybeadjustedwhendisconnected from the
power supply. The changes are not applied until the next time the controller is switched on.

ATTENTION
Caution: data loss!Allparametersareresettotheirfactorysettingsifthecontrollertypeischangedor
due to a first start (see chapter First start / reset controller to factory settings)!

