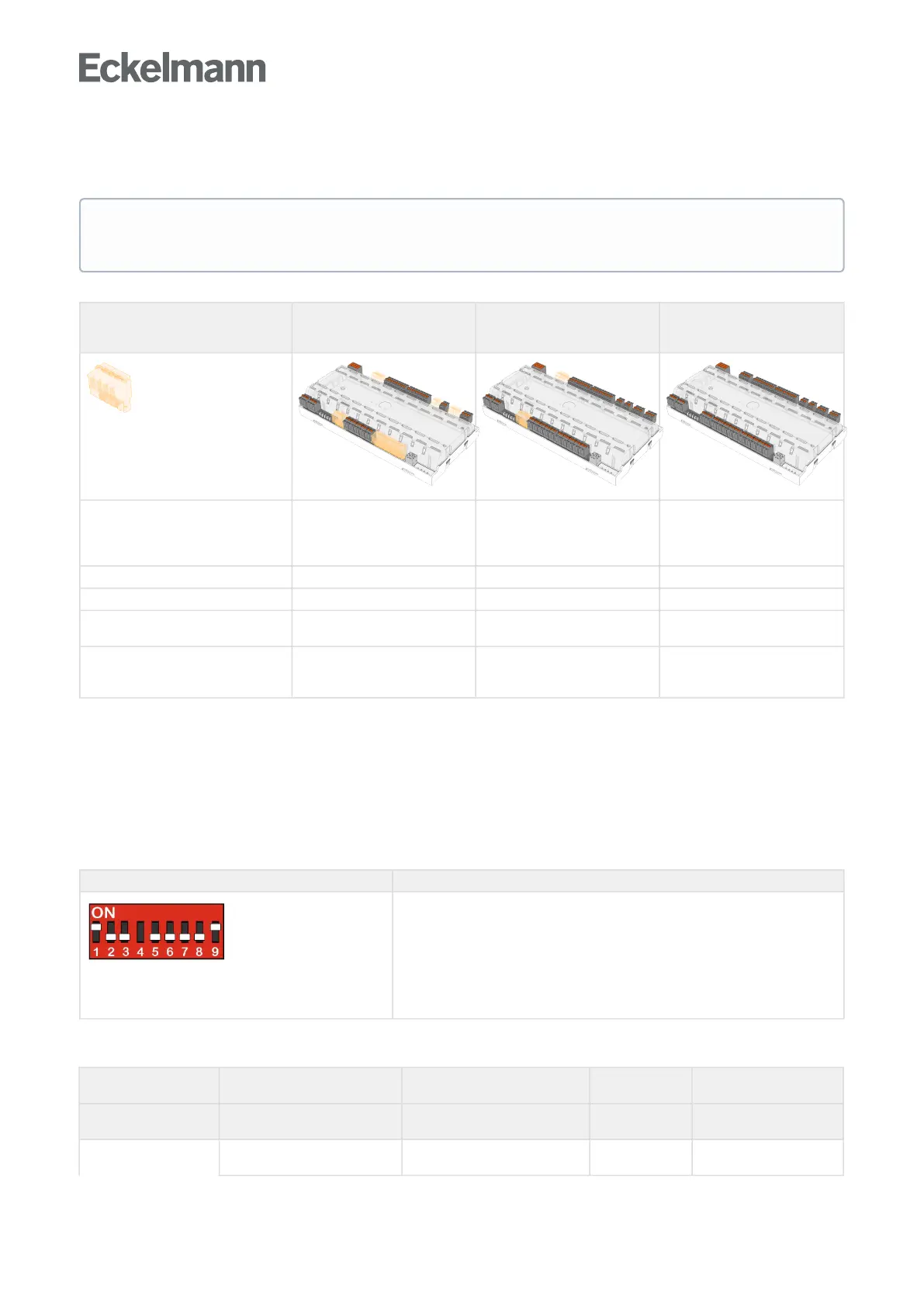

9 Menu Structure UA 4xx E
The range of functions provided below describes the complete design UA 410 E AC in two-zone operation; for
more details, see chapter Versions.
Distinguishing features UA 4xx E
UA 401 E CC
UA 400 E CC UA 410 E AC
(complete design)
= terminals not mounted
For details, see chapter Terminal
diagram.
Supported temperature zones
Single-zone operation Single-zone operation
Two-zone operation
Single-zone operation
Two-zone operation
Standalone operation
Number of temperature sensors 5 10 10
Alarm relay - 1 1
Analogue inputs / outputs
-
- 2/2
Real-time clock and archive memory
for data recording
-
- •
9.1 Controller type UA 121 E - menu tree
DIP switch S3 UA 121 E
1: ON
2: OFF
3: OFF
4: ON/OFF = Master / salve mode ON/OFF
5: OFF
6: ON/OFF = Funktionsweise der Analogausgänge 0..10 V
7..8: OFF
9: ON
Main Menu Submenu 1 Submenu 2 Menu No. Menu Name
Actual Values 1 ACT VALUES
Temperature Sensors 1-1 TEMPERATUR
Functions and parameters that are not available in single-zone operation are (not always) marked
"Only two-zone operation" or similar.

