ECKELMANN Case Controller UA 4 E Series - Store Computer CI 3 X00; Operator Terminal al 300

Firmware V3.13
21.04.2021
184/466
8.3.2.2 Store computer CI 3x00 / operator terminal AL 300
The main menu of the controller is called in the store computer or operator terminal as follows:

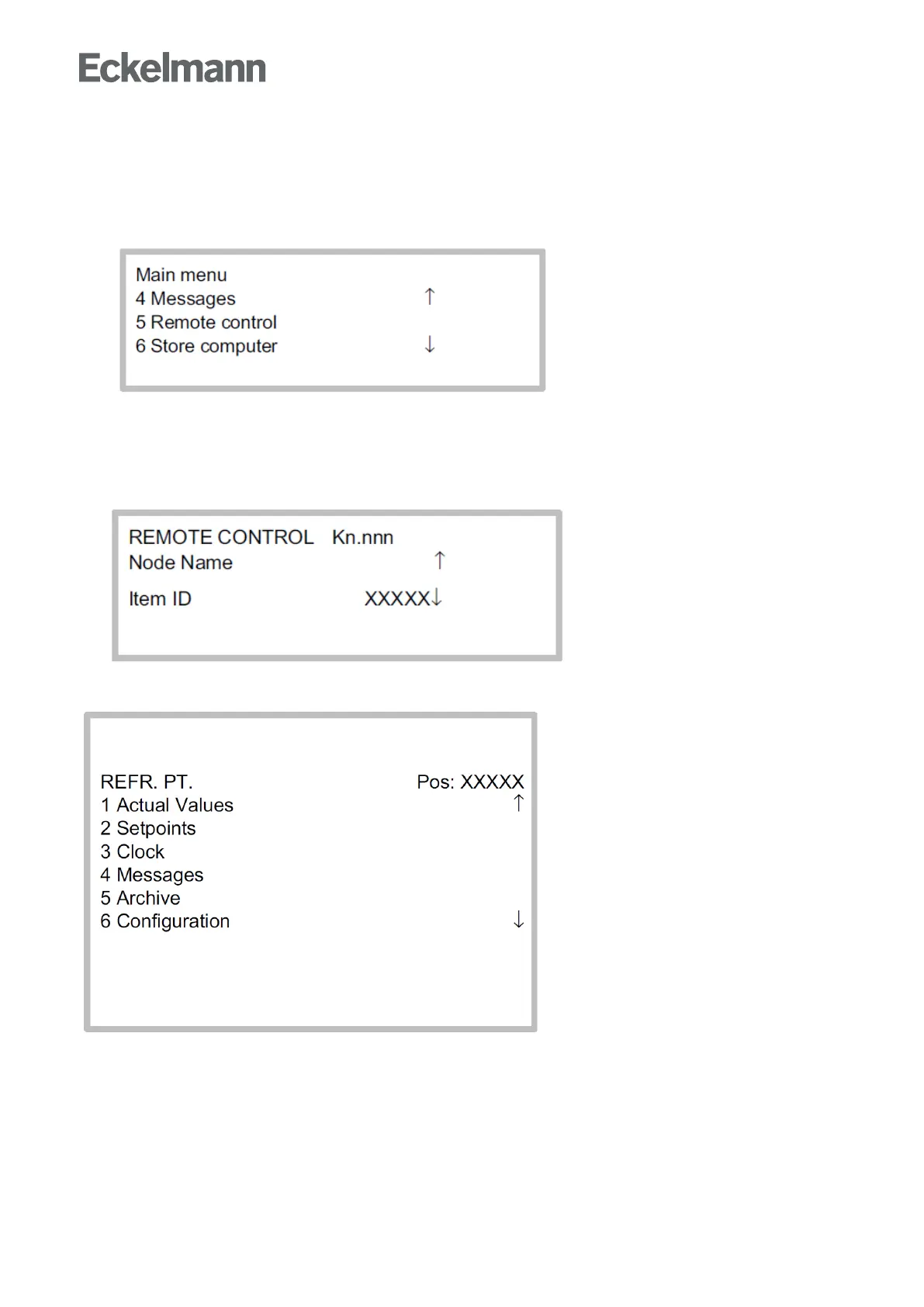

Step 1: Select the submenu "5 Remote control" in the main menu (see graphic).
Step 2:Selecttherequiredcontrollerusingthecursorbuttons(↑)und(↓)orbyinputoftheCANbusaddress
(node number nnn) using the digit buttons.
Thereby, the following screen is displayed:
Step 3: The main menu of the controller is then displayed in the terminal by tapping the ENTER button
